Littlefuse Analogue Thermally Protected Varistor 25D TMOV For Inverters

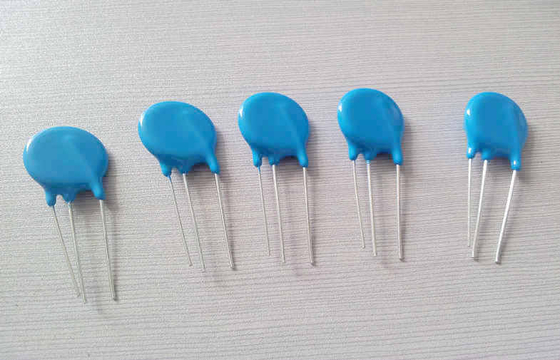

Large Image : Littlefuse Analogue Thermally Protected Varistor 25D TMOV For Inverters

Product Details:

Place of Origin:	Dongguan，Guangdong,China
Brand Name:	UCHI
Certification:	UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL
Model Number:	TMOV 25DT621K

Payment & Shipping Terms:

Minimum Order Quantity:	5000PCS
Price:	Negotiable
Packaging Details:	Bulk
Delivery Time:	5-7 days
Payment Terms:	T/T,Paypal,Western Union,Money gram
Supply Ability:	5000,000,000PCS Per Month

Contact Now

Detailed Product Description

Highlight:	high voltage varistor

Littlefuse Analogue Thermally Protected Varistor 25D TMOV For Inverters

Quick Detail:

1)RoHS compliant and Lead–free available

2)Patented integrated thermal protection device

3)Designed to facilitate compliance to UL1449 3nd Edition for SPD product

4)High peak surge current rating up to 10kA

5)Wave solderable

6)Standard lead form and spacing option

7)Low leakage

8)-55°C to +85°C operating temp range

9)Three-lead version available for indication purposes

Description:

TMOV thermally protected varistors represent a new development in integrated circuit protection. Both versions are comprised of radial leaded MOVs (Metal Oxide Varistors) with an integrated thermally activated element designed to open in the event of overheating due to the abnormal overvoltage, limited current, conditions outlined in UL 1449.

The iTMOV varistor differs from the varistor by the inclusion of a third party lead for the purpose of indicating that the MOV has been disconnected from the circuit. This lead facilitates connection to monitoring circuitry.

The TMOV varistors offer quick thermal response due to the close proximity of the integrated thermal element to the MOV body.
The integrated configuration also offers lower inductance than most discrete solutions resulting in improved clamping performance to fast over-voltage transients.

Additionally, TMOV varistors are wave solderable, thus simplifying end product assembly by reducing the expense and rework associated with hand soldering operations.

The TMOV varisors are both recognized surge suppression components to UL 1449.
The TMOV varistor’s integrated thermal element, in conjunction with appropriate enclosure design, helps facilitate TVSS module compliance to UL 1449 for both cord connected and permanently connected applications.
TMOV and iTMOV varistors are compatible for use with industry standard wave-soldering processes or recommended hand-soldering methods.

Applications:

• SPD Products

• AC Panel Protection Modules

• AC Line Power Supplies

• Surge Protected Strip Connectors

• AC Power Meters

• Relocatable AC Power Taps

• GFCI (Ground Fault CurrentInterupter)

• UPS (Uninterruptable Power Supply)

• White Goods

• Plug-in SPD

• Inverters

• AC/DC Power Supplies

Specifications:

Part Number	Acrms(V)	DC(V)	V 1.0mA(V)	VC(V)	IP(A)	1 time(A)	2 time(A)	10/1000μs	2ms	(W)	(A)	@1KHz(Pf)
25D(T,F)151K	95	125	150(135-165)	250	150	15000	12000	160	105	1.2	20	4300
25D(T,F)181K	115	150	180(162-198)	300	150	15000	12000	175	120	1.2	20	3500
25D(T,F)201K	130	170	200(185-225)	340	150	15000	12000	210	150	1.2	20	3200
25D(T,F)221K	140	180	220(198-242)	365	150	15000	12000	230	165	1.2	20	2900
25D(T,F)241K	150	200	240(216-264)	395	150	15000	12000	255	180	1.2	20	2650
25D(T,F)271K	175	225	270(243-297)	455	150	15000	12000	285	205	1.2	20	2400
25D(T,F)301K	190	250	300(270-330)	500	150	15000	12000	310	220	1.2	20	2100
25D(T,F)331k	210	275	330(297-363)	550	150	15000	12000	325	231	1.2	20	1900
25D(T,F)361K	230	300	360(324-396)	595	150	15000	12000	340	240	1.2	20	1750
25D(T,F)391K	250	320	390(351-429)	650	150	15000	12000	360	250	1.2	20	1600
25D(T,F)431K	275	350	430(387-473)	710	150	15000	12000	440	310	1.2	20	1500
25D(T,F)471K	300	385	470(423-517)	775	150	15000	12000	490	345	1.2	20	1400
25D(T,F)511K	320	415	510(459-561)	845	150	15000	12000	530	370	1.2	20	1250
25D(T,F)561K	350	460	560(504-616)	920	150	15000	12000	560	390	1.2	20	1150
25D(T,F)621K	385	505	620(558-682)	1025	150	15000	12000	590	410	1.2	20	1050
25D(T,F)681K	420	560	680(612-748)	1120	150	15000	12000	620	430	1.2	20	950
25D(T,F)751K	460	615	750(675-825)	1240	150	15000	12000	630	440	1.2	20	850
25D(T,F)781K	485	640	780(702-858)	1290	150	15000	12000	675	470	1.2	20	800
25D(T,F)821K	510	670	820(738-902)	1355	150	15000	12000	690	480	1.2	20	750
25D(T,F)911K	550	745	910(819-1001)	1500	150	15000	12000	715	500	1.2	20	700
25D(T,F)102K	625	825	1000(900-1100)	1650	150	15000	12000	750	505	1.2	20	650
25D(T,F)112K	680	895	1100(990-1210)	1815	150	15000	12000	780	550	1.2	20	600
25D(T,F)122K	700	990	1200(1080-1320)	1880	150	15000	12000	840	590	1.2	20	550
