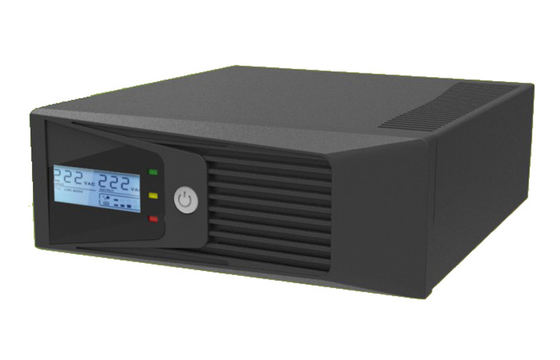

High Quality Digital LCD Display Modified Sine Wave Home Power Inverter 2000va
Specifications:
|
Model No.
|
IVP500
|
IVP1000A
|
IVP1000B
|
IVP2000
|
|
Nominal Power
|
300W
|
600W
|
600W
|
1200W
|
|
Input
|
|
Nominal Voltage
|
110/120VAC or 220/230/240VAC
|
|
Voltage Range
|
90-145VAC or 170-280VAC(narrow range)
|
|
50-145VAC or 90-280VAC(wide range)
|
|
Output
|
|
Voltage(battery mode)
|
120VAC or 230VAC
|
|
Frequency
|
50Hz±0.1Hz
|
|
Waveform Type
|
Simulated sine wave
|
|
Power Factor(AC to AC)
|
＞95%
|
|
Power Factor(DC to AC)
|
＞80%
|
|
Transfer Time
|
8ms(narrow)
|
|
Battery
|
|
Type
|
No internal battery-uses external battery system
|
|
Nomal Voltage
|
12VDC
|
24VDC
|
12VDC
|
24VDC
|
|
Charging Current
|
8A
|
6A
|
10A
|
|
LED Indicators
|
|
Utility Mode
|
Green lighting
|
|
Battery Mode
|
yellow lighting
|
|
Overload/fault
|
Red lighting
|
|
Audible Alarm
|
|
Low battery
|
Sounding every 2 seconds
|
|
Overload
|
Sounding every second
|
|
Fault
|
Continuously sounding
|
|
Conduction/RFI
|
GB7260.2/EN50091-2CLASS A
|
|
Environmental
|
|
Operating Environment
|
0-40℃
|
|
Relative Humidity
|
0-90%(non-condensing)
|
|
Physical
|
|
Net Weight(KG)
|
1.7
|
1.9
|
2
|
2.5
|
|
Dimension,D X W X H(mm)
|
260 X 224 X 80
|
|
*Specifications are subject to change without prior notice.
|
Home Power Inverter 2000va Description:
1. Modiified sine wave output
2. Electricity-Battery automatic conversion
3. Different choice of input voltage range
4. High-frequency digital technology, MCU control, more stable capablity
5. High efficiecy rate of DC - AC conversion, minimize energy loss
6. Tower design, can both stand up and lay down, can be placed flexibly
7. Equiped with super-charger, the maximum electricity can reach 8 A, and can charge for batteries with electricity over 100 AH
8. Intelligent charge control, can ensure the effective charging,but can not avoid excessive charging
9. Ultra-load protection
10. Restoration of electricity, automatically activated
11. Offline-charging functions (when the utility comes to normal, even if it is not turned on, the machine can still charge the battery)
12. Multi-functional LED indicator light and alarm device
13. Widely used in light, fan, or other small power home appliance
14. Small shape and light weight design,easily to carry and installation
Home Power Inverter 2000va Competitive Advantage:
Cheap price and easy to install,can solve the problem of power cutting off immediately,its small shape won’t need much space,and with no noises when it works.
The home inverter can be designed with your requirements such as color,logo,shape,display type and rear panel.
