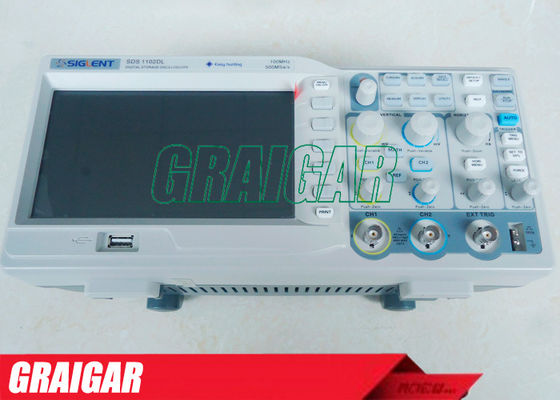

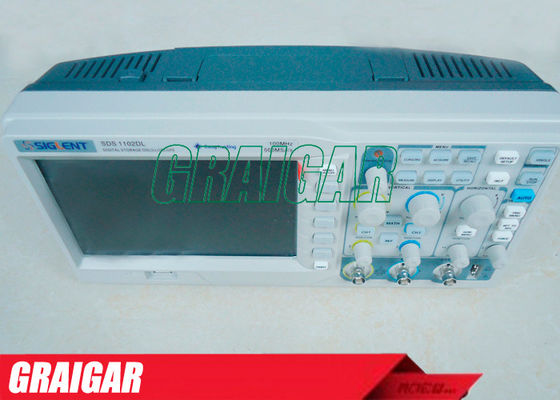

| Model/Index |
SDS1202DL |
SDS1102DL |
SDS1052DL |
SDS1022DL |
| Bandwidth |
200MHz |
100MHz |
50MHz |
25MHz |
| Channel |
2 channels+1 ext trig |
| Real Time Sampling |
Single Channel:500MSa/s,Double Channel:250MSa/s |
| Equivalent Sampling Rate |
50GSa/s |
| Memory Depth |
Single Channel:32Kpts,Double Channel:16Kpts |
| Rise time |
<1.7ns |
<3.5ns |
<7ns |
<14ns |
| Input Impedance |
1MΩ||17pF |
| Sec/div Range |
2.5ns/div-50s/div |
5ns/div-50s/div |
25ns/div-50s/div |
| Vertical Sensitivity |
2mv-10v/div(1-2-5 sequence) |
| Vertical Resolution |
8bit |
| Display |
Color TFT(480*234) 7" LCD |
| Model/Index |
The Common Specifications Of All SDS1000DL Series Products |
| Display |
8X18 divides |
| Waveform Capture Rate |
The highest capture rate exceed 1500 times/sec |
| Input coupling |
DC, AC, GND |
| Input Max voltage |
400V(Vpp) |
| Trigger Types |
Edge, Pulse, Video, Slope, Alternative |
| Trigger Modes |
Auto, Normal, Single |
| Trigger Source |
CH1,CH2,Ext,Ext/5,AC Line |
| Save/Recall |
Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function |
| Auto Measure Types |
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Cmean, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
| Cousor measure |
|
| Sample Types |
Real Time, Equivalent Time |
| Averages |
4,16,32,64,128,256 |
| Math |
+,-,*,Invert |
| FFT |
Window: Hanning,Hanmming,Blackman,Rectangular |
| Sampling Points: 1024 points |
| XY Mode |
Phase Error: ±3 degrees |
| Support the sampling rate : 5KSa/s~500Sa/s (in a 1-2-5 sequence) |
| Display Model |
Main, Window, Window Zoom, Roll, X-Y |
| Menu Display |
2Sec, 5Sec, 10Sec, 20Sec, Infinite |
| Display Language |
Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean, Italiana |
| Power Source Voltage |
100-240VAC,47HZ-440HZ,50VA Max |
| Frequency counter |
Support |
| PictBridge print |
Support |
| Pass/Fail function |
Support |
| Data logger |
Support |
| Size and Weight |
305mm x 154mm x133mm, about2.3kg |

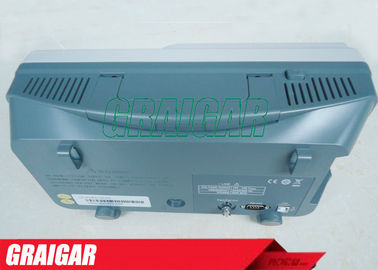

| Connection |
USB Host: Support USB flash drive storage |
| USB Device: Support PictBridge compatible printers and PC Remote control |
| RS-232: Support PictBridge compatible printers and PC Remote control |
| Pass/Fail Interface Module |
| Accessories |
(1:1,10:1)Problex2, EasyScope3.0 Computer Software System, Power Cord, USB cable,User Manual, EasyDsoLib software package
|
