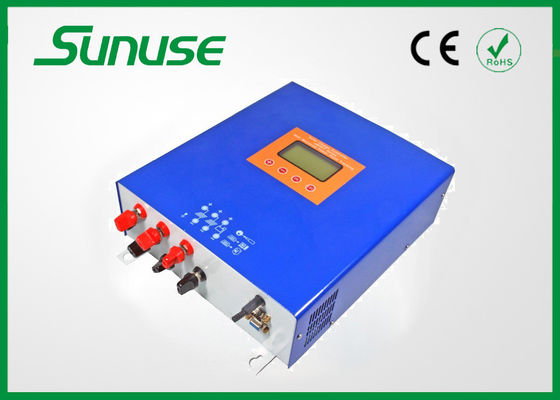

48 volt mppt solar battery charge controller 60 amp 12v / 24v auto switch for home use
Quick Detail:
60 amp mppt solar battery charge controller for solar power system
intelligent, Maximum Power Point Tracking function
Specification:
|
MODEL
|
eMPPT6024Z
|
|
Input
|
Input Voltage Range of Solar Panels
|
≤70V
|
|
Maximum Power Point Tracking Range
|
12V~70V(12V)
24V~70V(24V)
|
|
Input Route
|
1 channel
|
|
Output
|
Nominal System Voltage
|
12V/24V Auto
|
|
Maximum Charging Current
|
60A
|
|
Self Consumption
|
≤40mA
|
|
Charging Stages
|
Bulk,Absorption,Float
|
|
Float Charging Voltage
|
13.8V(12.8V~14.2V)
×1/×2/×4
|
|
Absorption Charging Voltage
|
14.4V(13.6V~15.2V)
×1/×2/×4
|
|
Temperature
Compensation
|
-4mV/Cell/°C
|
|
Others
|
Maximum Efficiency
|
97%
|
|
HMI
|
LCD and Button
|
|
Cooling Mode
|
Temperature-controlled
Active Cooling
|
|

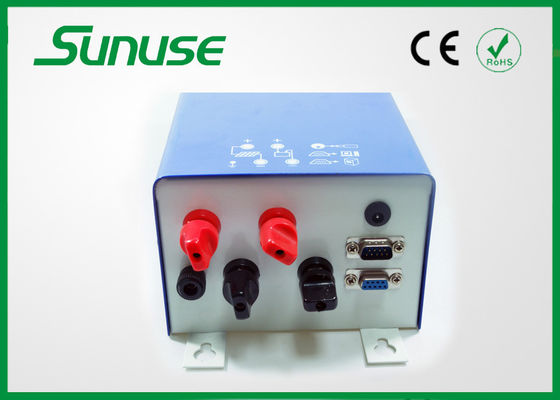

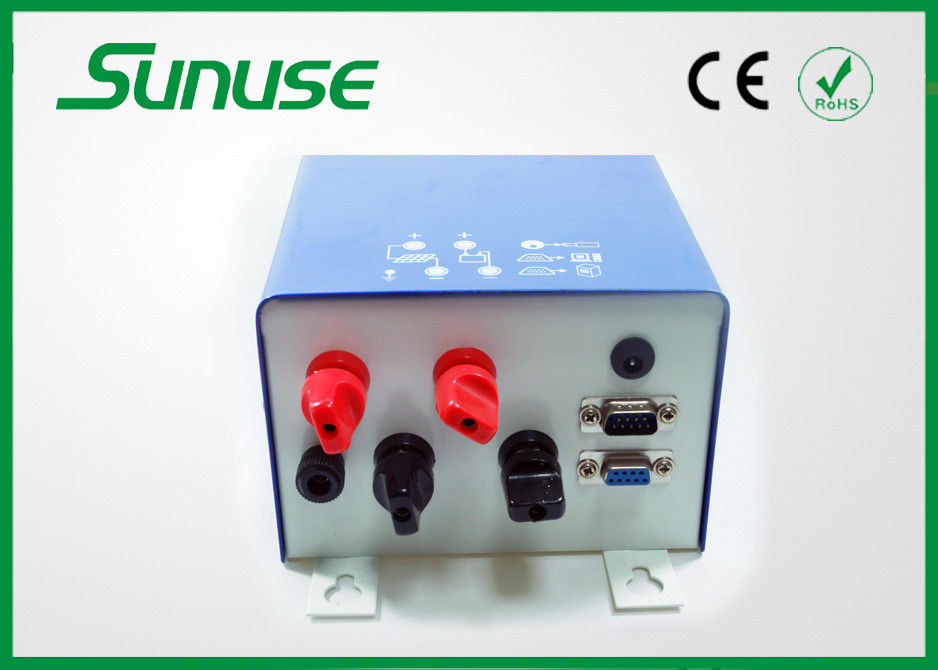

Connecting Way
|
M6Terminals
|
|
Ambient Temperature Range
|
-10°C~+50°C
|
|
Humidity
|
0~90%, No condensation
|
|
Dimensions
|
450mm*335mm*160mm
|
|
Product Weight
|
5.6Kg
|
|
Storage Temperature
|
-30°C~+80°C
|
|
Optional Function
|
Remote Monitoring
(RS485 or RS232, DB9 Port)
|
MPPT technology introduction:
1, MPPT Solar Charger Controller is a system with advanced MPPT (Maximum Power Point Tracking) Technology. The term “charge controller” refers either to a stand-alone device or a control circuitry integrated within a battery pack, battery-powered solar device or a battery recharger.
2, MPPT means maximum power point tracking. It makes the solar panels work at maximum point(ext Point B) by using power conversion technology. eMPPT is the new charge controller researched and developed by our company, and it uses the MCU to track the maximum power point of solar panels intelligently to generate more power from the solar panels.
Charging process controlling:
The starting charging voltage of battery is different, eMPPT will use the different charging strategies to finalize the charging process. When starting charging voltage of battery is lower than 12.6V(for 12V battery), battery will go through three stages as Bulk, Absorption and Floating charging. When starting charging voltage of battery is higher than 12.6V(for 12V battery), battery will go through two stages as Bulk and Float charging.
About MPPT Charging: Bulk charging, Absorption charging, Float charging
Solar Panels Configuration:
eMPPT series controller can be connected with mono solar panels and also thin film solar panels. When making the system, make sure the open circuit voltage of solar panels array is not higher than the maximum voltage permitted by the controller. Chart one is to introduce the models of mono solar panels and thin film panels and their parameters. Chart 2 is the configuration solution for 12V, 24V and 48V system for solar panels.
|
Model
|
Category
|
Pmax
|
Voc
|
Isc
|
Vpmax
|
Ipmax
|
|
STP140D-12/TEA
|
Monocrystalline
Module
|
140W
|
22.4V
|
8.33A
|
17.6V
|
7.95A
|
|
MS140GG-02
|
Thin-film Module
|
140W
|
29.0V
|
7.12A
|
23.0V
|
6.52A
|
|
STP190S-24/Ad+
|
Monocrystalline
Module
|
190W
|
45.2V
|
5.65A
|
36.6V
|
5.2A
|
|
NS-F130G5
|
Thin-film Module
|
130W
|
60.4V
|
3.41A
|
46.1V
|
2.82A
|
|
The above parameters are for condition of 25°C, AM1.5spectrum, and 1000W/m2 lighting intensity.
|
|
Model
|
For 12V system
|
For 24V system
|
For 48V system
|
|
STP140D-12/TEA
|
N in parallel
|
two in series,
N in parallel
|
four in series,
N in parallel
|
|
MS140GG-02
|
N in parallel
|
two in series,
N in parallel
|
four in series,
N in parallel
|
|
STP190S-24/Ad+
|
N in parallel
|
N in parallel
|
two in series,
N in parallel
|
|
NS-F130G5
|
N in parallel
|
N in parallel
|
two in series,
N in parallel
|
|
“N” means the quantity number required by the current
|
Function:
1. Maximum Power Point Tracking technology
The controller uses Buck conversion circuit and MCU technology to track the maximum power point to implement the maximum output power of solar panels in different illumination intensity and temperature. The MPPT algorithm increases efficiency of your PV system and decreases the quantity of solar panels.
2. Multi-stage Charge Control
The starting charging voltage of battery is different, the controller will use the different charging strategies to finalize the charging process. When starting charging voltage of battery is lower than 12.4V (for 12V battery), battery will go through three stages as Bulk, Absorption and Float charging. When starting charging voltage of battery is higher than 12.4V (for 12V battery), battery will go through two stages as Bulk and Float charging.
3. Charging voltage adjustable
4. Temperature compensation for charging voltage
5. Temperature controlling fan
6. In night to sleep
7. Battery reversed connection protection
8. Solar panels reversed connection protection
9. Protection for battery reversed discharging
10. Internal over-heating protection
11. Over voltage protection for solar panels input
12. Power limiting for the input of solar panels
MPPT Solar Charge Controller also regulates the rate at which electric current is added to or drawn from batteries. It prevents overcharging, over and variable voltage which if not controlled can reduce battery performance or life span and may pose a safety risk. It also prevents complete drainage (”deep discharge”) of a battery and facilitates controlled discharge thereby maintaining the battery’s longevity. Equipped with Micro controller and Digital Signal Processing (DSP) technology MPPT Solar Charger Controller is fully protected against transient over voltage and reverse the current flow, and can charge any type of battery.
