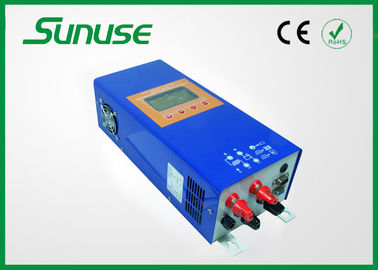

intelligent mppt 30a 12v 24v 48v PWM maximum power point tracking charge controller

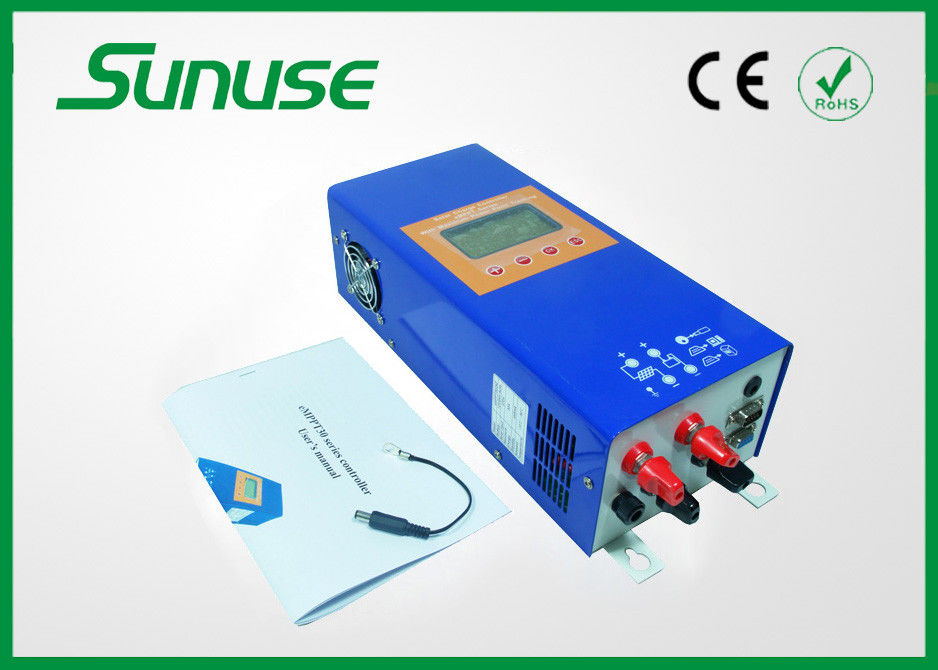

Large Image : intelligent mppt 30a 12v 24v 48v PWM maximum power point tracking charge controller

Product Details:

Place of Origin:	China
Brand Name:	Sunuse
Certification:	CE, ROHS
Model Number:	eMPPT3024Z

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packing in Neutral box, 5pcs/Carton, Dimention:405485460mm. G.W.:18Kg. Suitable for seaworthy transportation.
Delivery Time:	3-7 working days
Payment Terms:	T/T, Western Union, Paypal, Escrow, E-Credit Line, L/C
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Operating Temperature:	-10~60 Degree	Float Voltage:	27.6V
Rated Working Current:	30A	Charging Mode:	MPPT Mode
Rated Working Voltage:	24V	Warranty:	1 Year
Highlight:	solar charge controller

intelligent mppt solar charge controller 30a 12v 24v 48v with LCD display

Quick Detail:

30a MPPT solar panel charge controller with LCD display
intelligent, Maximum Power Point Tracking function
multi-protect function

Specification:

MODEL		eMPPT3024Z	eMPPT3048
Input	Input Voltage Range of Solar Panels	≤70V	≤130V
	Maximum Power Point Tracking Range	12V~70V(12V) 24V~70V(24V)	48V~130V
	Input Route	1 channel	1 channel
Output	Nominal System Voltage	12V/24V Auto	48V
	Maximum Charging Current	30A	30A
	Self Consumption	≤40mA	≤40mA
	Charging Stages	Bulk,Absorption,Float
	Float Charging Voltage	13.8V(12.8V~14.2V) ×1/×2/×4
	Absorption Charging Voltage	14.4V(13.6V~15.2V) ×1/×2/×4
	Temperature Compensation	-4mV/Cell/°C
Others	Maximum Efficiency	97%
	HMI	LCD and Button
	Cooling Mode	Temperature-controlled Active Cooling
	Connecting Way	M6Terminals
	Ambient Temperature Range	-10°C~+50°C
	Humidity	0~90%, No condensation
	Dimensions	386mm150mm100mm
	Product Weight	2.5Kg	2.6Kg
	Storage Temperature	-30°C~+80°C
	Optional Function	Remote Monitoring (RS485 or RS232, DB9 Port)

Features:

Intelligent microprocessor control
Silent, solid state pulse Width Modulation (PWM Charging) process
User selectable configuration 12V or 24V or 48 V configuration
Test point allows precise adjustment of settings
Electronic over current protection
Communication interface with PC or LCD modular for data logging or parameter display
Protection against various parameters
Potentially increase the charging efficiency by 30%
Real time sensing of voltage and current to optimize charging

MPPT technology introduction:

MPPT means maximum power point tracking. It makes the solar panels work at maximum point(ext Point B) by using power conversion technology. eMPPT is the new charge controller researched and developed by our company, and it uses the MCU to track the maximum power point of solar panels intelligently to generate more power from the solar panels.

intelligent mppt 30a 12v 24v 48v PWM maximum power point tracking charge controller 0

Charging process controlling:

The starting charging voltage of battery is different, eMPPT will use the different charging strategies to finalize the charging process. When starting charging voltage of battery is lower than 12.6V(for 12V battery), battery will go through three stages as Bulk, Absorption and Floating charging. When starting charging voltage of battery is higher than 12.6V( for 12V battery), battery will go through two stages as Bulk and Float charging.

About MPPT Charging: Bulk charging, Absorption charging, Float charging

intelligent mppt 30a 12v 24v 48v PWM maximum power point tracking charge controller 1

System Wiring diagram:

Solar charge controller forms an essential component of virtually all solar power systems that utilize batteries. The charge controller is used to regulate the current flowing from the solar panels to the batteries. These solar controllers prevent the battery from the damages caused by overcharge and disconnect the battery in case of severe discharge by shutting of loads. Easy Photovoltech's solar charge controllers are specially designed to improve the battery performance and increase the life.

Protection against various parameters:
