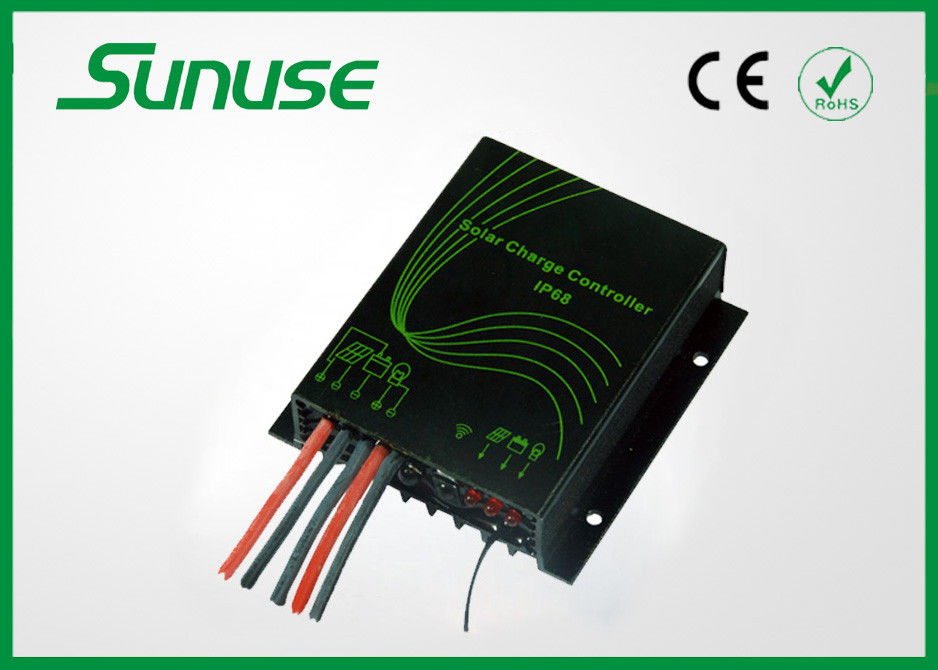

10a waterproof solar street light controller with remote control for streetlight use
Quick Detail:
10A solar street light controller
intelligent, PWM charging mode
multi-protect function
Three working mode
Specification:
|
Model
Parameter
|
SL1024
|
|
Rated charge Current
|
10A
|
|
Rated discharge Current
|
10A
|
|
Rated working voltage
|
12V/24V auto switch
|
|
Solar panel voltage
|
≤55V
|
|
Floating voltage
|
13.7V ;×2/24V(25°C)
|
|
Improved charging voltage
|
14.3V;×2/24V continue 2 hours, once comes out with low voltage protection, then it will improve charging voltage, or improve charging voltage once a week. (25°C)
|
|
Low voltage protection
|
10.8V;×2/24V
|
|
High voltage disconnection
|
16.5V;×2/24V
|
|
Low voltage recovering
|
12.6V;×2/24V
|
|
Overload protection
|
(overload 25%, protected 1mins; overload 50%, protected 30s ; overload100%, 1s)protected lock, restart loads in each 2 mins, until full unlock.
|
|
Short circuit protection
|
Protected lock, restart loads in each 2 mins, until full unlock.
|
|
No load loss
|
≤8mA
|
|
temperature compensation
|
-4mv/cell/°C
|
|
Lighting control identified voltage
|
2.5V—11V;×2/24V can be set by remote control
|
|
Lighting control identified time
|
15seconds
|
|
working temperature
|
-30°C~60°C
|
|
humidity scope
|
≤90%, no condensation
|
|
Dimension
|
73 mm×69.4 mm×20.5mm
|
|
Weight
|
0.16kg
|
|
Waterproof grade
|
IP68
|
Solar charge controller forms an essential component of virtually all solar power systems that utilize batteries. The charge controller is used to regulate the current flowing from the solar panels to the batteries. These solar controllers prevent the battery from the damages caused by overcharge and disconnect the battery in case of severe discharge by shutting of loads. Easy Photovoltech's solar charge controllers are specially designed to improve the battery performance and increase the life.
SL1024 Function:
1. Using the Epoxy resin sealed technology, increased the function like: fall-proof, earthquake-proof, waterproof, corrosion-proof, moisture-proof, and so on. Waterproof grade: IP68.
2. System voltage : 12V/24V automatic switch
3. Comprehensive reverse connection protection
4. Intelligently overload, short circuit and over voltage protection. (After over current protection, it will restart for every 2 mins, until releasing the failure)
5. Multi-working model choosing, multi-parameter adjusting, make the products more intelligently, more useful.
6. It has temperature sensor outside, can make the temperature compensation more precise.
7. More advanced charging and discharging control algorithm, effectively increase the use of solar panels’ rate and battery life.
8. Design of high power density, all-aluminum case. Smaller sizes and better performance
9. Controller with infrared wireless receiving and sending function, matching the remote control can be achieved on the wireless programming to the controller.
10. SL remote control can only be used to change the controller model, set the light time at night and control the loads’ switch, these the simple functionality
If we use IRF remote control with LCD screen to complete more function setting for the controller.
Status indication:
|
indicator
|
Status indication
|
function
|
|
|
Charging indicator
|
Long lighting
|
Solar panel voltage is charging to the battery
|
|
No lighting
|
Solar panel low voltage or no voltage or reverse connection
|
|
Flash slowly
|
Battery is infloating status
|
|
|
Battery indicator
|
Long lighting
|
working normal
|
|
No lighting
|
not connecting battery
|
|
Flash slowly
|
Battery low voltage
|
|
Flash quickly
|
Controller over voltage
|
|
|
Load indicator
|
Long lighting
|
The load working normal
|
|
No lighting
|
The load power off
|
|
Flash slowly
|
The load over current
|
Note: in setting status, load indicator is the remote control status indicator.
Mode introduction
This controller has a very intelligent streetlight controller function, load work can be flexibly set through external IR programmer; can be provided in several ways:
