12V PWM Solar Charge Controller For Solar Street Lighting System

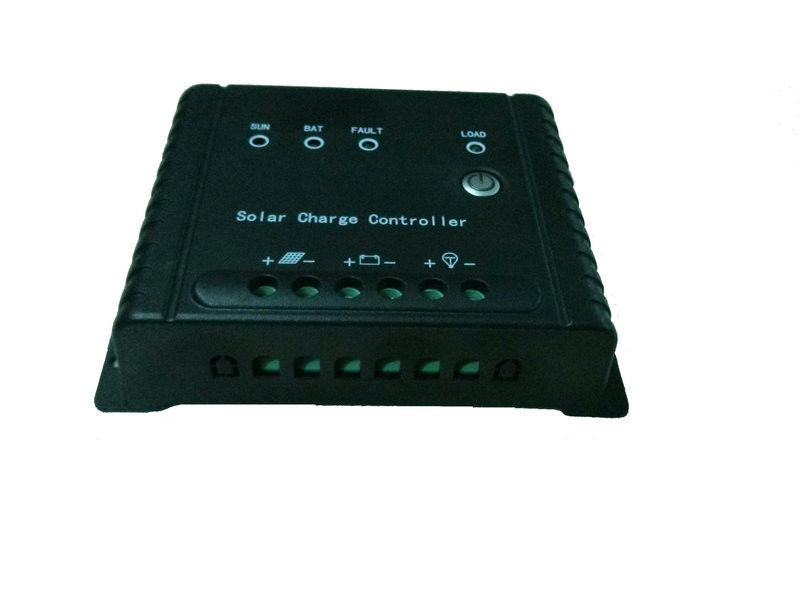

Large Image : 12V PWM Solar Charge Controller For Solar Street Lighting System

Product Details:

Place of Origin:	China
Brand Name:	LSG
Certification:	CE,FCC,ISO9001
Model Number:	LSG
Name:	PWM Solar Charge Controller
Control Mode:	Switch Control/PWM
Display:	LED
System Voltage:	12V
Warranty:	1 years

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Get Latest Price
Packaging Details:	1pc/carton
Delivery Time:	30 working days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Highlight:	solar panel regulator charge controller

◆12V Solar charge controller
◆High efficient Series PWM charging
◆Battery type option
◆LED indicators indicate battery voltage state
◆Use MOSFET as electronic switch
◆Temperature compensation
◆Electronic protection: Over charging, over discharging, overload, and short circuit, lighting protection, electronic fuse,
◆Battery reverse polarity protection, automatic detection of faulty battery

Description:

SC series solar charge controller that adopts the most advanced digital technique and operates fully automatically. The Pulse Width Modulation (PWM) battery charging can greatly increase the lifetime of battery.

Applications:

1.Solar Home System
2.Solar Street lighting system
3.Public security monitoring system
4.DC signal light power supply system
5.Small and medium size telecommunication station power supply system
6.Small size solar power station system and solar DC power

Specifications:

System voltage	12V
Rated Battery Current	5A	10A	20A
Rated Load Current	5A	10A	20A
PV panels configuration(suggestion)(Imp≤Rated Current)	≤5A	≤10A	≤20A
Battery capacity	17Ah-400AH
Max Efficiency	＞98%
Static Dissipation	＜0.5%(system rated current)
Solar battery port input voltage range	0-25V
Buck Charge Voltage	14.6V±0.2V
Float Charge Protection	14.4V±0.2V
Overcharge protection	14.4V±0.2V
Charging resume voltage	13.2V±0.2V
Undervoltage alarm	11.2V±0.2V
Over discharge protection	10.8V±0.3V
Over discharge resume start voltage	13.2V±0.2V
Discharge circuit voltage drop	＜4% (system rated current)
Overload short-circuit protection	125%(60s)/150%(30s)/Short-circuit auto shut down
Input overvoltage protection	200%(rated voltage
PV Reverse Polarity Connection Protection	YES
Control Mode	Switch Control/PWM
Display	LED
Alarm Mode	Sound(optional),light alarm
Working Temperature	-20°C ~ +45℃
Relative humidity	0-95%(Non-condensing)
Storage temperature	-25°C ~ +85℃
Storage humidity	≤85%
Packing dimension(mm)	136X100X35
