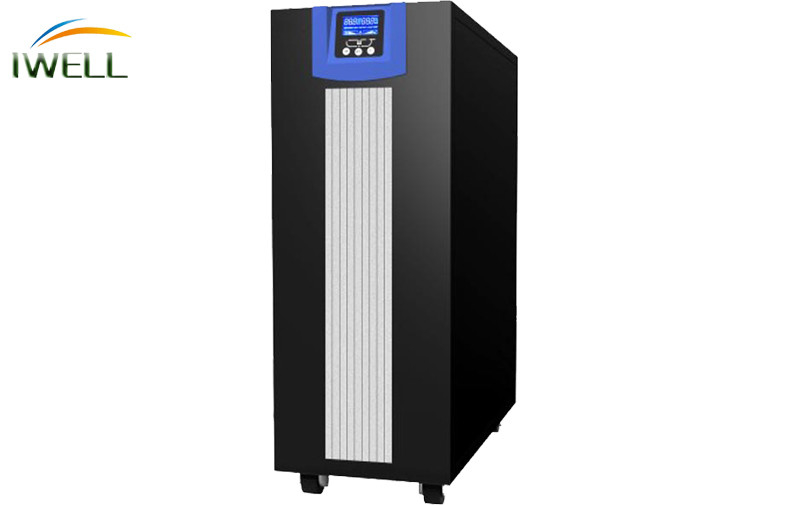

Uninterrupted Power Supply

Input voltage

Rated voltage

220VAC

Phase

Single phase with ground

Turn on voltage range

220±25% VAC

Bypass voltage range

220VAC±25%

Phase voltage；

Could be adjusted by software.

Bypass low loss

165VAC

Bypass low comeback

Low loss +10VAC

Bypass high loss

275VAC

Bypass high comeback

High loss-10VAC

Line low loss/comeback

(165±5) VAC /(180±5) VAC

Line high loss/comeback

(275±5)VAC/(260±5)VAC

Input frequency

Rated frequency

50Hz

Could be adjusted by software.

Frequency low loss

(40~49)±0.2Hz(default:46Hz)

Frequency low comeback

Frequency low loss + 0.5Hz

Frequency high loss

(51~60)±0.2Hz(default:54Hz)

Frequency high comeback

Frequency high loss - 0.5Hz

Input power factor

Input power factor

Max 0.8

Generator

Support generator input

Generator rating≥2*UPS rating

Input current

Rated current

153A

Input protection

Rated protection

160A

Output

Output power

VA/watt

20kVA/16kW

Rated voltage

220VAC

Sine wave

Phase

Single phase with ground

Voltage range

200/208/220/230/240VAC

Could be adjusted by software. 10% derating for 208/200VAC.

Voltage regulation

±2%

Voltage distortion

≤8％

Full RCD load

≤3％

Full R load

DC offset

≤200mV

Transient response

≤9％

R load 0％～100％～0％

≤6％

R load 20％～100％～20％

Transient recovery

≤60ms voltage recovery to 90%

Full RCD load

Bypass output before turn-on

Yes

Crest ration

3:1

Output frequency range

Line mode

1.Same as input frequency(46Hz~54Hz)

2.50Hz(Input frequency>54Hz or Input frequency<46Hz)

Battery mode

(50+0.1) Hz

Slew rate

1 Hz/Sec

Efficiency

Line mode

> 87%

 R load

Battery mode

> 88%

 R load

Overload

line mode/battery mode

Overload warning only

105%±5%≤load

2Min,then transfer to bypass and alarm.

105%±5%<load≤125%±5%

30S,then transfer to bypass and alarm.

125%±5%<load≤150%±5%

0.5S,then transfer to bypass and alarm.

load>150%±5%

Automatically recovery

Yes

Short protection

Line/battery mode

Cut off output and alarm after 3S

Transfer time

Line to battery mode

0mS

Battery to line mode

0mS

Line to bypass mode

<6mS

Bypass to line mode

<6mS

Battery and charger

Battery

Rated voltage

192VDC

Protection

Low alarm voltage / comeback voltage

(180.8V±4V)/ (188.8V±4V)

Shutdown voltage

(176V±4V)/ (184V±4V)

Watt Value < 1000W

(160V±4V)/ (168V±4V)

Watt Value ≥ 1000W

Battery protection

Overcharge protection

(250V±4V)

Battery test

Battery weak

Support

Battery fault

Support

Charger

Output voltage

(220±2)VDC

Float charge voltage

Charge time

Determined by battery capacity

Charge current

5A

Interface

Alarm silence

Support

DC power turn-on

Support

Automatically restart

Support

alarm

Battery mode

Beep/4s

Battery low/charger fault

Beep/1s

UPS fault

Continuously beep

Overload

Beep/1s

Bypass mode

Beep/2Min

Communication

RS232/ RS485 interface

Support

Output dry contactor

Support

Intelligent slot

Support

Monitor software

Appending with UPS

Cooling

Force air cooling

Display

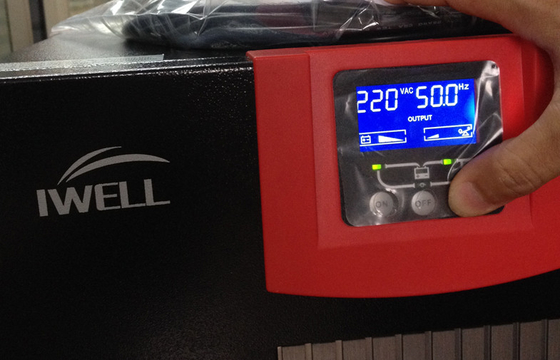

LCD displays UPS status

Support

Environment

Work temperature

0℃～40℃

Altitude

＜1000m

Audible noise

≤55dB

Storage temperature

－15℃～45℃

Work humidity

20%～95％

Standard

EMS/EMI

Conducted

IEC EN62040-02

Radiated

Anti-interference

IEC 61000-4-2.4.5 Level IV, IEC61000-4-3 Level III

Safety

Safety

GB4943-2001/IEC62040-1

Transportation

Drop test

GB-T4857-18

Vibration test

B-WR1-129(GB-T14715-93)

Machinery features

Connection

Inlet

Wiring terminal block

Outlet

Wiring terminal block

External battery slot

Wiring terminal block

Size

UPS net weight and size

L*W*H(mm)

655*370*900

Net weight(Kg)

152

UPS weight and package size

L*W*H(mm)

730*450*1054

weight(Kg)

174.5

Optional functions

60Hz

Support

Could be set by software

Converter mode

Support

Could be set by software

ECO mode

Support

Could be set by software

EPO mode

Support

Need to increase related components
