Model: YK-AD11010
Prodict name : 110v dc output power supply
Contact person: Susan Yu
Mobile/wechat/whatsapp: 86 15088057840
Why us?
Reasons you would prefer to buy this Power supply products from us.
- Service .........................RMA(24/7Technical Support),OEM,ODM
- Quality.........................Less than 0.5% of failure rate
- Warranty......................Up to 1 year
- Price.............................Factory Price! Cut down the cost you paid to the middle man
- Professional.....Founded in 2003, Produce Power Unit & System products for10yearsin China.
- Reliable.........................One of theTop 50Power supply productsmanufacturers in China
Characteristics- 110Vdc 10a adjustable 19inch dc power supply
- Advanced switching mode power supply technology and components, excellent design, small volume, light weight, high efficiency, which ensures the stability and reliability of long-term full-load operation.
- Constant voltage value and constant current value can be continuously adjustable within the range 0~100%
- Digital display output voltage and output current.
- Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; start up delay soft starting can avoid the overshoot voltage when start up.
- Simple operation, convenient use
- Store temperature: (-40~70)°C, Working temperature: (-20~50)°C
- Relative humidity: 90% (40±2°C), atmospheric pressure (70-106)kPa
Customize Range & Application- 0-110V 0-10A 1100W Max dc power supply
Regards the Variable DC power supply,
We can customize different kind of specification according to your request. Such as
Such as:
- 0-1500V variable or appointed
- 0-2000A variable or appointed
It is widely used in electric power DC screen system, engineering control, communication, scientific research, charge of storage battery, and other equipments.
Model Information:YK-AD XXXYYY
YK—YUCOO
AD—AC to DC
XXX: max output voltage: 3 digits or 2 digits, Unit: V
YYY: max output current: 3 digits or 2 digits, Unit:
Question 1:
What is a variable power supply?
- A variable power supply also called a adjustable dc bench power supply, is one where you can continuously adjust the output voltage and current to you requirements.
- In another word, it is 100% constant current and constant voltage, you can adjust to any voltage or current as your require
Question 2:

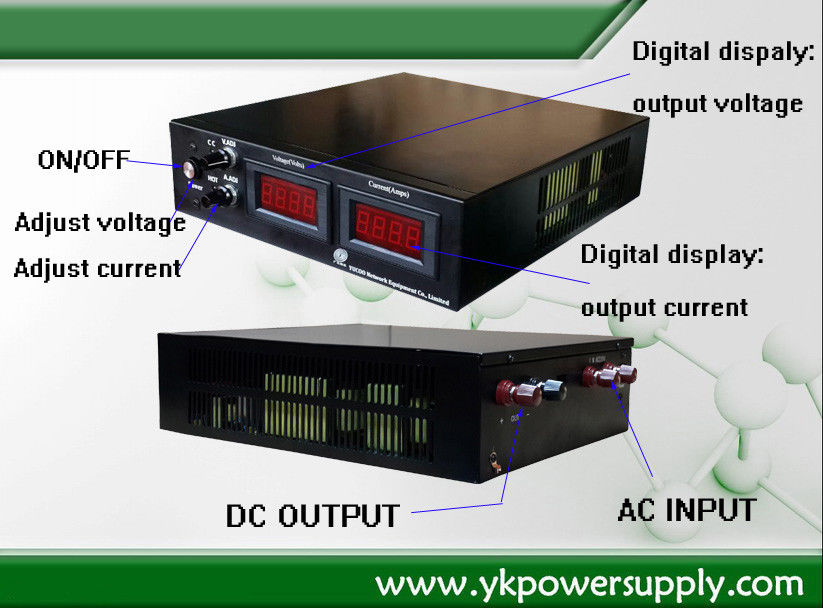

On the picture it shows 4 digits display l output, can you show 1.111A and 1.111V?
- For example model YK-AD15010
- For the regular design, the output voltage show only 1-150v, current 1.0-9.9A
- Some special design can customized base buyer request
Question 3:
Does this power unit can make AU power plug and 110Vac input or not?
- Yes! We can customize different specification products according to your requests.
- So do not hesitate to contact us if you have any problem
Technical Parameter- 0-110V 0-10A 1100W Max dc power supply
Test Item | Performance Parameter |
AC wide input | 1phase AC110V±15% 50/60Hz |
Output range | Constant voltage 0~110V (or appointed) variable/adjustable Constant current 0~10A (or appointed ) variable/adjustable |
Power | Max 1100W |
Source Voltage Regulation | constant voltage ≤0.2% |
Load Regulation | constant voltage ≤1%; constant current≤2% |
Line regulation: | constant voltage ≤0.3% |
Ripple Voltage | total ripple Vpp≤2% (max voltage)(60V*2%=1.2V) 100Hz Ripple: Vpp≤0.5%(max voltage)(60V*0.5%=0.3V) |
Operation Environment temperature | (-10~45)°C |
Efficiency | ≥89% |
Digital meter | voltage meter and current meter |
Digital display | Precision of output voltage±1.5%
Precision of output current±2.0% |
Insulating resistance | Input-Output:≥20MΩ |
Input— Shell:≥20MΩ |
Output-Shell:≥80MΩ |
Insulating Strength | Input-Output:AC1500V,10mA,1minute |
Input— Shell:AC1500V,10mA,1minute |
Output-Shell:AC1500V,10mA,1minute |
Imbalance of equalized current | ≤5%+2.5A |
Protection | Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; switch-on delay soft starting can avoid the over swung output voltage when switching on. |
over-temperature protection | (70~80)°C |
MTTF | ≥50000h |
External dimension | 256(W)*348(H)*590(D)mm |
Weight | NW 5kg |
Radiating wind hole | Internal radiating wind hole |
Warranty
We provide 12 months warranty.
- If the item is defective, please notify us within 5-7 days of delivery.
- All items must be returned in original condition, in order to qualify for a refund or exchange of goods.
- Items returned after 15 days of delivery are only eligible for repair.
- The buyer is responsible for all shipping cost When buying, it means the buyer have given tacit consent to the policy.
- If further details, please feel free to contact us, we will work with you to reach win-win.
