ECO Online High Frequency UPS

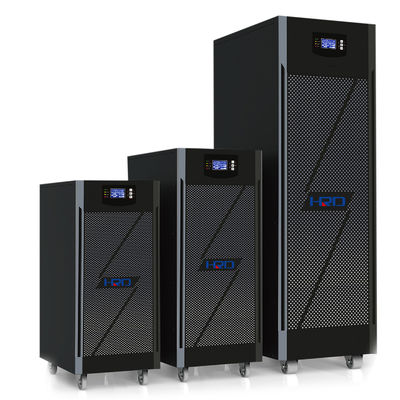

Large Image : ECO Online High Frequency UPS

Product Details:

Place of Origin:	Shenzhen ,China
Brand Name:	HRD brand
Certification:	CE certificate
Model Number:	PCP6K-TX

Payment & Shipping Terms:

Minimum Order Quantity:	10
Packaging Details:	1PCS/1WOODEN
Delivery Time:	15-20DAYS
Payment Terms:	TT OR L/C
Supply Ability:	200PCS/WEEK
Warranty:	18months after shipment

Contact Now

Detailed Product Description

Product Name:	High Frequency Ups	Input PF:	≥0.99
Input Frequency:	40-70hz	Charge Voltage:	275Vdc
DC Voltage:	240Vdc	Optional:	SNMP/AS400/USB
Highlight:	online power supply

PC MAX TX Split Phase Online UPS 6-10KVA

DSP control, with excellent performance and comprehensive protections
Output power factor1.0, offering more stronger load capability
Output with isolation transformer
Most advanced 3 level inverter technology, 94% efficiency in normal mode
Ultra Wide Input: 110V-300Vac , well compatible with Gen-set
IBM charger 1-12A settable,extending battery lifespan and satisfying fast charging requirement
Standard model with external battery interface for extending back up time
Battery test and EOD voltage settable on LCD
Simple design for fast and easy maintenance

u Default equipped with battery breaker for safety and convenient operation

Compact design to save installation space
Configurable output function 110/220Vac or 120/240Vac by LCD
AC and cold start
.Double switch input breaker with DC breaker
Standard USB&RS232 interface,and EPO, SNMP card (optional)
Conformal coating PCB for more critical operation environment(optional)

u Convertible frequency (input 60Hz, output 50Hz, vice versa)

u Manual bypass (optional)

Technical Specification:

Model		PCM6KL-TX		PCM6KS-TX			PCM10KL-TX		PCM10KS-TX
Capacity(kVA/kW)		6kVA/6kW					10kVA/10kW
Input PF		≥0.99
Input voltage	Phase	2 Lines
	Low transfer	L-L:176 VAC ± 3% @ 100% load;110 VAC ± 3% @ 50% load
	Low back	L-L188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load
	High transfer	L-L 300 VAC ± 3%
	High back	L-L:280 VAC ± 3%
Input frequency		50/60Hz+/-10%
THDi		≤3%(linear load),≤5%(non-linear load)
Battery
Quantity			16 ,18 or 20PCS*12Vdc settable
Back up time			Standard model : 5-12mins depends on load Long run model:depends on external Battery
DC voltage			192,216 or 240Vdc ,settable
Charge voltage			220/248/275Vdc
Recharging current			1-12A adjustable
Output
Output P.F			1.0
Output voltage			104/208Vac,110/220Vac or 120/240Vac +/-1%(settable)
Frequency			46~54Hz or 56~64Hz (Line mode) 50/60Hz ± 0.1Hz ( Battery mode)
Crest factor			3:1(max)
Wave distortion			Less than 3%(linear load), Less than 5% Non-linear load
Over load			105%<load<125% for 1mins ,125%<load<150% for 30sec
Efficiency			≥94%(Line mode)
			≥93%(battery mode)
			≥98%(ECO mode)
Transfer time			0ms (AC-Battery);
			0 ms(bypass-inverter)
Alarms
Battery mode			Sounding every 4 seconds( can mute)
Low battery			Sounding every second
Overload			Sounding every second
Faulty			Continuously sounding
Management
Smart RS-232/USB			Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
Optional			SNMP/AS400
Environment
Operation Humidity			0-90 % RH (non-condensing) @ 0- 40°C
Noise Level			Less than 55dBA @ 1 Meter			Less than 60dBA @ 1 Meter
Physical
Model			PCM6KL-TX		PCM6KS-TX			PCM10KL-TX		PCM10KS-TX
Net Weight (KG)			54		93			65		112
Gross Weight(KG)			59		100			70		119
UPS (DWH)mm			460200360		460200720			460200360		460200720
Packing (DWH)mm			680380834		6803801074			680380834		6803801074
