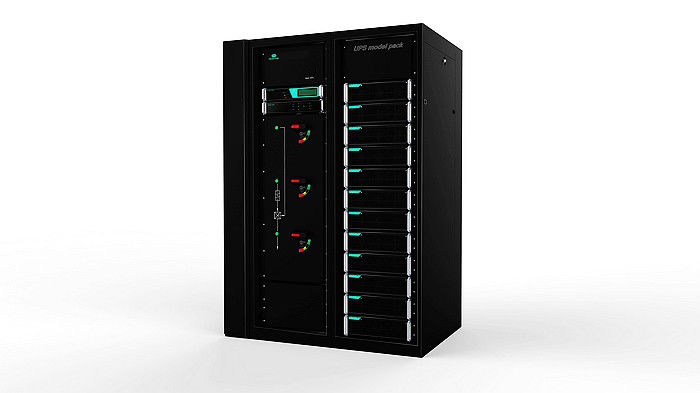

HR Series Online High Frequency UPS Modular UPS 10-640KVA

Introduction:

HR series  Multi-system,energy-saving green modular UPS is set in today's most advanced technological application of the results, with the most advanced cutting-edge technology, innovative concept of excellence focused global power development, to promote technological progress in the field of UPS power and the birth of high-end products, modular UPS series products in the domestic market are high-volume applications, as well as all around the world.

Features :

Convenient operation

Using the industry's most advanced technology :Stacking modular, hot-swappable, multi-system, Distributed Logic parallel, touch screen operation.

Each layer rack and modules are installed independently, the most effective solution to expand and upgrade the product, but also for product manufacturability and maintenance provides the easiest, fastest, most reliable, and most secure application mode to achieve the best cost preformance;

• * DSP Control & Modular design
• * Parallel & Redundant, N units can be parallel in theory
• * Dual conversion technology
• * Advanced PFC technology
• * True Sine Wave output
• * Intelligent battery management
• * Configurable as 3/3, 3/1, 1/1, 1/3 system
• * Hot- swappable
• * High efficiency for power savings
• * Transform less
• Confirmal coating for all PCB boards

•

  UPS MODULE TECHNICAL SPECIFICATION





  Model	HR10	HR25	HR40
  Capacity	10 kVA	25 kVA	40 kVA
  Input/Output mode	3/3, 3-phase + N + E
  Input PF	≥0.99
  THDI(%)	≤3%
  Overload ability	125%, 10mins
  Charging power	2.5KW	6KW	10KW
  Dimension(H×W×D)mm	89×482×465	133×482×465	176×482×700
  Weight(kg)	16	20	35





















  UPS SYSTEM TECHNICAL SPECIFICATION

  System model

  HRS-50/10

  HRS-100/10

  HRS-200/25

  HRS-300/25

  HRS-400/40

  HRS-640/40

  Maximum power

  50 kVA

  100 kVA

  200 kVA

  300 kVA

  400 kVA

  640 kVA

  UPS module model

  HR10

  HR25

  HR40

  Mains Input

  Input mode

  3-phase +N +E, 1-phase +N +E

  Input voltage

  380V/220V±20%, 400V/230V±20%, 415V/240V±20%

  Input frequency

  50Hz±10%, 60Hz±10%

  Power woke-in (Sec.)

  60sec

  THDI (%)

  ＜3%

  Input PF

  ≥0.99

  Bypass Input

  Input voltage

  380V/220V±20%, 400V/230V±20%, 415V/240V±20%

  Input frequency

  50 Hz, 60 Hz

  Range of Frequency Synchro

  50 Hz±4%, 60 Hz±4%

  DC Input

  Rated Input voltage

  ±384VDC

  Input voltage tolerance

  ±345V~±440V DC

  Battery charging

  Charging current limited

  yes

  Charging ability

  10 hours (2 hours back up)

  Stability of charging voltage

  ±1%

  AC output

  UPS power factor

  0.8

  Output voltage

  380V/220V AC, 400V/230V AC, 415V/240V AC

  Output frequency

  ±4%; ±0.2% (battery supply)

  Output voltage stability

  ±1%

  Output voltage recovering time

  ＜20ms (load 0~100% change)

  Overload ability

  Operate 10mins with 125% load

  Transfer from mains to battery supply

  0ms

  Transfer from bypass to inverter supply

  <1ms

  Peak factor

  3:1

  Waveform distortion

  ≤1% ( linear load ),  ≤3%( non-linear load )

  Overall efficiency

  ≥95% (AC~AC),  ≥98% (DC~AC)

  Load share precision

  ≤5%

  Operation environment

  Ambient temperature

  -25℃～60℃

  Operating temperature

  -5℃～40℃

  Maximum operation altitude

  ≤1500m

  Relative humidity

  ≤95% non-cadency

  Protection degree

  IP30

  Cooling

  Air cooling

  Applicable safety standards

  EN62040-1-1:2003     IEC60950-1:2001

  Electromagnetic compatibility

  EN62040-2:2006

  Acoustic noise

  ≤55DB

  Others

  Cabinet

  Standard 19 inch cabinet

  Monitor management system

  UPSupervisor

  Interface

  RS232, RS485/422 and 8 try contact, TCP/IP, SNMP

  Display

  Touch LCD/LED Screen

  Weight(kg)

  150

  200

  240

  470

  500

  700
