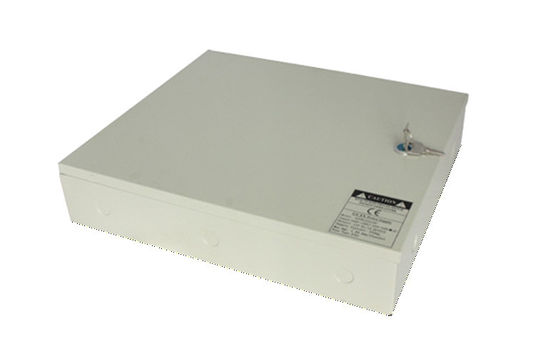

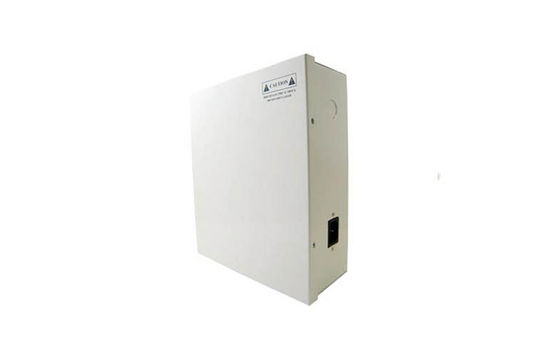

18 Channel CCTV Power Supplies 12VDC 400W 13Amp With CE Certified
Quick Detail:
-Input: 110VAC or 220VAC, 1 in 18 Out Power Distribution Box (18 channels)
-Output: 12 Volt DC and 24V AC 400W
-12VDC and 24VAC in one box
-Supply Current: 13 Amp and 10 Amp
-Max. Amp: 1.85Amp/Channel
-18 individually PTC auto-reset fuses protected outputs with LED
-Over voltage, over current, short-circuit, and surge protections
-On/off safety power switch with LED indicator
-Beige metal housing
-Dependable and long lasting
-Approvals: CE/RoHS
-Size: 380mm (L) x 330mm (W) x 85mm (D)
Description:

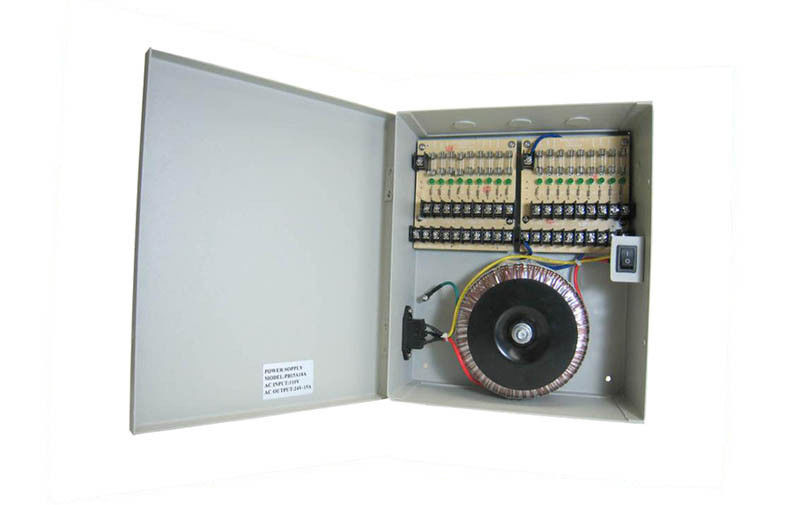

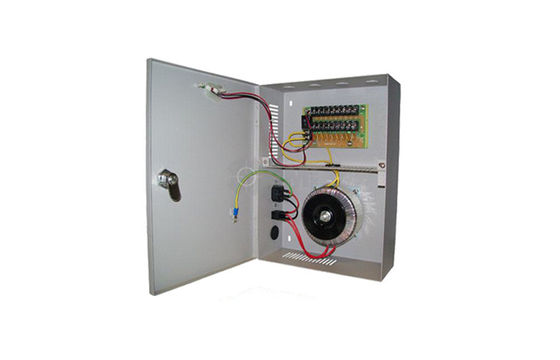

400W 12VDC and 24VAC 18 Channel CCTV Power Supply for CCTV Camera System.1 in 18 Out CCTV Power Supply(9 Channels of 12VDC and 9 Channels of 24VAC)
The AC/DC combo power distribution box powers up to9 of your 24 Volt AC devices and 9 of your 12 Volt DC devices, totaling up to 18 ports. This unit conveniently allows the connection of both AC and DC devices. Each of the 18 power outputs includes its own individual fuse and LED light for monitoring the power status, dependable, simple, and convenient.
Applications:
1) Suitable for industrial equipment, security monitoring.
2) Suitable for LED billboard, LED lighting.
3) Suitable for medical treatment, CCTV camera power supply.
4) Widely used in any other area.
Specifications:
|
Max output power
|
400W
|
|
Input
|
Input Voltage
|
AC100-240V
|
|
Input Voltage Frequency
|
50/60Hz
|
|
Input Current
|
Max.1.3A
|
|
Efficiency
|
>85%
|
|
Inrush Current
|
Cold Start Curren 40A/240Vac
|
|
Leakage Current
|
＜3.5mA/240VAC
|
|
Output
|
Output Voltage
|
12VDC±5% & 24VAC±5%
|
|
Total Output Current
|
DC13A, 9 channels & AC10A, 9 channels
|
|
Output Ripple
Noise(Vp-p)
|
80mVp-p@25℃/
Rated input voltage & Rated output load
|
|
Fuse Type
|
Glass fuse
|
|
Fuse Rating
|
PTC 1.85A/60V
|
|
Start time, rise time, hold on
|
1000ms,30ms,50ms/240VAC.
|
|
Protection
|
Short Circuit Protection
|
When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.
|
|
High Voltage Protection
|
When over voltage occurs, it will switch to self-protection status to
protect the load.
|
|
Over Current Protection
|
When over current occurs,
the corresponding
channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.
|
|
Circumstances
|
Working Temperature
|
0℃-+50℃
|
|
Storage Temperature
|
-20℃-+80℃
|
|
RH
|
20%-90%
|
|
Heat Release
|
Natural heat dissipation
|
|
Dielectric strength
|
Input to output
|
1500Vac/60S leakage current≤1.5mA
|
|
Input to FG
|
1500Vac/60S leakage current≤2.0mA
|
|
FG to output
|
500Vac/60S leakage current≤1.5mA
|
|
Insulating Strength
|
Input to output
|
≥20MΩ/500VDC@25℃
|
|
RG
|
≤0.011Ω@DC8V/25A/25℃
|
|
Safety EMC
|
Safety Standards
|
UI60950 EN60950
|
|
EMI
|
EN55011 class B
EN55022 class B
|
|
EMS Immunity
|
EN55024 EN61000-6-2
|
|
Harmonic Current
|
EN61000-3-2
|
Competitive Advantage:
-100～240VAC Worldwide Input Voltage range;
-Compact design, light weight and high efficiency;
-Short Circuit Protection, Over Current Protection, Over Load Protection;
-Customer design model;
-Factory direct price w/o middle man;
-0.3% backup of order quantity free of charge.
