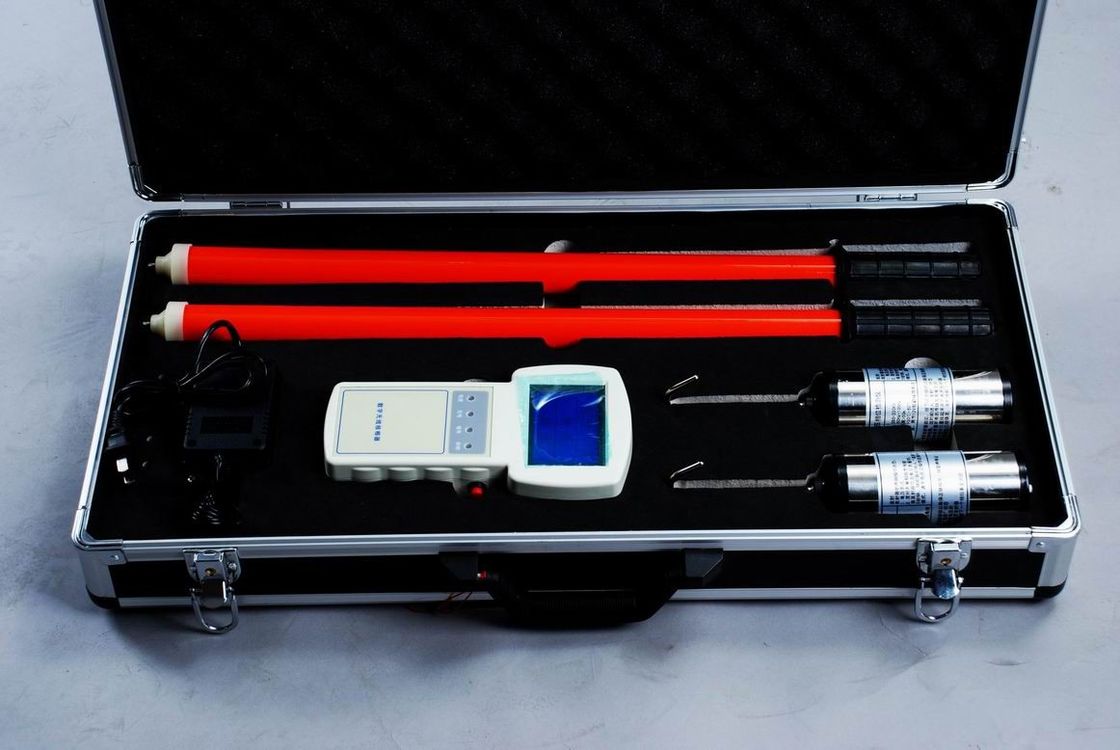

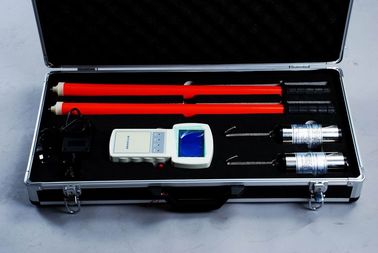

Digital Radio Phase Detector

1.1PRODUCT FEATURES
1. Display: Phase angle, frequency, voltage waveform
2. Bring Rechargeable Battery
3. Patented product, Simple maintenance
4. Acquisition of signal is high sensitivity and Good selectivity
5. High-frequency transmission, adaptable and can pass through diaphragm and wall
6. The transmission distance of wireless on air is 20m
7. Operate Easily, Secure and Reliable
8. Electrified verify worksite
9. Voltage class 6000V~220Kv
10. Solidity, low leakage
11. Light weigh and portable
1.2Technique parameter
Voltage class 6000V~220Kv (standard 35KV)
Wireless transmitter distance 20m
Phase measurement accuracy ± 3 Angle
Frequency Accuracy ± 1Hz
Operating frequency 50Hz~60Hz
Power 9V Battery
Environmental temperature -20~+50 degree
Environmental humidity All Season
Phase angle range Phase shift <=± 30° Same phase
Phase shift >± 30° Out-of-phase
Verify self verify, also can verify at the electrified wire
Weight Transmitter 0.52Kg\Receiver 0.2 Kg
Size 76× 200mm
Package aluminum alloy cabinet
