Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase

Large Image : Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase

Product Details:

Place of Origin:	CHINA
Brand Name:	HALLO
Certification:	ISO
Model Number:	LS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	export wooden case
Delivery Time:	10 days
Payment Terms:	by T/T (The contract becomes effective after receiving 30% payment, balance against the copy of B/L)
Supply Ability:	10000 sets

Contact Now

Detailed Product Description

Material:	Stainless Steel	Application:	Powder
Cleaning Type:	Pressure
Highlight:	hopper screw conveyor

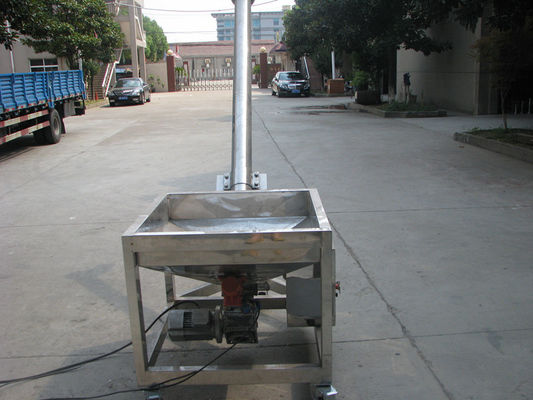

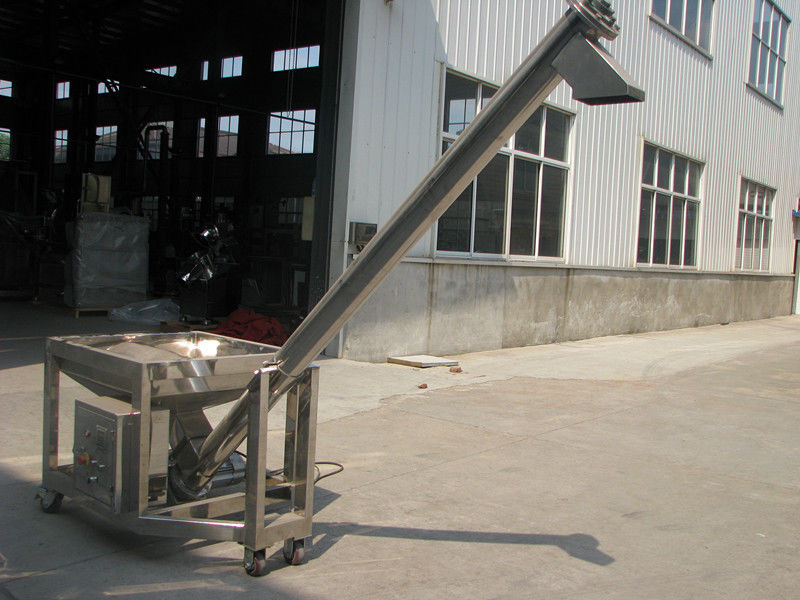

Vibrating Inclined Conveying Machine & Hopper Screw Conveyor 3 Phase

Application:

This machine can convey many different materials, like dry powder,such as coffee powder, wheat flour, condiment and it also fits for some small batches. Combining with the packaging machine of our company, we can present you situation tracing with the above material. It can also be used separately. The whole machine are made of stainless steel of 304 except for the motor.

Main Features

1. The vibrating screw feeding machine equips with double motors:feeding motor and vibrating motor, each of them has its own switch control.

2. Once starts the switch,the hopper would be in continuously vibration which makes the material flow easily and convective. and with different requirement,the size can be changed X cor made according to customer’s requirement.

3. The hopper separates from the twisting shift, designing with the reasonable structure, each part of the conveyor can be taken down easily.

4. With dust-proof characteristic, the hopper won’t be glued or polluted by dust and powder. And the complete machine is made of Ss304 except for the motor.

5. With specific design,it’s very easily and convenient to clean up the residue and leftover,also this equipment can discharge the material reversely, and the storing materials at the bottom of hopper pipe can be easily released from the door once starting the switch.

Working Principle:

LS Series Stainless Steel Hopper Screw Conveyor & Inclined Screw Hopper Loader is conveyor equipment widely used. There are two kinds of screw conveyor
divided from conveying direction, one is horizontal screw conveyor, and another is vertical screw
conveyor. The conveyor is used for loose materials such as all kinds of powders, granules and
small blocks. The screw conveyor is made of steel. There is pipe inside of conveyor and paddles are
spirally welded on the pipe. The materials are passed and conveyed by rotary spiral paddles.

Technical Parameter

Model	Throughput	Sleeve Diameter	Screw Diameter	Screw Speed	Motor Power
LS-50	5-10 L/min	50mm	20mm	140r/min	0.2kw
LS-60	10-20 L/min	60mm	25mm	140r/min	0.4kw
LS-80	15-30 L/min	76mm	30mm	140r/min	0.75kw
LS-100	20-40 L/min	100mm	50mm	140r/min	1.5kw
LS-130	30-50 L/min	133mm	60mm	140r/min	2.2kw
LSJ-160	40-80 L/min	168mm	76mm	140r/min	2.2kw
LSJ-200	60-100 L/min	219mm	76mm	140r/min	3.7kw
