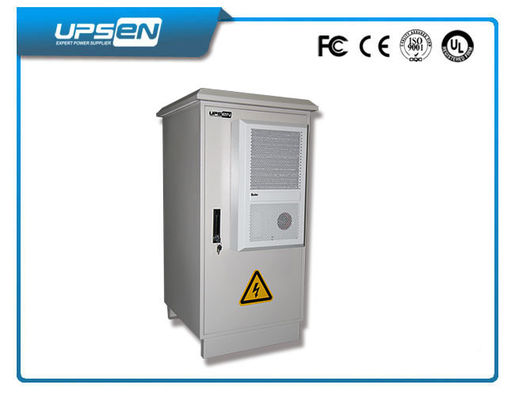

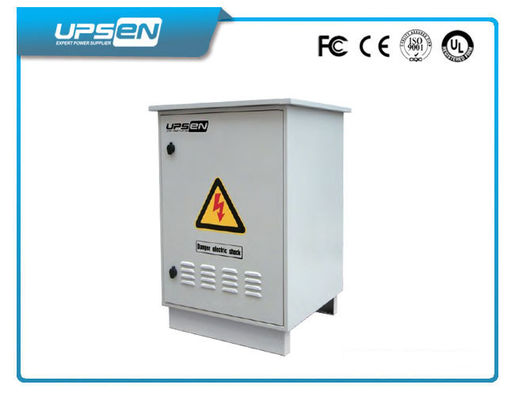

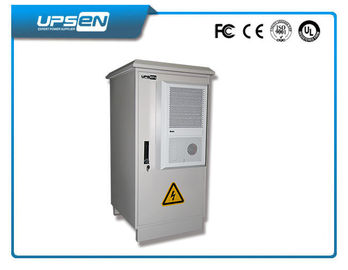

2KVA / 1400W IP55 Double Conversion Online UPS for Outdoor Telecom / Network Equipments
Model: Outdoor Online UPS Top Star Series 1K-100Kva (1ph in / 1ph out) (3ph in / 1ph out) (3ph in / 3ph out)
Outdoor UPS Quick View
1. Outdoor UPS with Pure Sine Wave Output
2. Outdoor UPS with Both Single Phase and Three Phase Input Output
3. Outdoor UPS can be used in bed enviroment like high temperature (+50 ° C) / low temperature (-15 ° C), severe dust,
moisture, rain, mist erosion situation
KEY FEATURES:
1. Providing with pure sinewave power for outdoor telecom and network equipment.
2. Be suitable for outdoor severe Temperature,Humidity and harsh Environment, especially can meet the outdoor electric network requirements. (Outdoor environment is severe and quality of electric network also is so bad . For example outdoor high temperature is 50 and severe winter is 40,Voltage range is from 160V to 260V even easily change )
3. Adopting sealed natural cold design, high-temperature resistant ,cold resistant and corrosion resistant,that degree of sealing is IP55 .
APPLICATIONS :
1. Providing with outdoor complete integrated communication cabinet.
2. According to customers requirement to produce,.achieving integrated solution products.
3. Making the best of vacant areas resources without equipment room , reducing the period of setting up communication network. and cutting down project costs.
4: Mainly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 ° C) / low temperature (-15 ° C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.
|
Top Star Series
|
|
Model
|
|
T1K
|
T2K
|
T3K
|
T6K
|
T10K
|
|
Capacity
|
Capacity
|
1KVA/700W
|
2KVA/1400W
|
3KVA/2100W
|
6KVA/4200W
|
1000KVA/7000W
|
|
Input
|
Nominal voltage
|
220/230/240VAC
|
|
Nominal frequency
|
50/60HZ
|
|
Voltage Range
|
115~295VAC(± 3VAC)
|
176~297VAC(± 3VAC)
|
|
Frequency Range
|
50HZ(46~54HZ), 60H(56HZ~64HZ)
|
|
Power Factor
|
0.98
|
|
Output
|
Voltage Precision
|
220/230/240X (1± 2%)VAC
|
|
Frequency Precision
|
50/60HZ± 0.05Hz
|
|
Power Factor
|
0.7
|
|
THDI
|
< 3% (Linear load) < 6% (Non-linear load)
|
|
Overload Capability
|
Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode.
|
|
Crest Factor
|
3:1
|
|
Transfer Time
|
0ms(AC to DC )
|
|
Battery
|
DC Voltage
|
36VDC
|
96VDC
|
96VDC
|
240VDC
|
240VDC
|
|
Charge Current
|
4A/8A(optional)
|
4.2A
|
4.2A
|
|
Internal Battery Capacity
|
(38/65/80/100AH/120AH)optional
|
|
Panel Display
|
LED/LCD Digital Display
|
Display input and output voltage, frequency, battery voltage, battery capacity, load percentage
|
|
Communications
|
Communicate Interface
|
RS232, SNMP card(optional)
|
|
Enviroment
|
Temperature
|
0~40° C
|
|
Humidity
|
0~95% Non-condensing
|
|
Storage Temperature
|
-25° C~55° C
|
|
Altitude
|
< 1500m
|
|
Acoustic Noise ( within 1 meter)
|
< 50dB
|
|
Physical
|
Weight(KG)
|
85
|
125
|
125
|
150
|
155
|
|
Dimensions (LxWxH)mm
|
900×640×900
|
900*640*1185
|
900*640*1185
|
940*940*1770
|
940*940*1770
|
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
