melting furnace

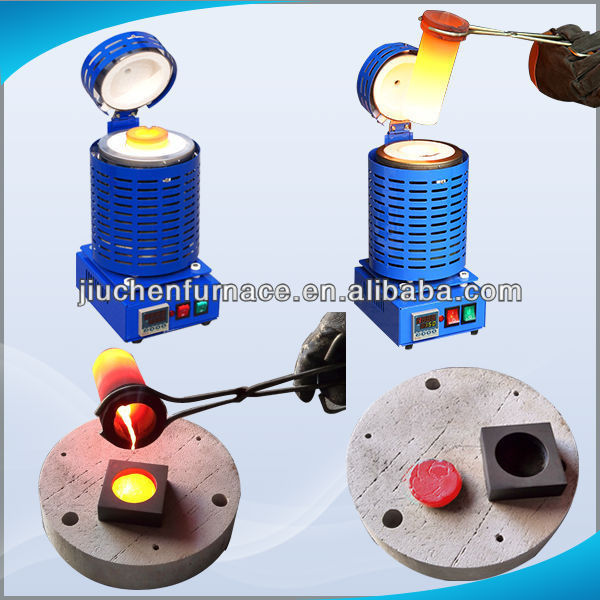

【JC 110V vertical type melting furnace】

Product Description：

JC 110V Series of melting furnaces are suitable for Single Phase 110V~130V AC voltage.

It is widely used in melting gold, copper, silver and other noble metals, metallurgy, petroleum , chemical , laboratory, heat-treatment with melting temperature less than 1150°C/2012F.

The characteristic of this furnace is small size ,light weight, easy operation and accurate temperature control.

Our product has got Quality System Certificate, CE Certificate, utility model and design patent.

This series of furnace has three types: JC-A, JC-K,JC-S

Product Classification:

We supply JC-A, JC-K, JC-S models to meet different requirements of the customers:

K Series: The working temperature is from 20C (68F) to 1200C (2192F), the customer can set any temperature between this range.

It can meet ordinary melting and heat-treatment requirements.

A Series: This series of furnaces can provide 50 segments program control which can be set in any slope. It means that the customer can control the speed of Heating up and cooling off.

It support RS485 、 RS232 communication interface, can be connected with computer, Split-type Paperless recorder.

The precision of the temp control is 0.1C it can meet high precision control requirement for Laboratory and Scientific research.

S Series:The capacity of this series is from 10kg to 100kg, it can meet the medium-sized melting requirements of Steel, chemical industry.

Technical Parameter of JC-K-110 Series:

Advantages of JC Electric Melting Furnace:

1. Light weight and small volume;
2. High efficiency of refining;
3. Easy installation and operation;
4. Fast speed of raising temperature, the temperature is constant;
5. Safe and environment-friendly operation;
6. Complete Protection: Equipped with over-voltage, over-current, over-heat, water shortage device which control and protect automatically;

7. Insulated lid holds heat in and keeps oxygen out for a cleaner melt.

8. You can melt pure silver & gold or alloys such as sterling silver, 14k gold 18k gold up to pure.

9. The melting furnace has features with small size (170*200*350mm), light weight (N.W.4.5kg), easy operation, fast heating , high efficiency.

Delivery with: 1 kg crucible, 1 crucible handling tongs, 1 eye protective wear, 1 heat resistant glove,1 manual instruction,1 warranty card.

Graphite Crucibles (1-3kg can be equipped with our furnace at the same time. If choose 4kg crucible, only 4kg crucible use for one furnace)

Notes:

A. The average service life of the crucible is 20-25 times, so please change the crucible in time to prevent the crucible be broken during melting.

B. When the furnace heated up to the setting temperature, the temperature will not hold on this temperature at once, this is normal phenomenon, 2-3 mins later, the temperature will stable.

C. Before pouring solution, we advice the customer put out the crucible and let it cool down for some seconds first.

D. When the customer use the furnace for the first time, it maybe appears slight white smoke with odor, this is normal phenomenon caused by organisms-burning, it will disappear after use 2-3 times.
