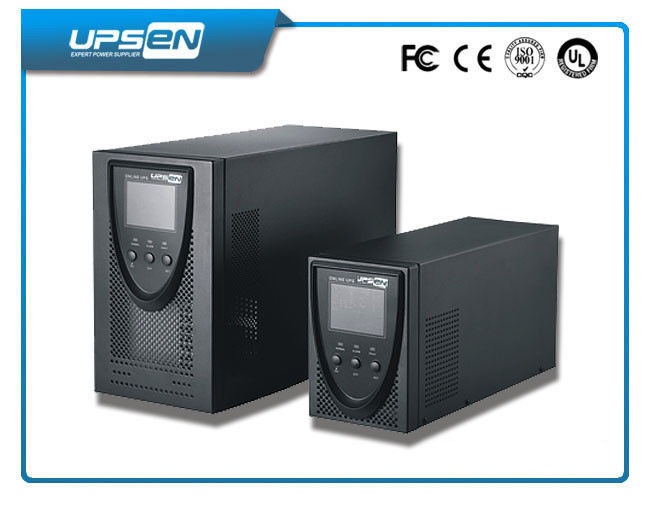

1000W 2000W 3000W 110Vac Online UPS Single Phase Ups Systems with CE Certificate
Model: High Frequency Online UPS King Star Series 1-10 Kva (1ph in/1ph out)
UPS Overview
1: UPS with 1 phase 110Vac 120Vac input and output
2: UPS with double conversion tech and pure sine wave output
3: UPS with IGBT and DSP Tech
4: UPS 50hz or 60hz frequency for choice
5: UPS with Smart RS232 (USB, Dry contact, SNMP card optional)
Application
It’s not only high stable but also with excellent performance.
Perfect Application: Network, data centre, servers and workstations, control system, communication system and office etc.
Key Features
1. Output power factor 0.9,offering more stronger load capability;
2. Online double conversion with DSP control
With excellent performance and comprehensive protections for load and UPS ;
3. Self-diagnosis when UPS start up
4. Wide input range, support kinds of generator
5. Battery configuration flexible, 1KVA-24/36V, 2Kva-48/72/96V,3Kva-72/96V etc.
6. Cold start(DC power on)
7. ECO function, Economic function (Optional)
8. Compact design and less noise
9. Lightening and Surge protection 1050J
10. Fan speed varies according to load automatically
11. Smart RS232 (USB, Dry contact, SNMP card optional)
12. Manual bypass (optional)
Technical Specification
|
Model
|
K1K
|
K2K
|
K3K
|
|
Capacity
|
Kva/Kw
|
1Kva/0.9Kw
|
2Kva/1.8Kw
|
3Kva/2.7Kw
|
|
Input
|
Voltage
|
Low transfer
|
85Vac± 3% (Ph-N) @100% load , 65Vac± 3% (Ph-N) @50% load
|
|
Low back
|
95Vac(Ph-N) @ 100% load ; 75Vac (Ph-N) @50% load
|
|
High transfer
|
110/120/127Vac:155V± 3%
|
|
High back
|
110/120/127Vac:142Vac± 3%
|
|
Frequency range
|
45-55Hz at 50Hz/55-65Hz at 60Hz(auto-detect)
|
|
Phase
|
1:1phase ,L+N+G
|
|
Current THDI
|
<6%(100%nonlinear load)
|
|
Power Factor
|
≥0.99
|
|
Generate Input
|
Support
|
|
breaker
|
7A
|
16A
|
25A
|
|
Output
|
Voltage
|
110/120/127(1-3Kva)
|
|
Power Factor
|
0.9 (0.8 optional)
|
|
Voltage regulation
|
± 2%
|
|
Frequency(Line Model)
|
46-54Hz at 50Hz/56-64Hz at 60Hz
|
|
Frequency(Battery Mode)
|
50/60Hz ± 0.02Hz
|
|
Current Crest Ratio
|
3:01
|
|
Harmonic Distortion
|
≤3% THD(Liner Load)
|
|
≤5% THD(Non-Liner Load)
|
|
Output waveform
|
Pure Sine wave
|
|
Outlet
|
Sockets(Optional)
|
Terminals
|
|
Overload Capacity
|
105%<load<125% for 1 mins ,125%<load<150% for30sec
|
|
Efficiency
|
AC Mode
|
Full Load≥89%
|
|
Battery Mode
|
Full Load≥86%
|
|
ECO Mode
|
Full Load≥95%
|
|
Battery
|
Number of Battery Per Set
|
2-3
|
2004-6-8
|
2004-6-8
|
|
Battery Type
|
Sealed, lead-acid, maintenance-free
|
|
standard model: 12V/7AH OR9AH inbuilt
|
|
long run model: battery external, capacity optional
|
|
Back Time
|
Standard unit:
|
Standard unit:
|
Standard unit:
|
|
5-12mins;
|
8-18mins;
|
5-12mins;
|
|
Long-run unit:
|
Long-run unit:
|
Long-run unit:
|
|
depends on external battery
|
depends on external battery
|
depends on external battery
|
|
Recharge Time(to 90%)
|
5 Hours
|
5 Hours
|
5 Hours
|
|
Charge Current(standard unit)
|
1.0A
|
1.0A
|
1.0A
|
|
Charge Current (long run unit)
|
7.0A
|
7.0A
|
7.0A
|
|
Rated Battery Voltage
|
24/36vdc
|
48/72/96vdc
|
48/72/96vdc
|
|
Protect
|
Over-Voltage/Over-current/Low-voltage
|
|
Battery Socket
|
Anderson like PowerPole Modular Connectors
|
|
Transfer Time
|
Mains←→Battery
|
0ms
|
|
Mains←→Bypass
|
0ms
|
|
Optional Features
|
Economic Mode(ECO Mode)
|
Support
|
|
Indicator
|
LCD Version (with LED)
|
Load/Battery/Input/Output/Operating Mode Information etc.
|
|
Audible Alarm
|
Battery Mode
|
Sounding every 4 seconds
|
|
Low Frequency
|
Sounding every second
|
|
Overload
|
Sounding twice every second
|
|
Fault
|
Continuously Sounding
|
|
Physical
|
Unit Dimension (D*W *H)mm
|
420*144*215
|
475*191*340
|
475*191*340
|
|
Packing Dimension (D*W *H)mm
|
524*258*334
|
557*286*435
|
557*286*435
|
|
Standard Unit Net /GrossWeight(kg)
|
12-13
|
30/32
|
30/32
|
|
Long-run unit Net /GrossWeight(kg)
|
7-8
|
15/17
|
15/17
|
|
Operating Environment
|
0-40°C
|
|
Relative Humidity
|
0-90%(non-condensing)
|
|
Altitude
|
<1500m.when>1500m,derating
|
|
Noise Level
|
<55db at 1 Meter
|
|
Interface
|
Smart RS-232;USB,Dry contact board,SNMP(independent to RS232)
|
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
