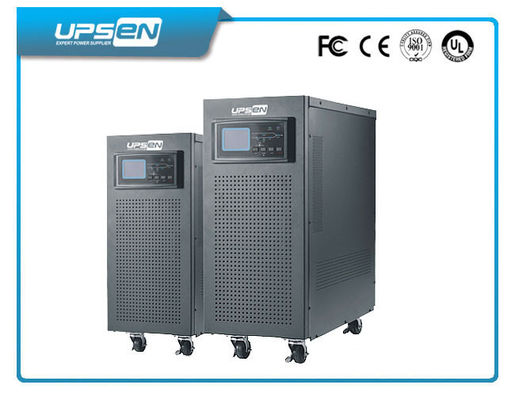

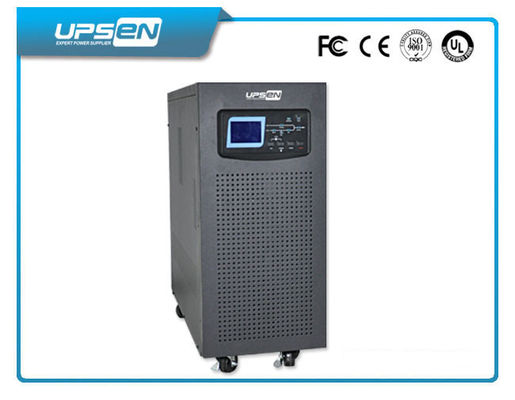

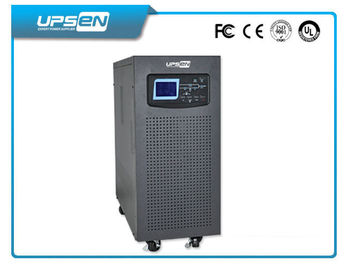

120V / 208V / 240Vac 2 Phase Double Conversion Online UPS Power Supply with PF 0.99
High Frequency Online UPS Super Star Series 6-20Kva (2ph in/2ph out)
UPS Overview
1: UPS with 2 Phase 120V 208V 240Vac output especially used for Colombian Market
2: UPS is made in China with CE ISO and ROHS Certificate
3: UPS with capacity 6000va 10000va 15000va 20000va
4: Wide input range and PFC Function
5: N+X parallel redundancy, up to 6units
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…
Key Features:
1. DSP control, with excellent performance and comprehensive protections for loads;
2. Output power factor 0.9, offering stronger load capability;
3. Intelligent fan speed control, with 4 levels varying to load and temperature;
4. Wide input range, support kinds of generator;
5. Dual input AC source supportable
5. EPO (emergency power off);
6. Event log up to 100 events, recording UPS running time and critical memories;
7. Configurable output both 120/ 208/240Vac
8. N+X parallel redundancy, up to 6units
9. AC and cold start function;
10. Human friendly large LCD, with plenty operation information
11. Conformal coating PCB for more critical operation environment
12. Frequency convertor mode (input 60Hz, output 50Hz)
13. Intelligent fan running, varying according to load and temperature, 4 levels;
14. Multiple communication ports (optional)
15. Intelligent 10A DSP charger (optional)
Technical Specification
| Model |
S6KL |
S6K |
S10KL |
S10K |
| Capacity(Kva/kw) |
6KVA/5.4KW |
10KVA/9KW |
| Input PF |
≥0.99 |
| Input voltage |
Phase |
2Lines |
| Low |
L-L:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load |
| transfer |
| Low back |
L-L188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load |
| High transfer |
L-L 286 VAC ± 3% |
| High back |
L-L:270 VAC ± 3% |
| Input frequency |
40-70hz |
| Battery |
| quantity |
external battery |
20PCS*12V*7Ah |
external battery |
20PCS*12V*9Ah |
| Back up time |
depend on external Battery |
7mins at full load |
depend on external Battery |
5mins at full load |
| DC voltage |
240Vdc |
| Charge voltage |
275Vdc |
| Recharging current |
4A(10A optional) |
1A |
4A(10A optional) |
1A |
| Output |
| Output P.F |
0.9 |
| Output voltage |
120/208/240Vac +/-1%(static) |
| Frequency |
46~54Hz or 56~64Hz (Line mode) |
| 50/60Hz ± 0.1Hz ( Battery mode) |
| Crest factor |
3:1(max) |
| Wave distortion |
Less than 2%(linear load), Less than 4% Non-linear load |
| Over load |
105% |
| Efficiency |
88%(Line mode) |
| 87%(AC mode) |
| Transfer time |
0ms (AC-Battery); |
| 0 ms(bypass-inverter) |
| Indicator |
| LCD Panel |
UPS status, Load level, Load watt, Load VA, Battery level, Input/Output voltage, output current, Bus voltage, Temp, and warning and fault code and events |
| Alarm |
| Battery Mode |
Sounding every 4 seconds( can mute) |
| Low Battery |
Sounding every second |
| Overload |
Sounding every second |
| Fault |
Continuously sounding |
| Management |
| Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC |
| Optional |
SNMP/AS400/USB |
| Environment |
| Operation Humidity |
0-90 % RH (non-condensing) @ 0- 40°C |
| Noise Level |
Less than 55dBA @ 1 Meter |
Less than 60dBA @ 1 Meter |
| Physical |
| Net Weight (KG) |
70 |
110 |
130 |
180 |
| Gross Weight (KG) |
95 |
135 |
155 |
205 |
| Unit Dimension (D*W*H)mm |
509*250*530 |
600×300×810 |
600*300*742 |
600*300*892 |
| Packing (D*W*H)mm |
650*363*765 |
680*360*960 |
720*420*920 |
720*420*1070
|
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
