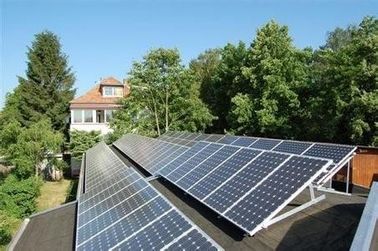

Off grid Solar power generator system 1500W/1.5kw solar panel + battery + inverter
1.Output 220 AC;
2.Support continuously use an32 inches LCD TV for 15 hours,but use it for 5-6 hours per day is recommended.
3.Available for Washing Machine;
4.Available for a rice cooker working once a day;
5.Available for a Refrigerator whose Power Consumption no more than 1KW a day;
6.Available for a Refrigerator whose daily Power Consumption no more than 1KW;
7.Provide 5-6 solar lamps working at the same time;continuously use about 15 hours;
8.City Power Complementary function.
Solar water pump system for home & irrigation
1. New type of solar power generator without battery
2. Don’t use the battery for whole system, which can decrease the cost of use and maintenance
3. Increase the efficiency of solar power generator, the efficiency can reach 98% up.
4. Use the MPPT technology, can adjust the power of pump according to the sunlight strength.
5. The working time can reach 7-10 hours (the working time will be effective by radiation strength at local).
Household solar water pumping system
| Model | B60-60 | B80-60 |
| Lift | 60M | 60M |
| Input Voltage | 24V | 24V |
| Size | 1100*76mm | 1150*76mm |
| Intake | 76mm | 76mm |
| Outlet | 32mm | 32mm |
| Flow | 10L/min | 40L/min |
| Rotation Speed | 18000/rpm | 18000/rpm |
| Cable length | 5M | 5M |
| Protechtion Class | IP68 | IP68 |
Agricultural solar water pumping system
380V Three Phase Solar water pump system
| Pump power(KW) | Solar panel power(W) | Inverter(KW) | Flow(M³)/h/Lift(M) |
| 1.5 | 2250 | 1.5 | 3M³/h/88M, 4M³/h/80M, 5M³/h/52M |
| 2.2 | 3300 | 2.2 | 3M³/h/136M, 4M³/h/100M, 5M³/h/53M |
| 3 | 4500 | 3.7 | 3M³/h/167M, 4M³/h/140M, 5M³/h/100M |
| 4 | 6000 | 4 | 3M³/h/200M, 4M³/h/180M, 5M³/h/120M |
| 5.5 | 8250 | 5.5 | 3M³/h/280M, 4M³/h/255M, 5M³/h/200M |
| 7.5 | 11250 | 7.5 | 3M³/h/398M, 4M³/h/340M, 5M³/h/268M |
220V Single Phase solar water pump system
| Pump power(KW) | Solar panel power(W) | Inverter(KW) | Flow(M³)/h/Lift(M) |
| 0.37 | 555 | 0.4 | 1M³/h/47M, 1.5M³/h/43M, 2.1M³/h/34M |
| 0.55 | 825 | 0.75 | 3M³/h/38M, 4M³/h/32M, 5M³/h/25M |
| 0.75 | 1125 | 0.75 | 3M³/h/55M, 4M³/h/48M, 5M³/h/36M |
| 1.1 | 1650 | 1.1 | 3M³/h/67M, 4M³/h/60M, 5M³/h/40M |
| 1.5 | 2250 | 1.5 | 3M³/h/88M, 4M³/h/80M, 5M³/h/52M |
| 2.2 | 3300 | 2.2 | 3M³/h/108M, 4M³/h/92M, 5M³/h/83M |
Solar street light system
| Specification | Solar Panel | Controller | LED lamp |
| 4M solar street lamp | 60W | 12V/5A | 15W |
| 6M solar street lamp | 100W | 12V/10A | 30W |
| 9M solar street lamp | 100W | 24V/10A | 60W |
Advantage:
1. No line voltage, trenching, or metering
2. Immune to power outages
3. Battery backup for cloudy days
4. Distributed light and power – no single point of failure for enhanced security
5. Easy to install with quick connect plugs – less than 1 hour
6. No scheduled maintenance for up to five years
7. No cost of replacing concrete, asphalt or landscaping
8. No cost of transformers and meters to be added for electric service
9. No monthly electric bills
10. Controlled charging to prolong battery service life
11. Environmentally friendly-100% powered by the sun, solar panels reduce fossil fuel consumption, eliminating pollution
12. Self-contained solution - Light on/off controlled by automatic daylight sensing or hour preset, no running and maintenance cost
13. Better light source- LED lights feature cool white light without flickering and higher brightness than sodium lights
14. Safe 12 volt/24 volt circuit, no risk of electric shock
Other product:
♦ Solar panels
♦ Solar battery
♦ Charge controller
♦ Inverter
♦ LED light
Service:
Professional engineer offer customized solar pump system
Lifetime quality guarantee
