Input Voltage: | AC85V-265V | Usage: | High Way,street, Roads,gas Stations,parking Lot,, Parks |
---|---|---|---|
Led Power: | 140W / 160W | ||
Highlight: | commercial lighting fixtures |

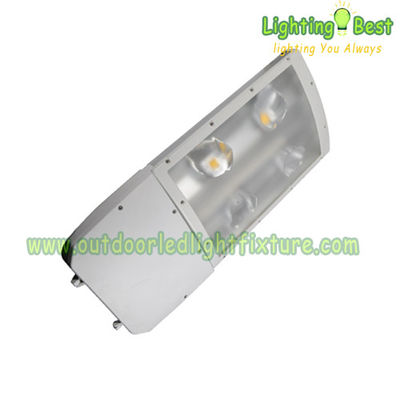

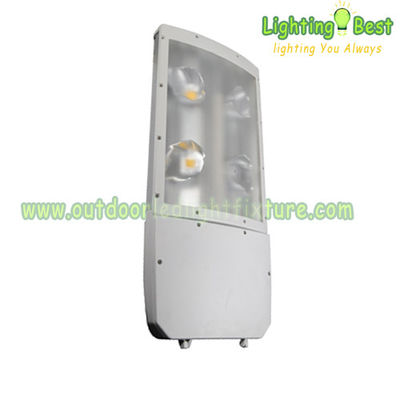

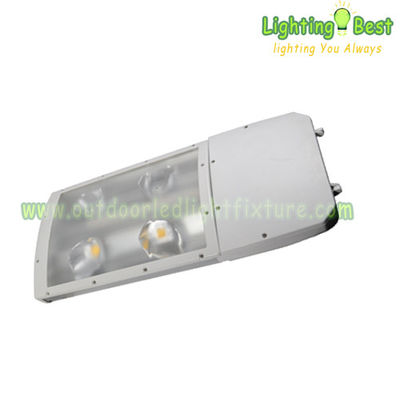

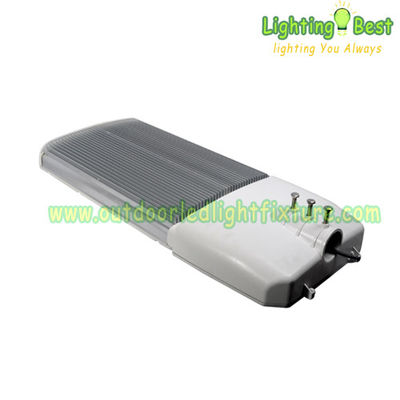

popular style led street light fixture 140w 160w solar powered with super bright led chip meanwell driver
Applications:
Specifications:
Input Voltage |
AC85V-265V |
|
Frequency Range |
50Hz--60Hz |
|
Harmonic Distortion |
≤15% |
|
power Factor |
>0.95 |
|
Power Efficiency |
>87% |
|
Working Voltage |
DC30-36V |
|
led quantity |
1pc |
|
Led Power |
140W / 160W |
|
Lamp Total Power |
158W / 178W |
|
LED Chip |
Epistar or Bridgelux |
|
LED luminous efficiency |
90±5lm/w or 100±5lm/w |
|
lamp's Efficiency |
>80% |
|
Average Illuminance Intensity(160W) |
Height 8M |
33.5 lux |
Height 10M |
30.1 lux |
|
Height 12M |
28.2 lux |
|
Illuminance Uniformity |
>0.5 |
|
Correlated Color Temperature |
WW |
2700k--3200k |
PW |
3900k--5000k |
|
CW |
5800k--6200k |
|
Color Rendering Index |
WW |
Ra>68 |
PW/CW |
Ra>75 |
|
Light Distribution |
Symmetric /Circular light spot |
|
Light Design |
LED + Reflector |
|
Working Temperature |
﹣40° ~ +45° C |
|
Storage Temperature |
﹣40° ~ +65° C |
|
IP Grade |
IP65 |
|
Working lifespan |
50.000H |
|
Power cable |
0.75mm² trifurcating cable |
|
Connect wire |
L Power line |
|
N Null line |
||
G Earth line |
||
Lamp Shell Color |
White |
|
Certificate |
CE, ROHS, |
|
Lamp weight : G.W./N.W. |
13.5 kg/12.8 kg |
|
lamp packing dimension |
845x240x385 mm |
|
Structure dimension (mm) |
Light distribution curve |
More Detail:
1, Adopt high bright imported single integrated(COB) LED chip as light source, with good heat dissipation , low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.
2, Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body’s temperature, ensure the life of LED chip and power driver.
3, The heat sink surface have conducted anodic oxidation anticorrosive process., compact layout and beautiful, corrosion resistant, water proof and dust proof.
4, Apparent energy saving effect, use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
5, Eco-friendly non-pollution, no pollution elements such as lead and mercury, non pollution to environment.
6, No UV & IR, good color rendering, truly present subject’s actual color. Color temperatures are optional, meet different environment’s requirement, eliminating the depression caused by traditional lamps’ either high or low color temperature, visually more comfortable, and improve working efficiency.
7, Adopt constant current constant voltage power driver, apply to wide voltage(AC85V-270V), overcome the problems like unstable and shaky light, sound pollution and generating power grid cause by ballast, avoid eye stimulation and fatigue during the work.
8, Excellent adornment effect, use special surface treatment technology, various apparent colors available, easy installation and demolition, wide range of application.
