Intelligent Double Conversion IGBT DSP Modular UPS Uninterruptible Power Supply For Servers

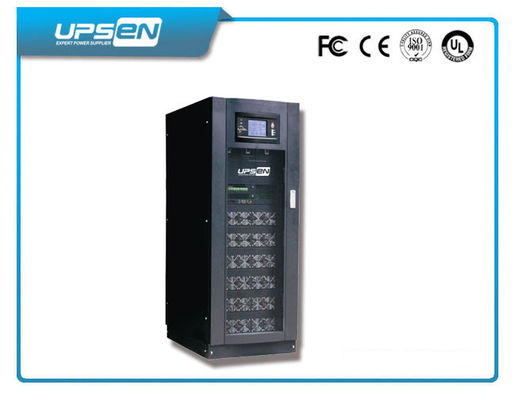

Large Image : Intelligent Double Conversion IGBT DSP Modular UPS Uninterruptible Power Supply For Servers

Product Details:

Place of Origin:	China
Brand Name:	UPSEN
Certification:	CE, ISO, RoHS
Model Number:	Modular Star Series 10-200Kva

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiation
Packaging Details:	Cartons & Wooden Pallet
Delivery Time:	7-15 Days
Payment Terms:	T/T, LC, WU, Money Gram etc
Supply Ability:	50,000pcs/Month

Contact Now

Detailed Product Description

Type:	Modular Online	Output Power Factor:	0.8
Phase:	Three Phase	Protection:	Over Load/Current/Voltage, Short Circuit Etc
Display:	Digital LCD Display	H.S. Code:	8504402000
Highlight:	computer uninterruptible power supply

Intelligent Double Conversion IGBT DSP Modular UPS Uninterruptible Power Supply For Servers

Model: Modular Online UPS Power Melody Star Series (1ph in/1ph out, 3ph in/3ph out)

Modular UPS Quick View

1: Double DSP controller for individual power module

2: Modular design and hot swappable

3: Intelligent module and system protection design

4: UPS with 3 Phase 208vac 220Vac or 380Vac 400Vac 415Vac Input and Output

Key Features

● UPS with Modular design and hot swappable.
● IGBT modules rather than discrete components are applied in the power module.
● Intelligent module and system protection design.
● Double DSP controller for individual power module.
● Strong load adaptability for linear and nonlinear load.
● Large touch screen LCD with plenty of information.
● Incredible low noise system design.
● Digital paralleling technology, very low circle current between modules.
● Digital control for the whole parts including rectifier, inverter, charger and discharger.
● Independent charger for batteries, intelligent battery management system.
● Totally front access, top and bottom cable connection.
● Inbuilt power distribution for input and output connection.
● Each individual module is configured with independent controller, avoid single point failure risk.

MS Series 10K-200Kva
Capacity	10-200KVA
Main Input
Input voltage	380V/400V/415V(line to line)
Input frequency	50/60Hz
Power factor	> 0.99
Input cuurent THD(Total Harmonic Distortion)	< 3%
Input voltage window	-40%~+25%
Frequency window	40-70HZ
Battery
Battery voltage	± 240VDC
Charger power	20%*Power
Charger voltage precision	1%
Bypass
Bypass voltage	380V/400V/415V, three phase
Bypass voltage window	-20%-+15%, full load, settable
Bypass overload capabiltiy	150%, long time operation
	180%, shut down after 10 minutes
	> 180%, shut down after 200ms
Output
Output voltage	380V/400V/415V, three phase
Voltage precision	± 0.5% (balance load), ± 1% (unbalance load)
Voltage THD(Total Harmonic Distortion)	THD< 1%(linear load), THD< 3%(nonlinear load)
Power factor	0.8
Phase tolerance	120° ± 0.5° (balance and unalance load)
Crest factor	3: 1
Overload capabiltiy	110%, transfer to bypass after 1hour
	125%, transfer to bypass after 10 minutes
	150%, transfer to bypass after 1 minute
	> 150%, transfer to bypass after 200ms
System
System efficiency	Normal mode: 95%
	ECO mode: 99%
Battery mode efficiency	95%
Display	LCD+LED, Touch screen and keyboard
IP class	IP20
Interface (Communication Ports )	RS232, RS485, Dry contacts, SNMP card, EPO, Generator interface
Installation/Connection	Top or bottom cable connection
Operation temperature	0-40C
Storage temperature	-25~70C
Relative humidity	0-95% (non-comdensing)
Noise(dB)	< 55dB
Weight(KG)	6-module cabinet	150KG
	10-module cabinet	180KG
	Module	10KVA: 20KG
		15KVA: 21KG
		20KVA: 22KG
Dimension(WDH)(mm)	6-module cabinet	6009001600
	10-module cabinet	6009002000
	Module	400600133 (10KVA/15KVA/20KVA)

Competitive Advantages:

1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products

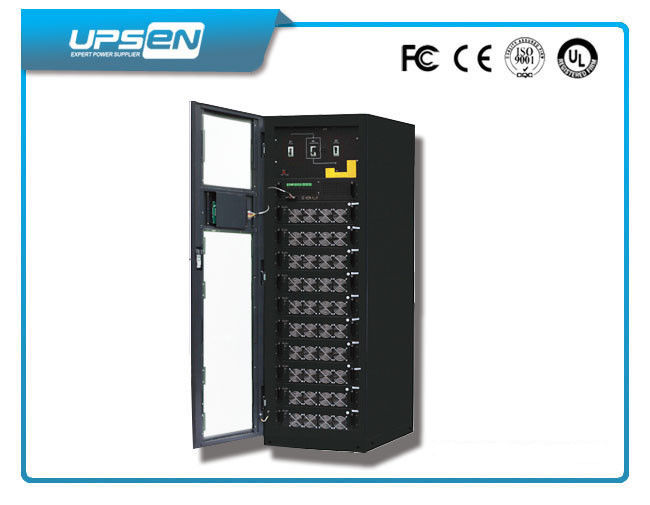

Intelligent Double Conversion IGBT DSP Modular UPS Uninterruptible Power Supply For Servers 0
