Model

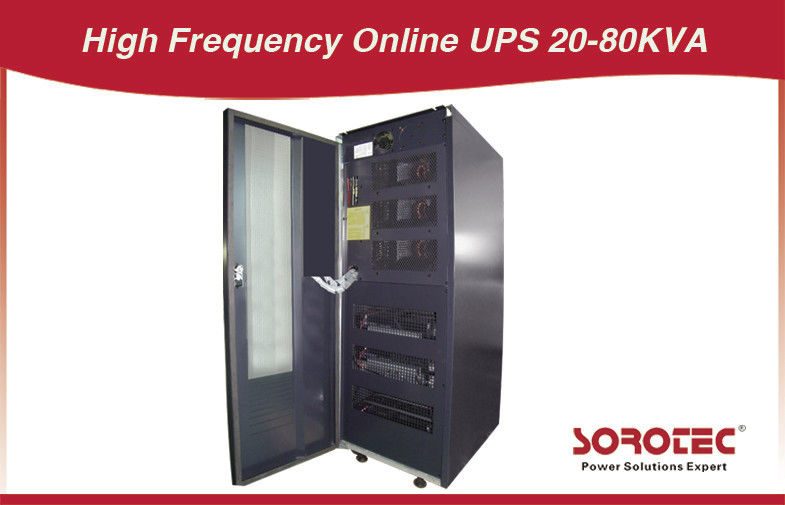

HP9330C 20-80KVA

20K

20K-XL

30K-XL

40K-XL

60K-XL
ISO

80K-XL
ISO

Rated Capacity

20KVA/16KW

30KVA/
24KW

40KVA/
32KW

60KVA/
48KW

80KVA/
64KW

Rated Voltage

220VAC/208VAC Three-phase
4 line + earth line

Rated Frequency

50/60HZ

Input

Voltage range

380VAC±25%

Frequency range

50/60HZ±5%

Wiring

Twin- channel line input

THDI

＜3%

Power factor

＞0.99

Output

Voltage precision

208VAC (±1%)；Three-phase 4
line + earth line

Frequency precision

50/60HZ±0.2%

Power factor

0.8

 Current crest ratio

Overload capacity

≤110%for 60 minutes；
≤125％ for 10min；
≤150％ for 1min；

    Battery

Charging current

0.5~4.5A(adjustable)

Backup time

7mins

Determined by the amount
of external-connected cells

Quantity

28/30/32(selective)；
compatible to battery
share in the parallel mode

Efficiency

Line mode/BAT mode

94%

ECO mode

98%

Indication

LCD

I/O voltage,  current,  frequency,
BAT voltage,  charging current value,
discharging current value,
fault display,  fault,  warning

Communications

Communication
interface

RS232, AS400, RS485, Service, EPO,
BAT temperature compensation,

Intelligent Slot , SNMP(Option)

Operation
Environment

Temperature

0～40℃

Humidity

0～95% (no dewfall)

Storage temperature

-25℃～55℃

Altitude(M)

< elevation 1500m

Weight

weight(KG)

Net

weight

182.5

82

110

114

282

306

Gross
weight

204

122

160

164

356

380

Dimension
(WXDXH)mm

420 X630 X1240

420 X630 X950

490 X680 X1180

600 X800
X1850
