STM-11 High Power Density 48V DC Monitoring Power Supply

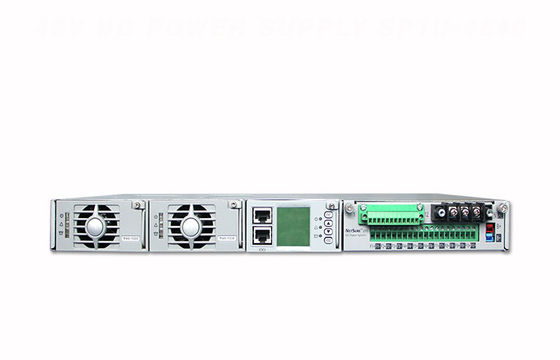

Large Image : STM-11 High Power Density 48V DC Monitoring Power Supply

Product Details:

Place of Origin:	China
Brand Name:	SOROTEC
Certification:	CE,ROHS,ISO9000
Model Number:	Rectifier Modular - SP1U-4840

Payment & Shipping Terms:

Minimum Order Quantity:	USD10000
Packaging Details:	Standard Exported Cartons and Pallets
Delivery Time:	Within 15-30days after receiving your 30% TT deposit
Payment Terms:	30% TT in advance, the balance before shipping
Supply Ability:	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Contact Now

Detailed Product Description

AC Input:	Single Phase 220vac	Maximum Output Current:	40A
Battery Routes:	1*30A Fuse
Highlight:	dc 48v power supply

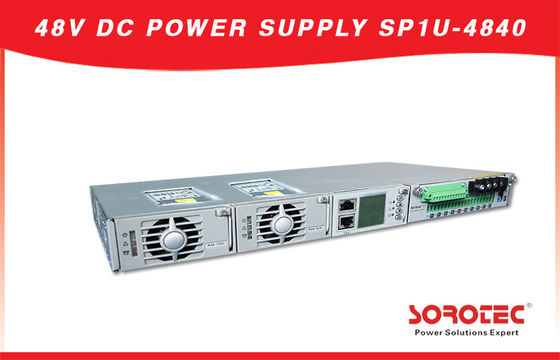

48V DC Rectifier Modular Switch Power SP1U-4840

Key Features:

1.Standard 19inch sub rack with light weight, saving room Space and installation cost.

2.Full front operation, convenient for maintenance.

3.Rectifier comply withEUROHS,ChinaROHS,EMCEN55022Class B while meeting domestic and international standards Such as CE, UL and NEBS.

4.Extra wide input voltage range, strong power grid Adaptability.

5.Wide operating temperature range for rectifier and controller, hot-swappable, online maintenance.

6.The monitoring module can save up to 200pieces of historical alarm records,and10 sets of battery test data records.

7.Perfect battery management effectively prolongs battery service life.

8.RS232port,Ethernet,dry contacts and other communication ports provided, flexible networking is enabled to achieve remote monitoring functions.

9.The system has complete fault protection and fault alarm functions.

Technical Specifications of SP1U-4840 48V DC Switch Power :

Item:	SP1U-4840
Rectifier:	SR4820
Controller:	STM
Numbers of Rec:	2
Dimensions(WDH)mm:	43728943
weight:	7kg
AC input:	Single phase 220vac
AC distributions:	L+N+PE
DC distributions:	10 outputs: 810A 220A fuse.
Maximum output current:	40A
Battery routes:	1*30A fuse
