Product Details:
Payment & Shipping Terms:
|
Type: | Online | Output Power Factor: | 0.8 |
---|---|---|---|
Phase: | Single Phase | Protection: | Over Load/Current/Voltage, Short Circuit Etc |
Display: | Digital LCD Display | H.S. Code: | 8504402000 |
Highlight: | uninterrupted power supply for home |

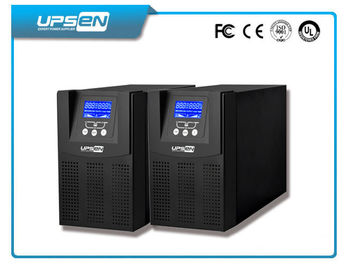

1000W / 20000W / 30000W Pure Sine Wave Uninterruptible Power Supply with AVR Function for Home Appliances Model: High Frequency Online UPS Queen Star Series 1K-20Kva ( 1ph in / 1ph out ) (3ph in / 1ph out )
Key Features:
1: Large Blue LCD digital display for UPS status and operation
2: Pure Sine Wave, Double Conversion Online
3: Wide input voltage range, Zero transfer time
4: Advanced MCU microprocessor control technology
5: Voltage regulator circuit
6: Comprehensive Electrical isolation and bypass protection
7: Input PF correction, reduce the harm of harmonic wave to the power grid, convenient to connect with mini generator.
8: Input N/L Inspection function and date line protection
9: DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.
10: Humanization bypass output, can be adjustable.
11: Smart RS232 communication with monitoring software
12: Protection against over voltage, over load, over current, over charge and so on.
Technical Specification
MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL | ||
Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | |||||
Input | Voltage | 115 - 300Vac | ||||||
Frequency | 40-60Hz / 50-70Hz | |||||||
Power factor | 0.99 | |||||||
Output | Voltage | 220/230Vac(1±2%) | ||||||
Frequency |
Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode) |
|||||||
On-load factor | 0.8 | |||||||
Overload rating | 125% overload,1min | |||||||
Battery | Type | Valve-control lead acid maintenance-free battery | ||||||
Back up time |
> 11min (half load) |
External |
> 11min (half load) |
External |
> 11min (half load) |
External | ||
Rated voltage | 36V | 72V | 96V | |||||
Transfer time | 0 | |||||||
Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC | |||||||
Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 | |||||
Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests. 7: Free OEM & ODM Service
8: Competitive price, quality and mature products
