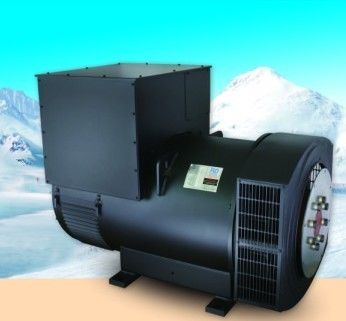

Automatic Voltage Regulator Brushless Synchronous Generator For Generator Set IP23
Quick Detail:
- Brushless alternator with exciter
- Shunt excitation with AVR
- 3 Phase winding 12 wires 2/3 pitch
- Single bearing or double bearing arrangement
- IP23 enclosure
- Prime mover:diesel or engine
Description:
Brushless AC generator 274 series is available in single or double bearing applications,self-excited Automatic Voltage Regulator,adaption adapters offered to SAE 1,2,3 ,10,11.5 and 14.We have in stock with very competitive pricing and best lead times.Please double check with us,we could offer exactly shipping cost for you.In order to make the business simple,quickly ,convenient for you.We could offer competitive price for shipping with any purchase of a Farrand AC generator end from us.
Purchasing a FLD 544 Series from us will include the following specification at no additional cost:
· 4 Poles
· Single Phase or three phase
· power factor 0.8 or 1.0
· 1800rpm or 1500rpm
· 60hz or 50hz
· Available voltage from 170v and up to 454v
· 4 lead alternator
· Winding06 - 4 wire
· Class H insulation
· IP23 enclosure
· High efficiency
· SX440 Automatic Voltage Regulator
· MX341 Automatic Voltage Regulator with PMG
Below you will find all the specific models associated with the FLD274 series.If you have any questions or need pricing please contact us.
For 3 Phase 4 Pole alternators
| Place of Origin |
WUXI CHINA |
Brand Name |
FARRAND |
Model Number |
FLD544E |
| Output Type |
AC Three Phase |
Speed |
1500rpm |
Frequency |
50hz |
| Rated Power |
500kw/625kva |
Rated Voltage |
110V-690V |
Warranty |
12 MONTHS |
| Color |
As your request |
Label service |
available |
OEM series |
available |
| Wire pitch |
2/3 pitch design |
Pretection class |
IP22 |
Insulation class |
H |
| Tem raise |
180 degree |
Material |
100% copper wire |
Features:
1. Optional permanent magnetic alternator , provide invariable excitation in any situation.
2. Easy to be connected with power network or other alternators. Standard 2/3pitch windings avoid excessive neutral current.
3. Dynamically balanced rotors, with single or two sealed ball bearings.
4. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adaptor and single bearing coupling disc.
6. Built to conform to all leading industrial standards.
Our staff of sales and technical support is available to help you in selecting the right protection for your application as well as to provide you with samples of our products for evaluation. At High Five, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Information for AVR:
We have many types of AVR,such us SX460, SX440, SX421, MX341, MX321,etc.
· The main stator provides power for excitation of the exciter field via AVR.
· Output power of exciter's rotor is input to that of mains through 3-phase full wave rectifier.
· Connected with piezoresistance for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss.
· Exciter's Stator is equipped with permanent magnetic steel, it can make generator starting smoothly in any occasions.
Voltage regulation (0.5 %) and low frequency protection, exterior voltage adjustment of SX440, MX341 and MX321 suitable for the generator with permanent magnetic generator (PMG
Competitive Advantage:
1. 100% copper wire
2. Strict quality control system
3. Competitive price
4. Good Service
FAQ
Q. How much will the shipping of my order cost?
Our shipping costs are calculated depending on the total weight and measurement CBM of the items you wish to purchase and your destination.We always do our best to keep the shipping costs to a minimum.Our forwarder has a long contract with us,we can get a big discount for you.
Q.How long does a sample takes?
A. If we have in stock,a sample will be delivered less than 3days.
Usually a sample takes 5 days.Please contact us which type that you needs,we will show you delivery time immediately.
Q.What is the MOQ of the product?
A.Our MOQ can meets your promotional business very well.
Q.Do you accept OEM?
A.Yes,we do.We can match any your samples.
Q.What is the level of ingress protection?
A.Ingress protection 22 standard,IP23 can be choosed.
Q.How many types of AVR do you have?
A.Such as SX460,MX321,MX341,SX440,SX440T,AS440,etc.
Q.How long is your quality guarantee period?
A.All alternators are warranted for 12 months from the notify date of waiting transportation.
