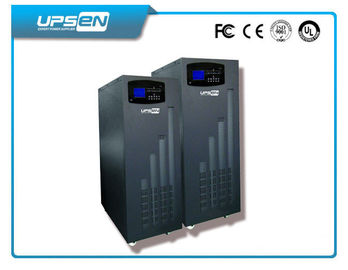

220Vac 230Vac 240Vac 1/1 Phase Low Frequency Online UPS 10Kva - 40Kva with Unbalance Protection
Model: Low Frequency Online UPS High Efficiency Star Series
HE11 6-20KVA(1Ph in/1Ph out); HE31 10-40KVA(3Ph in/1Ph out)
Quick Overview
1: Low frequency UPS with Sixth generation IGBT Tech
2: UPS inbuilt isolation transformer with strong load ability for sensitive loads
3: UPS with ECO Mode
4: UPS with full protection against overload, over voltage, short circuit, over temperature etc
Key Features
1. Pure sine wave output, true online double conversion.
2. Wide input voltage range.
3. With output current isolation transformer.
4. Can be set to ECO mode.
5. Adopt the fourth layer PCB, and SMD technology.
6. Sixth generation IGBT, much higher efficiency, lower temperature, more reliable.
7. Full protection, overload, over voltage, short circuit, over temperature etc.
8. Cold start.
9. Generator compatible.
10. With RS232 and RS485 standard collocate.
11. Option SMMP and dry contact connection
12: Large LCD display in Chinese and English human-machine interface.
13: Low Frequency Model, Support 1ph in/ 1ph out and 3ph in/1ph out AC Voltage, 50/60Hz power system
Application
Telecom, Bank, Bond (Finance/ Insurance), Transportation (Railway & Aviation), Electricity (Power Plant), Industrial (Industry), etc.
Technical Specification
| High Efficiency Strar Series HE11 6K-15K, HE31 10-40K |
| Model |
HE11 6-15KVA |
HE31 10-40KVA |
| 6KVA |
8KVA |
10KVA |
15KVA |
10KVA |
15KVA |
20KVA |
30KVA |
40KVA |
| Capacity |
4.8KW |
6.4KW |
8KW |
12KW |
8KW |
12KW |
16KW |
24KW |
32KW |
| Rated voltage |
220V single phase |
380V three phase 4 wires+G |
| Rated frequency |
50/60HZ |
| AC input |
| Voltage range |
220V±25% single phase |
380V±25% three phase 4 wires+G |
| Frequency range |
50/60HZ±5% |
| Soft strat |
0-100% 5sec |
| Power factor |
>0.92(with input filter) |
| Bypass input |
| Voltage range |
220V±25% singke phase |
380V±25% three phase 4 wires+G |
| Frequency range |
50/60HZ±10% |
| Inverter bypass |
(overload)0ms |
| Output |
| Voltage accuracy |
220V±1%(steady-state load),220V±3%(load fluctuations) |
| Frequency accuracy |
50/60Hz±0.05Hz(battery power) |
| Power factor |
0.8(lagging) |
| Distortion |
<3%(linear load), <5%(non linear load) |
| Steady-state response time |
<10ms |
| Overload capacity |
110%load can run normally 125%10min 150%1min |
| Battery |
| Nominal voltage |
192V |
360V |
| Float voltage |
216V |
405V |
| Cut-off voltage |
168V |
315V |
| Charger current |
1A-50A(According to the battery capacity can be set configuration) |
| Other |
| Display |
LEDLCD |
| Alarm |
Sound and light alarm |
| Protection |
UPS over current,short circuit,under voltage,over temperature |
| Environment |
|
| Noise |
60-65dB |
| Operating |
Temperature0-40°C Relative humidity 0-90% |
| Box color |
Gray (optional) |
| Physical |
| Wight |
Net |
122 |
125 |
143 |
175 |
182.5 |
235.5 |
285.5 |
354.8 |
354.8 |
| (KG) |
Gross |
142 |
147 |
163 |
199 |
225.5 |
268.5 |
325.2 |
389.5 |
389.5 |
| Dimesions W×D×H(mm) |
210×600×560 |
305×586×850 |
350×675×920 |
|
| *Specification is subject to change without prior notice. |
