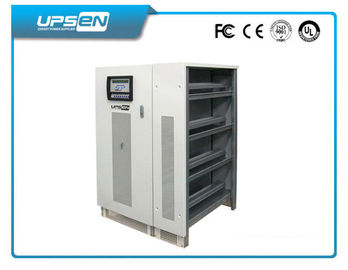

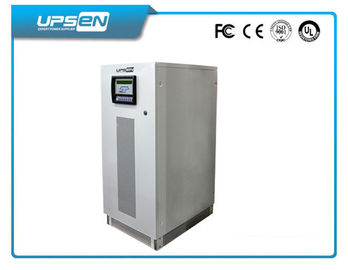

Pure Sine Wave 3 Phase Industrial Low Frequency Online UPS Power Supply with Parallel Function
Model: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)
Key Features
● Pure sine wave output, true on-line dual conversion design
● Adopt 4 layer PCB, and SMD technology.
● High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology
● Touch screen display, with the simple operation and Intuitive data, optional display language and logo.
● Set the work mode on the display directly, UPS mode, ECO mode, EPS mode.
● Intelligent detecting function
● Excellent load featureIt is completely capable to load from 0~100% while no need to change to bypass,
which make sure the output reliable.
● Three phase separately control, realizes the control of instantaneous over~loading balance, so as to
reach 100% unbalanced load.
● Cold start
When mains failure, can directly use the battery to start the ups until the battery discharge to low voltage, when mains recover, can self start UPS.
● Generator compatible
According to the real electric circumstances, UPS can be compatible to the generator, highly improve the generator input efficiency, save the energy.
● Intelligent communication
With RS232 and RS485 standard collocation, optional SNMP and dry contact
● Perfect protection.
Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over
charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.
● Selectable battery inspection module.
Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the
administrator.
● High-powered dynamic feature
Adopt kinds of feedback control such as instantaneous control mode and virtual value, not only reach the high dynamic
adjustment, but also reduce the output voltage distortion.
● ptional input harmonic filter or 12 pulse rectifier
Effectively restrain the input THD,raise UPS input power factor, reduce the input THD current.
● Compatible with generator
● Strong environmental adaptability
● Advanced battery management
● N+X parallel redundancy, Up to 8 units in parallel
● Strong shock resistance ability
● EPO function
Application
large-medium computer data center, industrial process and other mission-critical equipment
| High Efficiency Strar Series HE33 10K-200K |
| Model |
HE33 Series UPS |
| Capacity (VA) |
10K |
15K |
20K |
30K |
40K |
60K |
80K |
100K |
120K |
160K |
200K |
| Noninal output capacity |
8KW |
12KW |
16KW |
24KW |
32KW |
48KW |
64KW |
80KW |
96KW |
128KW |
160KW |
| Operate type |
Double conversion online type |
| Input |
Nominal voltage |
220V/380, 230/400, 240/415V |
| Voltage Tolerance |
380/400/415V±25% |
| Frequency |
50Hz/60Hz±5% |
|
Permitted Frequency
Tolerance
|
±2% (selectable from ±1% to 5% from the front panel) |
| Soft start |
0-100% in 30" (selectable) |
| Input power factor |
0.95(with input filter) |
| Standard features |
Back Feed protection separable bypass line |
| |
Phase |
Three phase +N+G |
| Output |
Voltage |
220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
| Frequency |
50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
| Static stability |
±5% in 19ms |
| Distortion |
Linear load <3%, non linear load<5% |
| Power factor |
0.8 |
| Output wave |
Pure sine wave |
| Crest factor |
3:01 |
| Battery voltage |
Standard battery voltage |
384V |
432V |
480V |
| Floating charge |
432V |
486V |
540 |
| Terminal voltage |
336V |
378V |
420V |
| Charge current |
1A-50A (Can calculate and set according to battery configuration software) |
|
Maximum Discharge
Current
|
28 |
42 |
56 |
85 |
113 |
169 |
225 |
282 |
338 |
381 |
507 |
| Main Function |
Active voltage change |
0-100%±5% |
| Instant recover time |
<10ms |
| Imbalance voltage |
<±5%,<±1%( Balance load voltage) |
| Overload capacity |
125%→10min,150%→1min |
| Static switch |
Automatic |
| Protection |
UPS over current, short circuit, battery low voltage, over heat |
| Cold method |
Compel aeration ( temperature control mode) |
| Noise |
60-65dB |
| Display |
LED,LCD display |
| Remote signalling |
Voltage-free contacts |
| Remote commands |
EPO and bypass |
|
Communication Port
(Optional)
|
double RS232 + remote contacts + 2 communication interface slots |
| Alarm |
Alarm with buzzer and indicators |
| Environment |
Temperature: 0-40C Humidity: 0-90% |
