Rs232 Or Usb 230v Rack Mount Ups 2kva 3kva Uninterrupted Power Supply

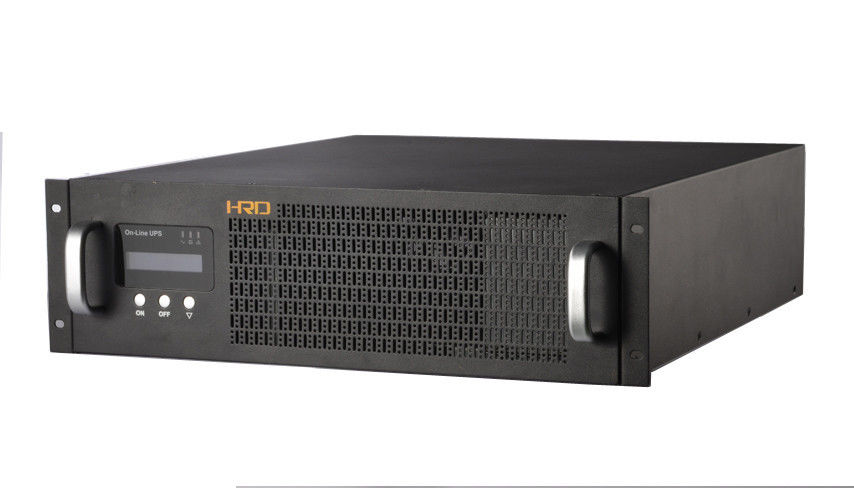

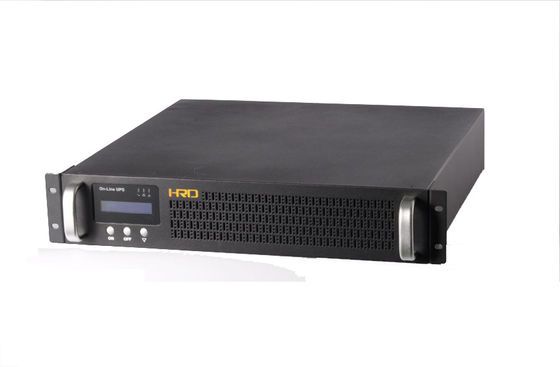

Large Image : Rs232 Or Usb 230v Rack Mount Ups 2kva 3kva Uninterrupted Power Supply

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	OEM/ODM
Certification:	CE
Model Number:	PMR2000S,PMR3000S

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable
Packaging Details:	640570 230 mm(DWH),1pcs/1ctn
Delivery Time:	3 weeks after down payment
Payment Terms:	TT or LC
Supply Ability:	3000pcs/month
Warranty:	18months after shipment, 10 years spare parts support
Price term:	FOB SHENZHEN

Contact Now

Detailed Product Description

Highlight:	uninterruptible power system

Rs232 Or Usb 230v Rack Mount Ups 2kva 3kva Uninterrupted Power Supply

Quick Detail:

1)Smart RS232(USB,SNMP OPTIONAL)

2)Rated voltage: 220v/230v/240Vac or 110/120/120Vac

3)Self-diagnosis system at ups start

Perfect Application:
Computer center, network center, communication system
automatic control system data center or other critical systems.

Main Features:
High frequency and online double conversion
Wide input voltage (110-285Vac or 65-148Vac)
Self-diagnosis system at ups start
Digital control technoloy and advanced PFC
Output PF0.8,(0.9 optional)
Lighting and surge protection 1050j
Generator compatible
Smart RS232(USB,SNMP OPTIONAL)
EMI/RFI noise filter
Overview
With true double-conversion design, PowerMaster series provides powerful and overall protection to your sensitive devices. It can accept wider input voltage for harsh environment. It's perfect protection for your precisous servers and workstaiosn.
Specifications
Model	PMR02S	PM3000S
Capacity	2KVA/1.6kW	3KVA/2.4kW
Phase	Single
Input voltage
Input PF	above 0.98
THDi	less than 5%
Rated voltage	220v/230v/240Vac or 110/120/120Vac
Input voltage range	Low line transfer:176 VAC ± 3% @ 100% load 130 VAC ± 3% @ 50% load 85-148Vac( for 110/120/127Vac)
	Low line comback:188VAC ± 3% @ 100% load 142 VAC ± 3% @ 50% load; 100vac±5Vac(110/120/127Vac)
	High Line Transfer:286 ± 3%148Vac ± 3%(for 110/120/120vac);
	High Line Come Back:271 ± 3%; 145Vac±5Vac(110/120/127Vac)
Rated frequency	50/60hz(auto sensing)
Input frequency range	46~54 Hz ◎ 50 Hz / 56~64 Hz ◎ 60 Hz
By-pass input
Input voltage range	170VAC—270VAC±5V
Frequency following range	46~54 Hz ◎ 50 Hz / 56~64 Hz ◎ 60 Hz
Recharge battery
Floating charge voltage	84VDC
Recharging current	1A(Rack batt.case)
Battery
Battery quantity	6PCS12Vdc7AH	6PCS12Vdc9AH
AC output
Power factor	0.8
Phase	single
Rated voltage	220v/230v/240v+/-1.5%
Frequency	50/60hz
Frequency stability	±0.1HZ(battery inverter)
Voltage stability	within±1.5%( Static)
Crest factor	3:1(max)
Wave distortion	Linear load less 3%,Non-linear load less 5%;
Over load ability	30s when overload is 108%~150%;200ms above 150%;
Transfer time	0ms
Alarm
AC abnomal	Alarm every 4 seconds
Battery low voltage	Keep alarm every 1 second
Overload	Keep alarm every 0.5 second
Failure	Keep alarm
System
Efficiency	above 87%
Display	LCD+LED
Protection	Output short circuit , Overload , Output low voltage, Battery low voltage, Over-temperature etc.
	over-voltage protection,over-tempreture protection for charger PCB,and soft-start function for each function module.
Infterface	RS232(USB OPTIONAL)
Working Temp.	0~40℃
Relative humidity	0~90%( No coagulation)
Cooling	Intelligent speed-control Fan
Input & output	Socket(Optional)
Others
Surge protection	IEC60664—1 Graded protection
EMI	EN 55022 Grade A
ESD	IEC 1000-4-2:Grade 3
EFT	IEC 1000-4-4:Grade 3
RS	IEC 1000-4-3:Grade 3
SURGE	IEC 1000-4-5:Grade 3
Physical
Weight(N/G)kgs	25.0/28.0	28.0/31.0
Unit Size	510* 440 132 mm(DW*H)
Packing Size	640570 230 mm(DWH)
