Wall Mount CCTV Power Supplies with Battery Back-Up , 12VDC 3.5A Power Supply

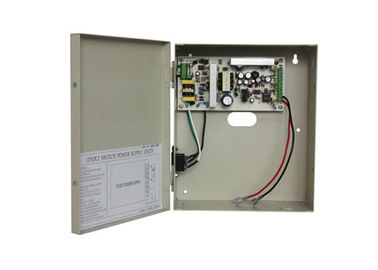

Large Image : Wall Mount CCTV Power Supplies with Battery Back-Up , 12VDC 3.5A Power Supply

Product Details:

Place of Origin:	Hangzhou, China
Brand Name:	Chinasky
Certification:	CE , IEC certified
Model Number:	12VDC3.5A4P/B
Product name:	CCTV Power Supplies
Output voltage:	12V DC
Output current:	3.5A
Power:	80W
Applications:	WUF-GV, PTZ and security camera

Contact Now

Detailed Product Description

Highlight:	cctv camera power supply box

Wall Mount CCTV Power Supplies with Battery Back-Up , 12VDC 3.5A Power Supply

Qucik Details:

1. Output voltage: 12V

2. Output current: 3.5A

3. Power: 80W

4. Output type: 4 channels for 4 sets load and 1CH 13.8V DC 0.5A(UPS)

5. Certification: CE certified , IEC certified

6. Supply type: ODM

Descrition:

12VDC3.5A4P/B: 12VDC 3.5Amp 4 Channel CCTV Power Supply with Battery Back-up

The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.

Features:

Soft starting current, effectively reduce the impact of AC input, independent short-circuit protection and surge protection, resume automatically after clearing of fault, EMI filter, minimum ripple, 100% load test, quality guarantee, high efficiency, low T-rise, continuous duty
12 Volt DC 3.5Amp switch mode power supply
4 individually PTC auto-reset fuses protected outputs with LED
Backup battery: 12V 7AH
Charging Current: 350mA

Switch mode power supply (regulated voltage)
Integral surge protection
Individual LED power indication
Individual PTC reset-able fuses
Internal On/off safety power switch with LED indicator
Beige metal housing

Technical specifications:

Model	12VDC3.5A4P/B
Power	42W
Metal Case Dimension	24.5×20.8×8.7cm
Net Weight	1.65kgs
Input	Input Voltage	88-264VAC
	Input Voltage Frequency	50Hz-60Hz
	Average Input Current	100Vac≤1.6A
	Efficiency	≥80%
Output	Output Voltage	12VDC±5%
	Output Current	3.5A
	Output Ripple Noise(Vp-p)	110mVp-p@25℃/ Rated input voltage & Rated output load
	Reply Time of Starting up	≤3S Input 100Vac, Rated output load
Fuse	Type /Rating	PTC 1.6A/60V
Protection	Over Current Protection	Over current point 10～11A
Protection	Short-circuit Protection	When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.
Charge	The power supply will automatically switch to storage battery if there is outage.
Circumstances	Working Temperature	0℃-+50℃
	Storage Temperature	-20℃-+80℃
	RH	20%-90%
	Heat Release	Natural heat dissipation
Connection	Input	Three-pin socket
Connection	Output	4 channels output
Dielectric Strength	Input to output	1500Vac/60S leakage current≤1.5mA
	Input to FG	1500Vac/60S leakage current≤2.0mA
	FG to output	500Vac/60S leakage current≤1.5mA
Insulating strength	Input to output	≥20MΩ/500VDC@25℃
Leakage Current	≤0.012mA @AC110V(220V)/25℃
RG	≤0.011Ω@DC8V/25A/25℃
