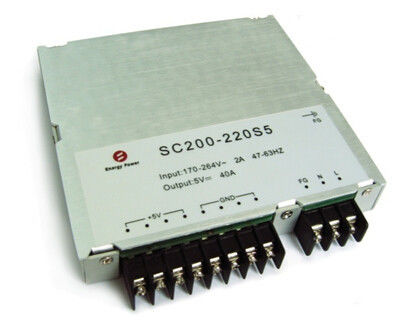

AC-DC Power Supplies 200W Output 5V SC200-220S5
Key Features
AC input range: 170~264Vac
Single outputs: 5V/40A
High efficiency: 89%
Line regulation: ≤±1%
Load regulation: ≤±1%
Low ripple&noise:≤200mV
short circuit protection
Output over current protection
Output short protection
Over temperature protection
Natural cool
RoHS compliant
UL94V-0 flame-retarded rating
Product Overview
This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.
Input Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
Rated input voltage
|
|
220
|
|
Vac
|
|
|
AC input voltage range
|
170
|
|
264
|
Vac
|
|
|
Rated AC input frequency
|
|
50/60
|
|
Hz
|
|
|
AC input frequency range
|
47
|
|
63
|
Hz
|
|
|
Max. input current
|
|
|
2
|
A
|
Min. input voltage, full load
|
|
Efficiency
|
AC input
|
86
|
89
|
|
%
|
Rated input voltage, rated load Figure 1
|
| |
|
|
|
|
|
|
Output Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
|
Output voltage range
|
5V
|
4.95
|
5
|
5.05
|
Vdc
|
|
|
|
Output current range
|
5V
|
0
|
|
40
|
A
|
|
|
|
Line Regulation
|
|
|
±1
|
%
|
|
|
Load Regulation
|
|
|
±1
|
%
|
|
|
Temperature Regulation
|
|
±0.03
|
|
% / °C
|
Over operating temperature range
|
|
Turn off hold up time
|
10
|
|
|
mS
|
220Vac,full load, from Vin turn off to Vout drop to 90%,Figure 4
|
|
Ripple & noise
|
5V
|
|
|
200
|
mV
|
Rated input, full load, 20 MHz bandwidth Figure 5
|
|
Dynamic response
|
Deviation
|
|
|
200
|
mV
|
50% to 75% to 50% Iout max, 0.1A/u
|
|
|
|
200
|
mV
|
50% to 75% to 50% Iout max, 2.5A/us
|
|
Output voltage overshoot
|
|
|
±5
|
%
|
|
|
Output Capacitance
|
|
20000
|
|
μF
|
|
Protection Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
Output over load protection
|
48
|
|
50
|
A
|
Hiccup
|
|
Short – Circuit Protection
|
|
|
10
|
mΩ
|
Hiccup
|
|
Over-temperature protection
|
Shutdown
|
|
105
|
|
℃
|
Auto recovery
|
| |
|
|
|
|
|
|
Notes:
1．+5V will enter hiccup Auto recovery
General Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
MTBF
|
100
|
|
|
KHrs
|
TR-NWT-000332,80% load,300LFM,25℃
|
|
Weight
|
|
|
500
|
g
|
|
Environmental Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
Operating temperature
|
-20
|
|
+55
|
℃
|
|
|
Storage temperature
|
-40
|
|
+85
|
℃
|
|
|
Storage humidity
|
10
|
|
90
|
%
|
|
Safety Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
Isolation voltage
|
Input to output
|
1500
|
|
|
Vdc
|
5mA/1min, No arcing and breakdown
|
|
Input to ground
|
1000
|
|
|
Vac
|
|
Output to ground
|
500
|
|
|
Vdc
|
5mA/1min, No arcing and breakdown
|
|
Isolation resistance
|
Input to output
|
10
|
|
|
MΩ
|
500Vdc/1min, normal atmospheric pressure, 90% humidity
|
Characteristics
|
Item
|
Standards
|
Conditions
|
Notes
|
|
Harmonic
|
EN61000-3-2
|
C type lamps requirements
|
Criterion B
|
|
Voltage fluctuations and flicker
|
EN61000-3-3
|
Class A equipments requirements
|
Criterion B
|
|
Surge
|
EN61000-4-5
|
Differential mode ±2KV,common mode±4KV
|
Criterion B
|
|
DIP
|
EN61000-4-11
EN55024
|
Voltage dip to 0%Ut,10ms
|
Criterion B, test at phase 0, 90, 180 and 270
|
|
Voltage dip to 40%Ut, 20ms
|
|
Voltage dip to 70%Ut,50ms
|
Notes:
Criterion A: Normal performance during and after test.
Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.
Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.
Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.
Environmental Qualification
|
Parameter
|
Notes
|
|
Vibration
|
Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis
|
|
Mechanical Shock
|
Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction
|
|
Cold(in operation)
|
IEC60068-2-1 Ad
|
|
Damp heat
|
IEC60068-2-67 Cy
|
|
Temperature Cycling
|
-20°C to 85°C, ramp 15°C/min., 500 cycles
|
|
Power/Thermal Cycling
|
Vin = 170Vac min to264Vac max, full load, 100 cycles
|
|
Design Marginality
|
Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load
|
|
Life Test
|
95% rated Vin and load, units at derating point, 50000 hours
|
|
Solder ability
|
IEC60068-2-20
|
Standards compliance
|
Standards
|
Notes
|
|
UL60950-1
|
|
|
EN60950-1
|
|
|
EN60601-1
|
|
|
SCA 22.2NO.601.1
|
|
|
UL2601
|
|
|
CSA22.2NO.60950-1
|
|
Physical Information
Mechanical Outline
Length×width×heigth135×125×21(mm),5.315×4.921×0.826(inch),
Connector designations
|
Pin#
|
Name
|
Notes
|
|
1
|
N
|
AC input
|
|
2
|
L
|
AC input
|
|
3
|
FG
|
AC input ground
|
|
4
|
GND
|
Output ground
|
|
5
|
GND
|
|
|
6
|
GND
|
|
|
7
|
GND
|
|
|
8
|
+5V
|
|
|
9
|
+5V
|
|
|
10
|
+5V
|
|
|
11
|
+5V
|
|
Typical Wave and Curves
Figure 1 Efficiency VS output current. 400LFM, 25°C
Figure 2: Output voltage ripple at nominal input voltage and rated load current (20 mV/div). Load capacitance: 1μF ceramic capacitor and 10μF tantalum capacitor. Bandwidth: 20 MHz.
Figure 3: Output voltage response to step-change in load current (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs). Load cap: 10μF, 100 mW ESR tantalum capacitor and 1μF ceramic capacitor. Ch 1: Vout (200mV/div)
Figure 4:Turn off hold up time
