Isolation dual output dc-dc converter Output 24Volt 12Volt SC100-24D2412

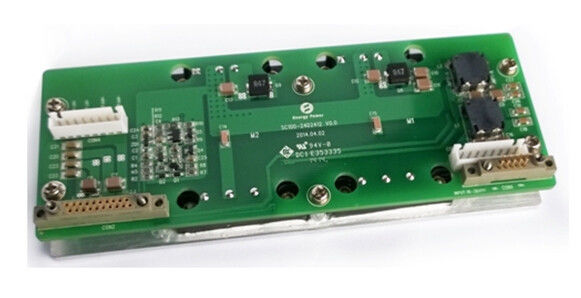

Large Image : Isolation dual output dc-dc converter Output 24Volt 12Volt SC100-24D2412

Product Details:

Place of Origin:	China
Brand Name:	Enargy
Model Number:	SC100-24D2412

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Delivery Time:	1-8 Weeks
Payment Terms:	Negotiation
Supply Ability:	15000Pcs/week

Contact Now

Detailed Product Description

Highlight:	12v ac/dc power supply

AC-DC Power Supplies 100W Output 24V12V SC100-24D2412

Key Features

Input range:18~36Vdc

Dual outputs:24V/2.5A,12V/3.33A

High efficiency:90%

Line regulation: ≤±1%

Load regulation: ≤±1%

Low ripple&noise: ≤±1%

Enable (On/Off) Control

Isolation Voltage :1500Vdc

Hiccup mode short circuit protection

Output over current protection

Natural cool

Product Overview

This DC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency. Aluminum baseplate structure provides extraordinary thermal performance.

Electric Characteristics

Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Input voltage range	18	24	36	Vdc
Max. input current			6.5	A	Min. input voltage, full load
Efficiency		90		%	Rated input voltage, rated load

Output Characteristics

Parameter			Min	Typ	Max	Units	Notes
Output voltage range	24V		23.52	24	24.48	Vdc
Output voltage range	12V		11.76	12	12.24	Vdc
Output current range	24V		0		2.5	A
Output current range	12V		0		3.33	A
Line Regulation					±1	%
Load Regulation					±1	%
Ripple & noise	24V				240	mV	Rated input, full load, 20 MHz bandwidth
Ripple & noise	12V				120	mV	Rated input, full load, 20 MHz bandwidth
Dynamic response	Deviation				±4	%	25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 1A/us
Dynamic response	Settling time				300	uS	To within 1% Vout nom.
Output voltage overshoot					5	%
Output Capacitance		24V			1800	μF
Output Capacitance		12V			3000	μF
Enable Control							External switch

Note: An external switch controls the enable function. Press the switch once under input voltage on condition, the module will power on. Press the switch again, the module will power off.

Protection Characteristics

Parameter		Min	Typ	Max	Units	Notes
Output over load protection	24V	2.75		4.5	A	Hiccup
Output over load protection	12V	3.5		6.5	A	Hiccup
Short – Circuit Protection				10	mΩ	Hiccup

Environmental Characteristics

Parameter	Min	Typ	Max	Units	Notes
Operating temperature	-20		+60	℃
Storage temperature	-40		+85	℃
Relative humidity	20		90	%
Storage humidity	10		95	%
Altitude			3000	m

Safety Characteristics

Parameter		Min	Typ	Max	Units	Notes
Isolation voltage	Input to output	1500			Vdc	1mA/1min, No arcing and breakdown
	Input to ground	1500			Vac	1mA/1min, No arcing and breakdown
	Output to ground	500			Vdc	1mA/1min, No arcing and breakdown
Isolation resistance	Input to output	100			MΩ	500Vdc/1min, normal atmospheric pressure, 90% humidity

Standards compliance

Standards	Notes
MIL-STD-704
MIL-STD-1399
MIL-STD-810
EN60950
GB4943
IEC 61000-4-2

Physical Information

Mechanical Outline

Length×width×heigth:160×60×26(mm), 6.3×2.36×1.02(in),

Isolation dual output dc-dc converter Output 24Volt 12Volt SC100-24D2412 0

Pin designations

Connect/Spec	Pin No.	Name
CON1/CY59T10BJ	1,6	Vin+
	2,3,4,7,8,9	NU
	5,10	VIN-
CON2/CY59Z20BJ	1	24V2(Vout-)
	11	24V2(Vout+)
	2	ON/OFF1
	12	ON/OFF2
	3,4,5,8,13,14,15,18	NU
	6,16	24V1(Vout-)
	7,17	24V1(Vout+)
	9,19	12V(Vout-)
	10,20	12V(Vout+)
