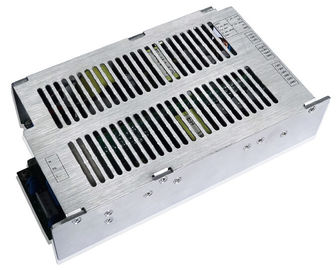

AC-DC Power Supplies 500W Output 30V/12A,5.8V/9A,24V/2.5A,12V/2.5A SC500-220Q30
Key Features
Input range:165~270Vac
Quadruple outputs:30V/12A,5.8V/9A,24V/2.5A,12V/2.5A
High efficiency:87%
Line regulation: ≤±2%
Load regulation: ≤±2%
Short circuit protection
Output over current protection
Output over voltage protection
Input over voltage protection
Input under voltage lock-out
Over temperature protection
RoHS compliant
Natural cool
Product Overview
This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.
Electric Characteristics
Input Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
Rated input voltage
|
|
220
|
|
Vac
|
|
|
AC input voltage range
|
165
|
|
270
|
Vac
|
|
|
AC input frequency range
|
47
|
|
63
|
Hz
|
|
|
Max. input current
|
|
|
3.5
|
A
|
Min. input voltage, full load
|
|
Input inrush current
|
|
|
40
|
A
|
Max. input voltage,25℃, first start
|
|
Efficiency
|
85
|
87
|
|
%
|
Rated input voltage, rated load
|
Output Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
Output voltage range
|
30V
|
24
|
30
|
31
|
Vdc
|
|
|
5.8V
|
5.6
|
5.8
|
6
|
Vdc
|
|
|
24V
|
23
|
24
|
25
|
Vdc
|
Enable on/off
|
|
12V
|
11
|
12
|
13
|
Vdc
|
Enable on/off
|
|
Output current range
|
30V
|
0
|
9
|
12
|
A
|
|
|
5.8V
|
0
|
6
|
9
|
A
|
|
|
24V
|
0
|
2
|
2.5
|
A
|
|
|
12V
|
0
|
2
|
2.5
|
|
|
|
Line Regulation
|
|
|
±2
|
%
|
|
|
Load Regulation
|
|
|
±2
|
%
|
|
|
Temperature Regulation
|
|
±0.02
|
|
% / °C
|
Over operating temperature range
|
|
Ripple & noise
|
30V
|
|
|
400
|
mV
|
Rated input, full load, 20 MHz bandwidth
|
|
5.8V
|
|
|
116
|
mV
|
|
24V
|
|
|
280
|
mV
|
|
12V
|
|
|
240
|
mV
|
|
Turn-on rise time
|
|
|
500
|
ms
|
Full load,10%~90% Vout
|
|
Turn-on delay time
|
|
|
4
|
s
|
220Vac, Full load
|
|
Output voltage overshoot
|
|
|
±5
|
%
|
|
Protection Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
Input under voltage lock out
|
Turn-on voltage threshold
|
155
|
|
165
|
Vac
|
|
|
Turn-off voltage threshold
|
135
|
|
145
|
Vac
|
|
|
Input over voltage protection
|
Protect voltage
|
285
|
|
305
|
Vac
|
|
|
Recovery voltage
|
275
|
|
295
|
Vac
|
|
|
Output over voltage protection
|
30V
|
32
|
|
35
|
Vdc
|
Hiccup
|
|
5.8V
|
|
|
7.5
|
Vdc
|
Hiccup
|
|
Short – Circuit Protection
|
|
|
10
|
mΩ
|
Hiccup
|
|
Over-temperature protection
|
|
|
|
|
Auto recovery
|
|
Input voltage detector
|
150-290Vac convert to 0.5-3.1Vdc linear change
|
Load conditions:
30V/9.5A,5.8V/6A,12V/2A,24V/2A
|
|
Input current detector
|
0-3A convert to 0.5-3.1Vdc linear change
|
| |
|
|
|
|
|
|
|
General Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
MTBF
|
100
|
|
|
KHrs
|
Rated input, full load,25℃
|
|
Weight
|
|
|
1500
|
g
|
|
Environmental Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
Operating temperature
|
-40
|
|
+75
|
℃
|
|
|
Storage temperature
|
-40
|
|
+85
|
℃
|
|
|
Relative humidity
|
10
|
|
90
|
%
|
|
|
Storage humidity
|
10
|
|
95
|
%
|
|
|
Altitude
|
|
|
4000
|
m
|
|
|
Atmospheric pressure
|
70
|
|
106
|
KPa
|
|
Safety Characteristics
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|
Isolation voltage
|
Input to output
|
1500
|
|
|
Vac
|
5mA/1min, No arcing and breakdown
|
|
Input to ground
|
1500
|
|
|
Vac
|
|
Output to ground
|
500
|
|
|
Vdc
|
5mA/1min, No arcing and breakdown
|
|
Isolation resistance
|
Input to output
|
10
|
|
|
MΩ
|
500Vdc/1min, normal atmospheric pressure, 90% humidity
|
|
Leakage current
|
Input to ground
|
|
|
3.5
|
mA
|
264Vac,normal condition
|
EMC Characteristics
|
Item
|
Standards
|
Conditions
|
Notes
|
|
CE
|
EN301489-1-8.4
|
Class B
|
Pass system test
|
|
RE
|
EN301489-1-8.4
|
Class B
|
Pass system test
|
|
Harmonic
|
EN301489-1-8.5
|
|
|
|
Voltage fluctuations and flicker
|
EN301489-1-8.6
|
|
|
|
Surge
|
EN61000-4-5
|
Differential mode ±2KV,common mode±4KV
|
Criterion B
|
|
DIP
|
EN61000-4-11
EN55024
|
Voltage dip to 0%Ut,10ms
|
Criterion B, test at phase 0, 90, 180 and 270
|
|
Voltage dip to 40%Ut, 20ms
|
|
Voltage dip to 70%Ut,50ms
|
Notes:
Criterion A: Normal performance during and after test.
Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.
Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.
Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.
Environmental Qualification
|
Parameter
|
Notes
|
|
Vibration
|
Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis
|
|
Mechanical Shock
|
Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction
|
|
Temperature Cycling
|
-40°C to 55°C, ramp 1°C/min., 6 cycles
|
|
Power/Thermal Cycling
|
Vin = min to max, full load, 100 cycles
|
Mechanical Outline
Length×width×heigth:210×115.5×52(mm), 8.27×4.55×2.05(in),
Connector designAations
CN9 Model: H101-５/3.96
|
Pin#
|
Name
|
|
1
|
L
|
|
2
|
NC
|
|
3
|
PE
|
|
4
|
NC
|
|
5
|
N
|
J2 Model: H101-５/3.96
|
Pin#
|
Name
|
|
1
|
+30V
|
|
2
|
+30V
|
|
3
|
+30V
|
|
4
|
GND
|
|
5
|
GND
|
|
6
|
GND
|
CON1 Model: H101-4/3.96
|
Pin#
|
Name
|
|
1
|
+5.8V
|
|
2
|
+5.8V
|
|
3
|
GND
|
|
4
|
GND
|
J3 Model: H101-3/3.96
|
Pin#
|
Name
|
|
1
|
+12V
|
|
2
|
GND
|
|
3
|
+24V
|
J１
|
Pin#
|
Name
|
Notes
|
|
1
|
GND
|
GND
|
|
2
|
P_30V_CON
|
30V trim
|
|
3
|
P_AC_CON
|
Input voltage detect
|
|
4
|
ID0
|
Connect to GND
|
|
5
|
Cur_Mon
|
Input current detect
|
|
6
|
P_12V_CON
|
12V Enable
|
|
7
|
P_24V_CON
|
24V Enable
|
|
8
|
ID1
|
Connect to GND
|
|
9
|
GND
|
GND
|
|
10
|
GND
|
GND
|
