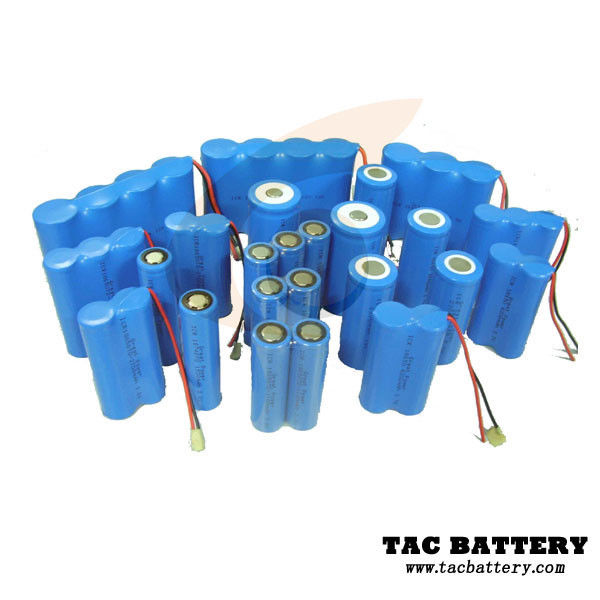

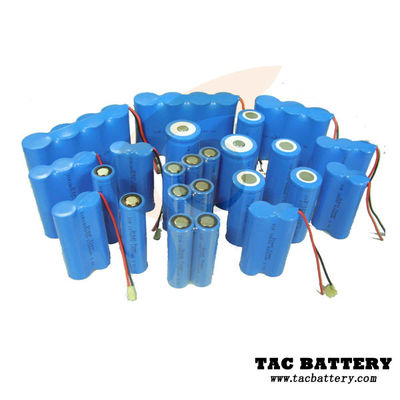

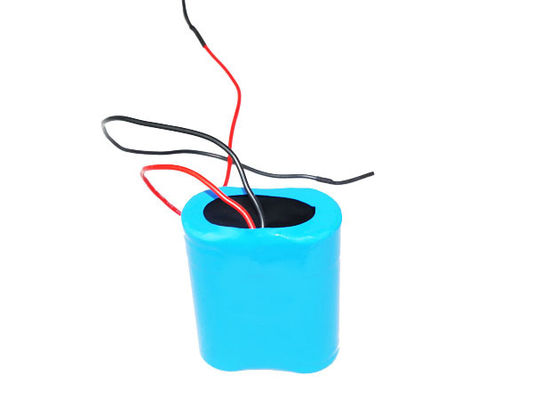

lifepo4 battery pack

No.

Items/

Specifications/

Remark

1

Nominal Capacity

1500mAh

0.2C Standard discharge

2

Minimum Capacity

1400mAh

3

Nominal Voltage

3.2V

Mean Operation Voltage

4

Delivery voltage

3.2~3.3V

Within 10 days from Factory

5

Charge Voltage

3.65V±0.03V

By standard charge method

6

Standard charging method

0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C

7

Charge current

0.2C

300mA

Standard charge, charge time about 6h(Ref)

0.5C

750mA

Rapid Charge, charge time about: 3h(Ref)

8

Standard discharging method

0.2C constant current discharge to2.0V,

9

Cell Internal Impedance

≤60mΩ

Internal resistance measured at AC 1KHZ after 50% charge

Model

Nominal

Internal

Capacity

Cell Size(mm)

Weight

Voltage

Resistance

(mAh)

(g)

(V)

(Max mΩ)

Diameter

Height

LFR18650P

3.2

20

1100

18

65.3

40

LFR26650P

3.2

20

2400

26

65.3

82

Model

Nominal

Internal

Capacity

Cell Size(mm)

Weight

Voltage

Resistance

(mAh)

(g)

(V)

(Max mΩ)

Diameter

Height

LFR14430

3.2

110

250

13.9

43.0

12

LFR14500

3.2

100

650

13.9

50.2

18

LFR15270

3.2

140

200

15.0

27.0

10

LFR18500

3.2

80

1000

18

50

32

LFR18500

3.2

80

1200

18

50

32

LFR18650

3.2

65

1400

18

64.8

39

LFR18650

3.2

65

1500

18

64.8

40

LFR18650

3.2

80

1700

18

64.8

41

LFR26650

3.2

20

3000

26

65.3

84

LFR26650

3.2

20

3200

26

65.3

86

No

Items

Test Method and Condition

Criteria

1

Thermal exposure test

Each fully charged cell, stabilized at room temperature, is placed in a circulating air-convection oven. The oven temperature is raised at a rate of 5 °C/min ± 2 °C/min to a temperature of 130 °C ± 2 °C. The cell remains at this temperature for 10 min before the test is discontinued.

No explosion, No fire

2

Short test

The fully charged battery is to be short-circuited by connecting the positive and negative terminals of the battery with resistance load not exceed 100mΩ.Tests are to be conducted at room temperature 20~25℃.

No explosion, No fire

The Temperature of the Battery surface not exceeded than 150℃

3

Short test

The fully charged battery is to be short-circuited by connecting the positive and negative terminals of the battery with resistance load not exceed 100mΩ.Tests are to be conducted at room temperature about 60-65℃

No explosion, No fire

The Temperature of the Battery surface not exceeded than 150℃

4

Forced discharge test

A discharged cell is subjected to a reverse charge at 0.5C for 150 min.

No explosion, No fire
