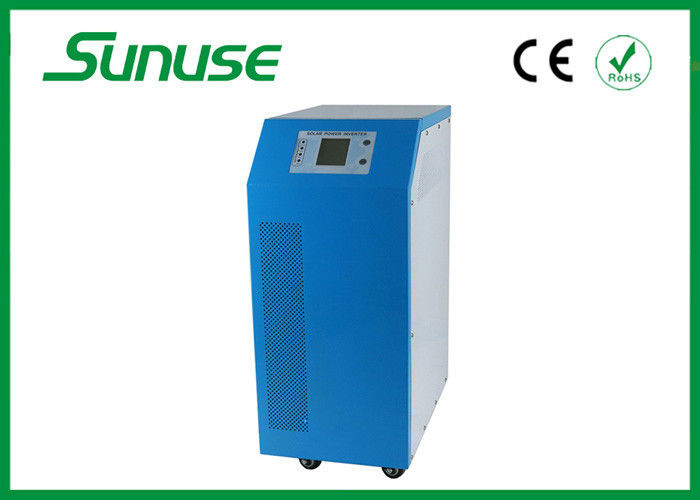

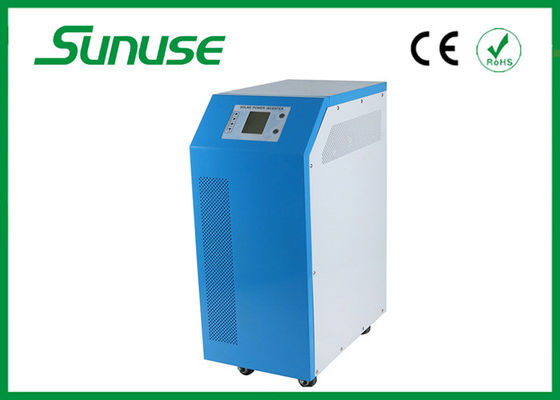

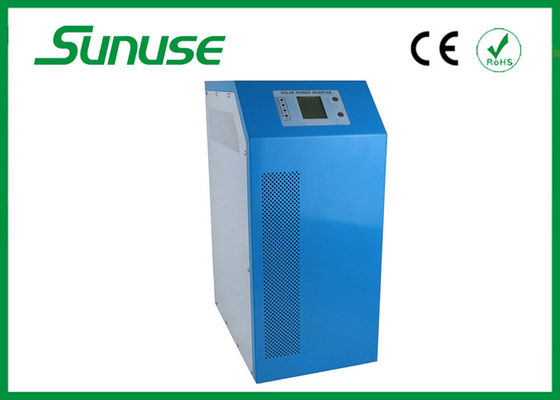

DC 48v To AC 4000w Solar Inverter With Built-in Controller 60a Pure Sine Wave Inverter
Quick Detail:
built-in solar controller;
modular design;
Multifunctional design;
3 kinds of working mode;
LED display;
Specification:
|
Mode
|
6000VA
|
|
Rated Output Capacity
|
4000W
|
|
Peak Power
|
8000W
|
|
Battery Voltage(DC)
|
48V
|
|
PWM Solar Controller
|
Voltage
|
48V
|
|
|
Current
|
60A
|
|
|
PV Max Input Voltage
|
100V
|
|
General Parameter
|
|
Working Mode (Setting)
|
1
|
Utility First, Battery Standby
|
|
|
2
|
Sleep Mode,no utility,load’s power higher than 5% of rated power,
start to work automatically
|
|
|
3
|
Battery first, utility standby
|
|
AC Input
|
Voltage
|
220V±35% or 110V+35%(Optional)
|
|
|
Frequency
|
50Hz±3% or 60Hz±3% (Optional)
|
|
AC Output
|
Voltage
|
220V±3% or 230V±3 or240V±3% or 100V±3% or
110V±3% (Optional)
|
|
|
Frequency
|
50Hz±0.5 or 60Hz±0.5 (Optional)
|
|
Utility charge
|
AC Charge Current
|
0~15A
|
|
|
Charge Time
|
Depend on battery capacity and quantity
|
|
|
Battery Protection
|
Automatic detection, Charge and discharge protection,
Intelligent Management
|
|
PV Charge
|
Total Current of PV Input Should Be Less Than Rated Current
|
Application
1) Off-grid solar power system
2) solar power system with utility power as a complementary
Features
1) Easy to install. To configure a solar system, customers only need to connect it with solar panels and batteries.
2) CPU management and control,modular design
3) LCD display,can visually display various parameters(such as the output voltage, frequency, working mode, etc)
4) Multifunction design,customers don’t need to buy solar, controller, charger and stabilizer,etc.
5) External battery connection, convenient to expand back-up power time; user can connect as many batteries as needed according to the local sunlight and wind.
6) With super load-carrying ability and high load capacity, this series of inverters can not only drive resistance load; but also various kinds of inductive loads, such as motor, air conditioner, electric drills, fluorescent lamp, gas lamp, etc. It can drive almost any kinds of load
7) Low frequency pure sine wave circuit design, good system stability, easy for maintenance, low failure rate and long service life (under proper operation, it may be as long as 5 years)
8) Perfect protection: low voltage protection, over voltage protection, overheat protection, short-circuit protection, overloads protection
9) CE / EMC / LVD/ RoHS /CCC approvals
10) 2 years warranty, life-long technical supports
Function
1) Sole inversion function under inversion mode;
