800W 48V AC & DC Off-Grid Household Solar Power Systems With Inverter

Large Image : 800W 48V AC & DC Off-Grid Household Solar Power Systems With Inverter

Product Details:

Place of Origin:	China
Brand Name:	Zocen Solar
Certification:	CE, ISO9001
Model Number:	ZCOG-800W

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	1pc/carton
Delivery Time:	10-15 days
Payment Terms:	Ex works
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Highlight:	residential solar power system

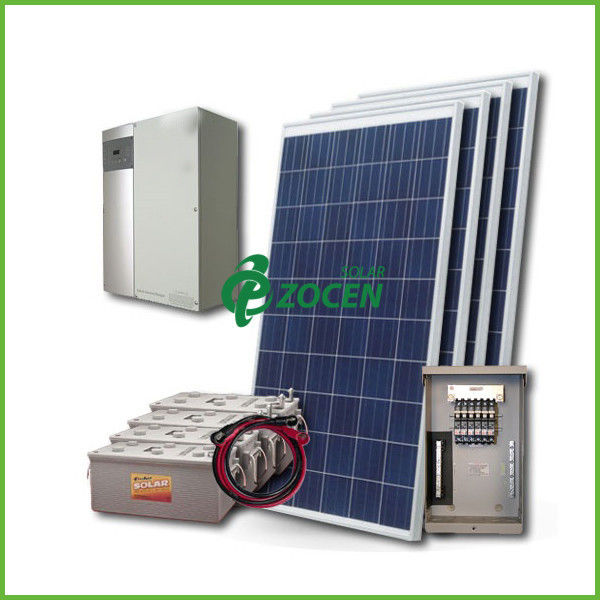

800W 48V AC & DC Off-Grid Household Solar Power Systems With Inverter

1> Quick details

Solar System Type	800W AC Off Grid System	Model	ZCOG-800W
Daily power consumption	2.0-2.4KWH	Backup time	3 days
Inverter	Pure sine wave 800kVA	Solar Panels	840W
Battery	48V 250Ah	Warranty	2 years
Distribution Box	with inverter and controller in	Controller	DC 48V/12A

2> Off-grid solar system features:

No noise or smells, solar operates totally silent
With no fuel consumption, no co2 emission, no air pollution. It's a clean, renewable energy source.
Easy to install and maintenance free.
System can be used for everywhere once there's sunshine. Ideal for remote locations that cannot be tied to the grid
Digital display screen which make output current and voltage visiable, malfunction can be detecated.
Microprocessor intelligent controller functioned with temperature compensation, automatic adjustment of charge and discharge parameters to improve battery life, with over charge, over discharge, overload, short circuit auto protection
110V/220V AC pure sine wave inverter with low distortion of output wave(less than 3%), various of loads available.
More than 20 years lifespan for solar panel and 8 years for the maintenance free lead-acid battery.
Standard structure of solar panel makes installation and transportation easier.

3> Application:

Lamps/TV/Fans/Video/Charger/MP3/MP4/Audio/PSP
Computer/Printer/Copier/Scanner/Screen//Fax
Microwave/fridge freezer/refrigerator/Coffee machine/Washing machine/Baker/Juice machine
Air conditioner/Water pump, etc

800W 48V AC & DC Off-Grid Household Solar Power Systems With Inverter 0

4> 800W Off-grid Solar System Technical data

Item No		ZCOG-800W
Capacity		800VA
System voltage		48VDC
Best output power everyday	Solar Radiation(kWh/m²/d):	2000WH
	Solar Radiation(kWh/m²/d): 5	2400WH
	Solar Radiation(kWh/m²/d): 6	2900WH
Inverter	Output wave	Pure sine wave
	Output voltage	AC110/220V
	Output frequency	50/60HZ
	Capacity	800VA
	Precision of output voltage	±3%
	Precision of output frequency	±0.1%
	False output wave of AC	<3%
	Overload ability	120%, 60 seconds
	Invert efficiency	>85%
Solar Panel	Pmax	760W
	Vmp	75.6V
	Imp	10.05A
	Unit Size(LWH mm)	158080835
	Unit Weight(kg)	15
	Quantity	4
Battery	Capacity	48V250AH
	Unit Size(LWH mm)	520268226
	Unit Weight(kg)	74
	Quantity	4
Controller	Rated voltage	DC 48V
	Rated current	20A
	Control mode	PWM
	Protection	Reverse polarity, overload, reverse charge, etc.
Distribution Box		with inverter and controller in

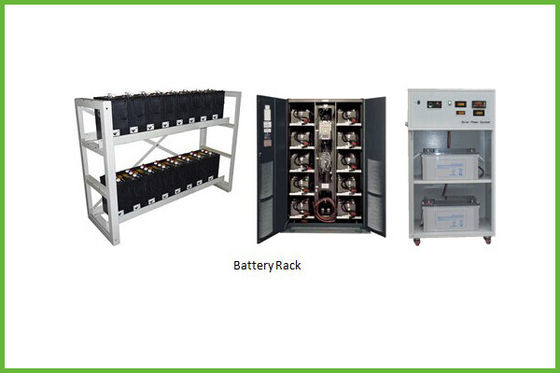

Battery Rack		with all batteries in
Solar Mounting System		Pitch Roof/Flat Roof/Ground Mounting Type

5> Warranties

Whole System: 2 years warranty
Solar panel: 10 years with 100% product material warranty, 25 years 80% rated power putput
Battery: 2 years, Lifespan more than 5 years
Inverter: 2 years
Combiner box: 2 years
Battery rack: 5 years on material
Solar panel bracket: 10 years on material
PV Cables: 10 years
