High Frequency Online UPS

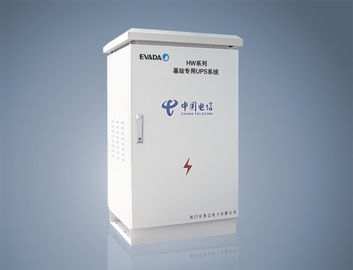

Large Image : High Frequency Online UPS

Product Details:

Place of Origin:	China
Brand Name:	Evada
Certification:	CE,FCC,ISO9001
Model Number:	HW10G/HW20G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1-1000
Packaging Details:	standard
Delivery Time:	3-7days
Payment Terms:	T/T paypal
Supply Ability:	5000/month

Contact Now

Detailed Product Description

Highlight:	Single Phase UPS

High Frequency Online ATM UPS Uninterruptible Power Supply High Power

Applications

Outdoor UPS This product is designed for communications , electricity, railways , airports, defense and other departments designed to eliminate the impact of the grid, surges, interference and other adverse effects of the fall and the communication device caused . When using a unique anti-irrigation noise suppression technology , the battery pack is 220VAC sine wave inverters , will not affect the operation of other communication devices are the ideal communication device " protection of God ."

Features

■ Outdoor Design : Suitable for harsh outdoor environments , the whole rugged sealed , waterproof, dustproof, heat insulation , anti-theft , anti- corrosion, moisture , and a variety of features , ease of installation , and maintenance.

■ Meet the communication AC and DC power supply system standards.

■ AC DC DC AC and use double conversion technology and on-line double conversion technology

■ Excellent overload capacity , no longer need to worry about frequent conversion to bypass .

■ Perfect protection function , whether it is a short circuit , low battery voltage , overheating , the system will automatically protected.

■ Efficient filtering synchronization circuit is fully compatible with the generator .

■ With RS232 interface , the software can be used with a computer monitor UPS operation

Performance indicators

model			HW10G	HW20G		HW30	HW60
rated capacity	(VA)		1000	2000		3000	6000
Output	voltage		220Vac±2% (The inverter state)			220Vac±1%
	Frequency		50Hz±0.1Hz( The inverter state)			50Hz±0.5Hz
	Waveform		Pure Sine Wave
	THD		≤3% (linear load)
	power factor		0.8			0.8
	efficiency ( full load)		>85%			>85%
Input	Frequency		45Hz～55Hz( automatic lock phase)			50Hz±5%
	voltage		160Vac～275Vac			165Vac～275Vac
	DC voltage input		36Vdc	96Vdc		192Vdc
TRANSFER TIME	Mains fail or recover		Zero			Zero
Noise	Distance (1 m)		<50dB(A)			<55dB(A)
Alarm device	Battery Refresh		audio and video alarm
	UPS abnormal		Continuously Sounding		switch to bypass
Automatically start			Undervoltage shut down output, after a mains immediately when the input to the output automatically
DC start			yes
Software settings ON/Off	Auto Start-up		yes
Protection functions	overload		100%～125% load for 60mins		100～125%Maintain 60 seconds turn bypass, ＞125%Immediately turn the bypass
			125%～150%load for30 mins
			150%Immediately turn the bypass
	short circuit protection	Inverter lockout(Shutdown)protection			At the same time to cut off the inverter output and the bypass output
	over temperature				turn bypass
					turn bypass
	overvoltage /low voltageprotection
	Battery over discharge protection	Battery over discharge automatically shut down output
	EMC	Meet GB 9254
Communication		backup powe,low cellvoltage,Remote control grading machine shutdown and real-time monitoring of communication
Working Environment	Temperature	-20～50℃
	Humidity	0~95%(No condensation)
