Pure Sine Wave UPS Power Inverter 1000W - 6000W WITH short circuit

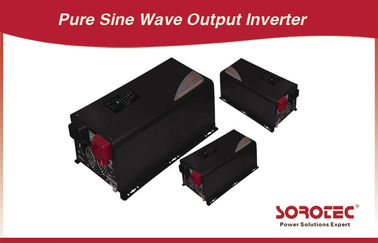

Large Image : Pure Sine Wave UPS Power Inverter 1000W - 6000W WITH short circuit

Product Details:

Place of Origin:	China
Brand Name:	SOROTEC
Certification:	CE,ROHS,ISO9000
Model Number:	IG3115CL 1 - 6KW

Payment & Shipping Terms:

Minimum Order Quantity:	USD10000
Packaging Details:	Standard Exported Cartons and Pallets
Delivery Time:	Within 15-30days after receiving your 30% TT deposit
Payment Terms:	30% TT in advance, the balance before shipping
Supply Ability:	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Contact Now

Detailed Product Description

Output Voltage::	120 / 230	Output Power::	1-6kw
Type:	DC/AC Inverters	Output Frequency:	50HZ/60HZ
Color:	Black	Size(WDH):	598218179mm
Weight(kg): G.W:	16~40KG	Rated Frequency:	50/60HZ
Load Power (W):	1.0
Highlight:	solar powered inverter

Pure Sine Wave UPS Power Inverter 1000W - 6000W WITH short circuit:

Key Features:

1.Pure sine wave output
2.The charging current is big up to 85 Amp
3.Output power factor is 0.9-1
4.Output socket optional
5.Battery type can be select
6.Output voltage and frequency can be set
7.Charge current can adjust
8.Battery temperature sense optional
9.Connect to generator restart function
10.Well accept generator’s output
11.Full automatical and silent operation
12.Automatically transfer between battery and line modes
13.Microprocessor control guarantees high reliability
14.Remote control function
15.Four-steps intelligent charging control to recharging time
16.Bypass function

Full protection:

Protection for low battery voltage,over load,output short circuit and over- temperature restrain surge interference,eliminate noise,
protection for thunder striking,provide the reliable power to the
home appliances.

Applications:

Supply the reliable long back up time power for the home appliances
and office appliances Solar power systems etc.

Back Panel Description :

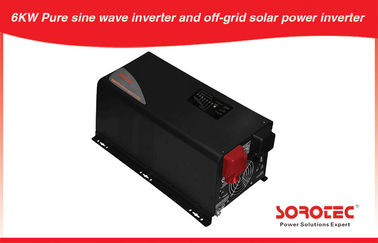

Pure Sine Wave UPS Power Inverter 1000W - 6000W WITH short circuit 0

MODEL	IG3115E 1000-6000W Pure Sine wave Output Inverter
	1000W	1500W	2000W	3000W	4000W	5000W	6000W
Input Wave form	Sine wave (utility or generator)
Nominal Voltage	120Vac 230Vac
Low voltage re trip	90v ±4% & 184v/154v ±4%
Low voltage re engage	100v ±4% & 194v/164v±4%
High voltage re trip	140v ±4% & 253v ±4%
High voltage re engage	135v ±4% & 243v±4%
Max Input AC Voltage	150VAC 270VAC
Nominal Input Frequency	50Hz/ 60Hz (auto detection)
Low freq trip	47Hz for 50Hz,57Hz for 60Hz
High freq trip	55Hz for 50Hz,65Hz for 60Hz
Output Wave form	(Bypass mode)same as input
Over-Load Protection	Circuit breaker
Short circuit Protection	Circuit breaker
Transfer Switch Rating	30Amp or 40Amp
Efficiency on line transfer model	≥95%+
Line transfer time	10ms Typical
Bypass without battery connected	Yes
Max bypass current	30 amp or 40 amp
Bypass over load current	30 amp or 45 amp:Alarm
Inverter specification/output
Output wave form	Pure sine wave
Output continuos power watts	1000	1500	2000	3000	4000	5000	6000
Output continuos power VA	1000	1500	2000	3000	4000	5000	600
Power factor	0.9-1.0
Nominal Output Voltage rms	120/230VAC
Output Voltage regulation	+/- 10%rms
Output frequency	50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification	>88%
Surge ratings	3000	4500	6000	9000	12000	15000	18000
Short circuit protection	Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage	12V		24V			48V
Minimum start voltage	10V		20V			40V
Low battery alarm	10.5V		21V			42V
Low battery trip	10V		20V			40V
High voltage alarm	16V		32V			64V
Power saver	Below 25 watts when enabled
Power saver	Same switched on/off on remote
Charger mode specification	95-127VAC				194-243VAC/164-243VAC(W)
Input voltage range	Dependent on battery type
Output voltage	35A/70A MAX
Charge current	0-15.7v for 12v(2 for 24v;4 for 48v)
Battery initial voltage for start up	15.7v for 12v(2 for 24v;4 for 48v)
Over charge protection shutdown
Charger curves(4stage constant curren)battery types
4 step digital controlled progressive charge
Battery type	Fast V Fast V(2 for 24v;4 for 48v)
Gel U.S.A	14.0 13.7
A.G.M. 1	14.1 13.4
A.G.M. 2	14.6 13.7
Sealed lead acid	14.4 13.6
Gel euro	14.4 13.8
Open lead acid	14.8 13.3
Calcium	15.1 13.6
De-sulphation	15.5 for 4 hrs
Remote control/RS232/USB	Yes. Optional
Size: in mm	3 1000/1500Model:362218179mm³
	2000/3000Model:442218179mm³
	4000/5000/6000Model:598218179mm³
Weight	1000	1500	2000	3000	4000	5000	6000
	16KG	18KG	20KG	22KG	35KG	38KG	40KG

APPLICATION OF OUR PRODUCT

1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip

COMPANY SHOW

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.

WHY CHOOSE US ?

1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

FAQ

1. How to choose suitable inverter?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.

For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.

Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................

2. How do I choose the size of the inverter?

Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.

Notice:

Resistive load: you can choose the same power as the load.

Capacitive loads: according to the load, you can choose 2-5 times power.

Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................

3. How connection between batteries and an power inverter?

We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................

4. How to calculate the load of working hours requires configuration of the battery size?

We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
