LCD 230VAC UPS Power Inverter FCC 50Hz-60Hz Pure Sine Wave

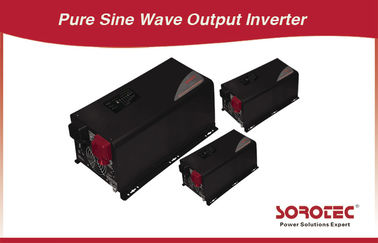

Large Image : LCD 230VAC UPS Power Inverter FCC 50Hz-60Hz Pure Sine Wave

Product Details:

Place of Origin:	China
Brand Name:	SOROTEC
Certification:	CE,ROHS,ISO9000
Model Number:	IG3115C 1000 - 6000W

Payment & Shipping Terms:

Minimum Order Quantity:	USD10000
Packaging Details:	Standard Exported Cartons and Pallets
Delivery Time:	Within 15-30days after receiving your 30% TT deposit
Payment Terms:	30% TT in advance, the balance before shipping
Supply Ability:	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Contact Now

Detailed Product Description

Input Voltage Waveform:	Sinusoidal (utility Or Generator)	Nominal Input Voltage:	230Vac
Low Line Disconnect:	184Vac±4%	High Line Disconnect:	253Vac±4%
Max AC Input Voltage:	270Vrms	Nominal Input Frequency:	50Hz/ 60Hz (Auto Detection)
Transfer Switch Rating:	30A
Highlight:	solar powered inverter

LCD 230VAC Solar Power Inverters FCC 50Hz - 60Hz Sinusoidal

Key Features:

1.Pure sine wave output
2.The charging current is big up to 85 Amp
3.Output power factor is 0.9-1
4.Output socket optional
5.Battery type can be select
6.Output voltage and frequency can be set
7.Charge current can adjust
8.Battery temperature sense optional
9.Connect to generator restart function
10.Well accept generator’s output
11.Full automatical and silent operation
12.Automatically transfer between battery and line modes
13.Microprocessor control guarantees high reliability
14.Remote control function
15.Four-steps intelligent charging control to recharging time
16.Bypass function

Technical Specification of Pure Sine Wave Inverter IG3115c Series:

MODEL	IG3115CL 1-6KW Pure Sine wave Output Inverter
	1KW	1.5KW	2KW	3KW	4KW	5KW	6KW
Input Wave form	Sine wave (utility or generator)
Nominal Voltage	230Vac (120Vac optional)
Low voltage trip	90v ±4% & 184v/154v ±4%
Low voltage re engage	100v ±4% & 194v/164v±4%
High voltage trip	140v ±4% & 253v ±4%
High voltage re engage	135v ±4% & 243v±4%
Nominal Input Frequency	50Hz/ 60Hz (auto detection)
Frequency range	47Hz~65Hz
Output Wave form	(Bypass mode)same as input
Efficiency on line transfer mode	≥95%+
Line transfer time	10ms Typical
Bypass without battery connected	Yes
Inverter specification/output
Output wave form	Pure sine wave
Output continuos power watts	1000	1500	2000	3000	4000	5000	6000
Output continuos power VA	1000	1500	2000	3000	4000	5000	6000
Power factor	0.9-1.0
Nominal Output Voltage rms	230Vac (120Vac optional)
Output Voltage regulation	+/- 10%rms
Output frequency	50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification	>88%
Surge ratings	3000	4500	6000	9000	12000	15000	18000
Short circuit protection	Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage	12V/24V/48V
Minimum start voltage	10V/20V/40V
Low battery alarm	10.5V/21V/42V
Low battery trip	10V/20V/40V
High voltage alarm	16V/32V/64V
Power saver	Same switched on/off on remote
Charger mode specification
Output voltage	Dependent on battery type
Charge current	0-85A MAX
Battery initial voltage for start up	0-15.7v for 12v(2 for 24v;4 for 48v;*8 for 96v)
Over charge protection shutdown	15.7v for 12v(2 for 24v;4 for 48v;*8 for 96v)
Charger curves(4stage constant curren)	battery types
4 step digital controlled progressive charge
Battery type	Fast V Fast V(2 for 24v;4 for 48v)
Gel U.S.A	14 13.7
A.G.M. 1	14.1 13.4
A.G.M. 2	14.6 13.7
Sealed lead acid	14.4 13.6
Gel euro	14.4 13.8
Open lead acid	14.8 13.3
Calcium	15.1 13.6
De-sulphation	15.5 for 4 hrs
Remote control/RS232/USB	Yes. Optional
