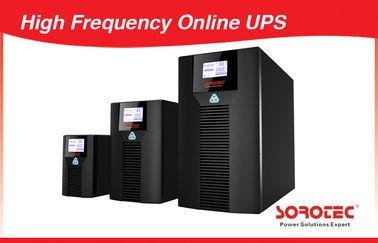

High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design
Key Features:
1. Its cut-edge digital technology of DSP (Digital Signal Professor), can greatly improve the products performance and system reliability, and deliver a compact integration with higher power density ;
2. Output power factor up to 0.8/0.9- applicable to the tendency of future load evolution, and deliver higher payload capacity;
3. Higher payload and overload capability, better load compatibility, and suitable for various load type;
4. Total power factor up to 90% can minimize the power loss of UPS and utilization cost for user;
5.High Scalability: fully meet the customer's demands;
6. Emergency Power Off (EPO): UPS can be instantly shut off in case of any emergency;
7. Powerful Interference immunity capability in compliance with EMC requirements of IEC61000-4, deliver your device a clean electric environment.
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…
Technical Specifications of Online UPS HP9115C 1-3KVA:
|
Model
|
HP9115C 1-10KVA
|
|
1KT
|
1KT-XL
|
2KT
|
2KT-XL
|
3KT
|
3KT-XL
|
|
Rated Power
|
1KVA/800 W
|
2KVA/1600 W
|
3KVA/2400 W
|
|
Rated Voltage
|
220/230/240VAC
|
|
Rated Frequency
|
50/60 Hz
|
|
Input
|
|
Voltage Range
|
115~295VAC(±3VAC)
|
|
Frequency Range
|
50HZ:(46~54HZ);60HZ;(56HZ~64HZ)
|
|
Power Factor
|
>0.98
|
|
Output
|
|
Voltage Regulation
|
220/230/240X (1±2%)VAC
|
|
Frequency Regulation
|
50/60Hz ±0.05Hz
|
|
Power factor
|
0.8 6-10k 0.9/0.8(Optional)
|
|
Voltage distortion
|
Linear load<3% Non-linear load<6%
|
|
Overload
Capability
|
110%~150% for 30s change to bypass model,Recover after load normal
|
|
Current Crest Ratio
|
3:1 max.
|
|
Transfer time
|
0 ms(AC mode→DC mode);(AC mode→Bypass<4ms)
|
|
Battery
|
|
DC Voltage
|
36VDC
|
72VDC
|
96VDC
|
|
Recharge Time
|
5 hours to 90% (it means standard model which battery inside UPS)
|
|
Recharge Current
|
1A
|
4A/8A(Optional)
|
1A
|
4A/8A(Optional)
|
1A
|
4A/8A(Optional)
|
|
Display
|
|
LCD
|
UPS status, input/output voltage and frequency,battery voltage, capacity,load temperature,history records, adjust Voltage, ECO mode
|
|
Communication
|
|
Interface
|
Smart RS232, SNMP (Optional) , USB(Optional)
|
|
Environment
|
|
Operation Temperature
|
0~40°C
|
|
Humidity
|
0~95% non-condensing
|
|
Storage Temperature
|
-25°C~55°C
|
|
Sea level elevation
|
<1500 m
|
|
Noise Level(1m)
|
<45dB
|
<50dB
|
<50dB
|
|
Physical Characteristic
|
|
Weight(KG)
|
N.W.
|
12
|
6.5
|
23
|
10.5
|
31.5
|
14
|
|
G.W.
|
14
|
8
|
25.5
|
13
|
33.5
|
16.5
|
|
Dimensions: ( W x D x H )mm
|
145X335X220
|
109X383 X318
|
190 X433 X318
|
Trendy & Elegant LCD Design for real-time UPS system information:
