1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz

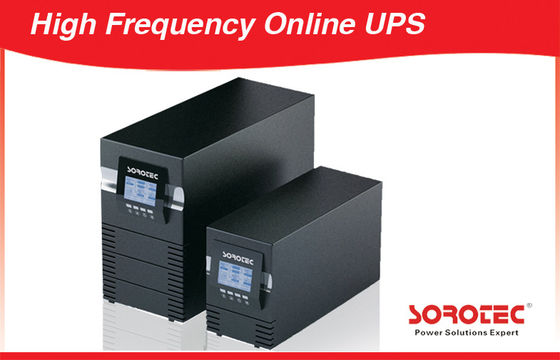

Large Image : 1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz

Product Details:

Place of Origin:	China
Brand Name:	SOROTEC
Certification:	CE,ROHS,ISO9000
Model Number:	HP9116C Series 1 - 3KVA

Payment & Shipping Terms:

Minimum Order Quantity:	USD10000
Packaging Details:	Standard Exported Cartons and Pallets
Delivery Time:	Within 15-30days after receiving your 30% TT deposit
Payment Terms:	30% TT in advance, the balance before shipping
Supply Ability:	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Contact Now

Detailed Product Description

Rated Voltage:	220/230/240VAC	Rated Frequency:	50/60 Hz
Voltage Range:	115～295VAC(±3VAC)	Frequency Range:	50HZ:(46～54HZ);60HZ;(56HZ～64HZ)
Power Factor:	>0.98	Voltage Regulation:	220/230/240X (1±2%)VAC
Frequency Regulation:	50/60Hz ±0.05Hz	Power Factor:	0.7/0.8(Optional) Standard 0.7
Voltage Distortion:	Linear Load<3% Non-linear Load<6%	Operation Temperature:	0～40℃
Highlight:	Three Phase UPS

1, 2, 3 KVA 220V - 240V AC High Frequency Online UPS with RS232, SNMP, USB / 8A 50 - 60 Hz

Key Features:
1.Large blue black light LCD for detailed real-time UPS status display.

2.Pure high frequency online UPS with voltage regulator circuit, which can provide a perfect power protection when UPS working in a poor surroundings.

3.Large blue black light LCD for detailed real-time UPS status display.

4.Comprehensive Electrical isolation and bypass protection.

5.Input PF correction, reduce the harm of harmonic wave to the power grid, it’s convenient to connect mini type generator.

6.Automatic alarm; Self-testing function.

7.Wide Input voltage range.
Input N/L Inspection function and date line protection.

8.DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.

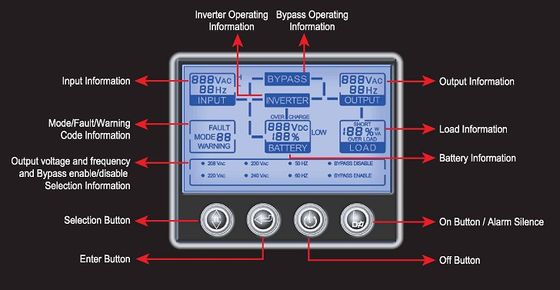

Trendy & Elegant LCD Design for real-time UPS system information:

Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…

Technical Specifications of Power Supply UPS HP9116C 1-3KVA

Model		HP9116C 1-3KVA
		1KT	1KT-XL	2KT	2KT-XL	3KT	3KT-XL
Rated Power		1KVA/700 W		2KVA/1400 W		3KVA/2100 W
Rated Voltage		220/230/240VAC
Rated Frequency		50/60 Hz
Input
Voltage Range		115～295VAC(±3VAC)
Frequency Range		50HZ:(46～54HZ);60HZ;(56HZ～64HZ)
Power Factor		>0.98
Output
Voltage Regulation		220/230/240X (1±2%)VAC
Frequency Regulation		50/60Hz ±0.05Hz
Power factor		0.7/0.8(Optional) Standard 0.7
Voltage distortion		Linear load<3% Non-linear load<6%
Overload Capability		110%～150% for 30s change to bypass model, Recover after load normal
Current Crest Ratio		3:1 max.
Transfer time		0ms(AC mode →Battery mode)
Battery
DC Voltage		36VDC		96VDC		96VDC
Recharge Time		7hrs to 90% of capacity after full load discharge
Recharge Current		1A	4A/8A(Optional)	1A	4A/8A(Optional)	1A	4A/8A(Optional)
Display
LCD		Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface		Smart RS232, SNMP (Optional) , USB(Optional)
Environment
Operation Temperature		0～40℃
Humidity		0～95% non-condensing
Storage Temperature		-25℃～55℃
Sea level elevation		<1500 m
Noise Level(1m)		<45dB		<50dB		<50dB
Physical Characteristic
Weight(KG)	N.W.	14	7	31	13.5	31.5	14
	G.W.	16	9	33	16	33.5	16.5
Dimensions: ( W x D x H )mm		400X145X220		460 X192 X340		460 X192 X340

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice
