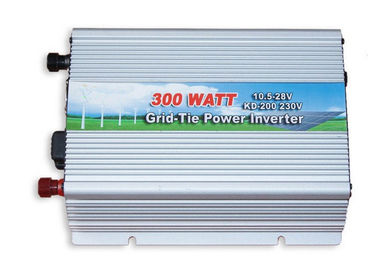

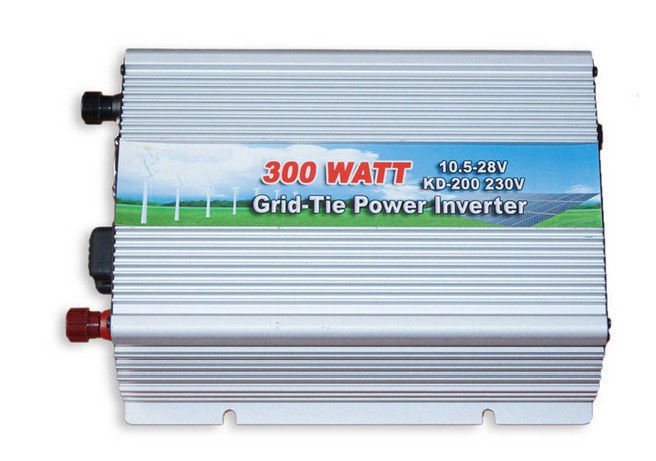

AC / DC Pure sine wave power inverters 300W with MPPT110V / 220V / 230V / 240V
Quick Details
|
Place of Origin: |
China (Mainland) |
Brand Name: |
OEM |
Model Number: |
GTI-300W 220V |
|
Output Power: |
201 - 300W |
Output Type: |
Single |
Size: |
18.7*12.6*5.1CM |
|
Weight: |
0.8Kg (1.8lbs) |
Input Voltage: |
10.8-28VDC |
Output Voltage: |
220V/180V-260V |
|
Type: |
DC/AC Inverters |
Output Frequency: |
60Hz/55-63Hz; 50Hz/45-53Hz |
Output Current: |
0.91A/220V |
|
Maximum power factor: |
>0.99 |
Voltage of solar
panel recommenced:
|
Vmpp 18V |
Recommended
input power(STC):
|
420Watt |
|
PV panels connection: |
Parallel connection |
Certificate: |
CE |
Specifications
--Higher project profitability
--Reduced design costs
--Lower installation cost of energy
--Smart &Safe system
GTI-300W 220V- MIRCOINVERTER TECHNICAL DATA
Microinverter model GTI-300W 220V
Recommended input power(STC) 420W
Input voltage range 10.5-28V
Voltage of solar panel recommenced Vmpp 18V
Maximum output power 300W
Nominal voltage/ range 220V /180V-260V
Nominal frequency/ range 50Hz/45-53Hz
Maximum power factor 0.99
Output wave of microinverter pure/ true sine wave
Stacking using of microinverters higher AC power output
Solar panel in paralleled low /safe DC Volt. & higher DC output
Peak inverter efficiency 92.0%
Night time power consumption < 0.1w
Ambient temperature range -25 to +60
Operating temperature range -40 to +80
Cooling Fan cooling
Enclosure environmental rating Indoor type design
System connection Safe & smart, Plug and play
Communication Power line (WVC only)
Warranty 1-year limited warranty (GTI/ WV series)
3-year limited warranty,15-year service life deign(WVD)
5-year limited warranty, 25-year service life deign (TP / WVC)
Monitoring Free lifetime monitoring via Kaideng software (WVC only)
