2400W Off Grid Solar Inverter With LED / LCD Display Panel

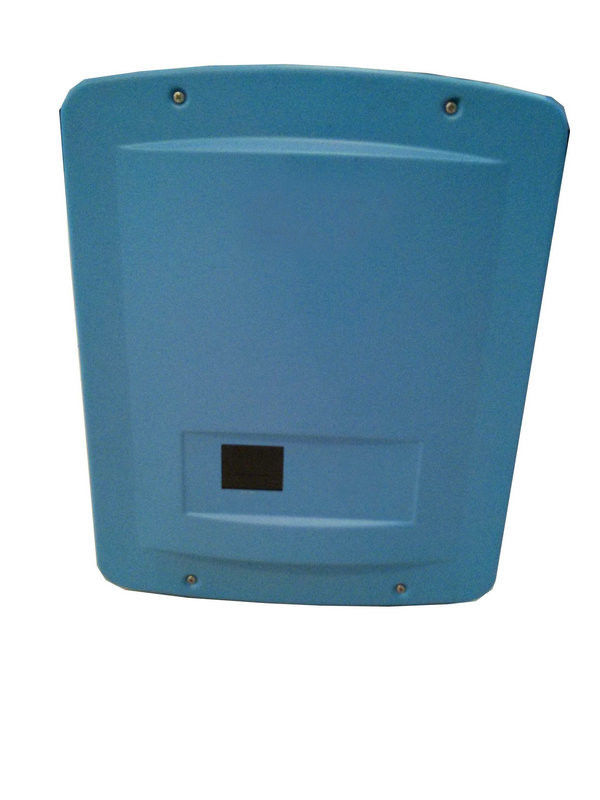

Large Image : 2400W Off Grid Solar Inverter With LED / LCD Display Panel

Product Details:

Place of Origin:	China
Brand Name:	LSG
Certification:	CE,FCC,ISO9001
Model Number:	LSG
Warranty:	3 years
Name:	Off Grid Solar Inverter
Power:	2400W
Battery Voltage:	48Vdc
Display Panel:	LED LCD

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Get Latest Price
Packaging Details:	1pc/carton
Delivery Time:	30 working days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Highlight:	off grid solar inverters

• 2400W off-grid solar inverter with isolated transformer
• Dual AC inputs
• Flexible design for systems from 8 to 80kW
• GSLC load center option allows for quick and easy installation
• Field serviceable modular design
• Grid-interactive and stand-alone capability in the same package
• 120/240V split-phase power
• Unsurpassed surge capacity
• Built on our core FX FET board technology— the industry standard for reliability

Description:

SI series Inverter/Charger is a pure sine wave inverter with inbuilt MPPT charge controller. It can be used in the Grid Interactive/Hybrid system. With the GSF Grid/Hybrid system, solar energy is made available 24 hours a day in the event of a utility outage, providing reliable power and peace-of-mind. At night, battery power, which is charged from the PV/AC, is your power source. With the design of isolated transformer, the inverter not only can take normal household appliance, but also communicating equipments.

Applications:

1.Household appliance
2.Communication station equipments
3.Computer peripheral equipments

Specifications:

Model	SI100	SI500	SI1000	SI1500	SI2000	SI2400
Capacity	125VA	625VA	1200VA	1875VA	2500VA	3000VA
Power	100W	500W	1000W	1500W	2000W	2400W
Battery voltage	12Vdc	24Vdc	48Vdc
Working mode	PV(Photovoltaic priority) / AC(AC priority)Optional
PV
MPPT voltage range	12Vdc--24Vdc	24Vdc-- 45Vdc	48 Vdc - - 90Vdc
PV Current	≤20A	≤40A	≤50A	≤60A	≤80A	≤80A
Max charge current	5A--20A	10A--40A			10A--60A	10A--60A
Conversion efficiency	≥98%
AC Status(option)
Input voltage range	100/110/120/220/230/240Vac±25%(customized)
Input frequency range	45-65 Hz(Auto transfer to inverter power when over frequency)
Output voltage range	100/110/120/220/230/240Vac±10%
Input PF.(AC/DC)	98%
Efficiency	≥96%
Charge current	12A Max( battery discharge ends; Start charging when PV charge current less than the set value)
AC over load	110％ load, after 60s, transfer to bypass,120％ load ,after 30s transfer to bypass, auto recover after decrease load
Short circuit	Input fuse
Inverter Output
Output voltage	100/110/120/220/230/240Vac ± 5%
Output frequency	50 Hz / 60Hz ± 1％ Frequency Adaptive
Output PF	≥0.8
Distortion	Line load≤ 5％
PV-AC transfer time	5Ms typical value Max.8 Ms
Max efficiency	≥84.5%
Inverter overload	110% load 60s shut down,120% load 5s shut down
No load off (Optional)	Load< 5％ after 1min , transfer to bypass mode
Short circuit	System Shut down automatically
Display
Display panel	LED+LCD
Alarm
AC abnormal	Beeping 1/4S, auto. Silence after 40s
Battery Low	5s
Over load	1s
Communication port (optional)	RS232 / USB / SNMP(Setup available for regular start/shutoff)
Mechanical Details
Output sockets	Terminals
Surge protection	Optional
IP class	IP20
Ambient temperature	0℃ ～ 40℃
Ambient humidity	10％～ 90％(Non Condensed)
Noise	≤ 50dB
Certificates	EN62040-2:2006;EA61000-3-2:2006; EA61000-3-3:2008 CE, RoHS
Warranty	Standard 3 years
Unit Weight	10	11	13	18.8	23.7	27
Shipping Weight	10.5	11.8	13.8	20	25	28.2
Inverter Dimensions (H x W x D)	380x195x482
Shipping Dimensions (H x W x D)	520x456x250

Competitive Advantage:

1 Isolated and Pure Sine Wave technique
2.Intelligent No-load auto shutdown technology (optional)
3 Adjustable Charging current
Charging current can be adjusted from 10Amp to 60Amp based on the configured capacity of the battery;
4 Friendly alarm system; LCD+LED display mode
5 Unmatched ability to utilize energy sources with solar , generator and AC.
6. Wide input range; High-speed synchronous conversion; Online protection
7 The system can track the Mains phase automatically, and make sure the inverter output voltage is the completely same as the Mains voltage
8.Unattended and intelligent monitoring, It can communicate with the PC by RS232 or USB interface, It also can realize remote monitoring, testing and regular shutdown/ starting-up operation by SNMP network system.
