5000W Off Grid Solar Inverter For Household appliance , PV / AC Optional

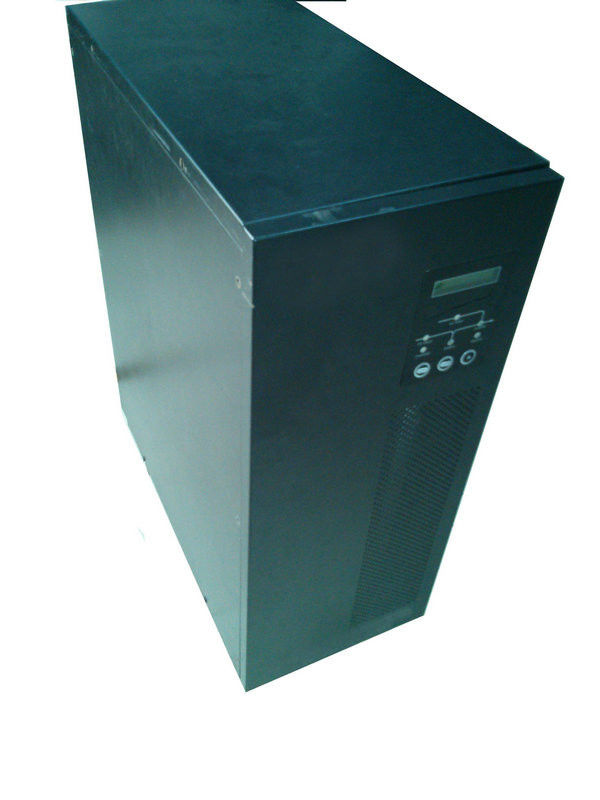

Large Image : 5000W Off Grid Solar Inverter For Household appliance , PV / AC Optional

Product Details:

Place of Origin:	China
Brand Name:	LSG
Certification:	CE,FCC,ISO9001
Model Number:	LSG
Warranty:	3 years
Name:	Off Grid Solar Inverter
Power:	5000W
Battery Voltage:	192Vdc
Display Panel:	LED LCD

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Get Latest Price
Packaging Details:	1pc/carton
Delivery Time:	30 working days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Highlight:	off grid solar inverters

• 5000W off-grid solar inverter with isolated transformer
• GSLC load center option allows for quick and easy installation
• Flexible design for systems from 8 to 80kW
• Dual AC inputs
• Unsurpassed surge capacity
• Grid-interactive and stand-alone capability in the same package
• 120/240V split-phase power
• Field serviceable modular design
• Built on our core FX FET board technology— the industry standard for reliability

Description:

SI series Inverter/Charger is a pure sine wave inverter with inbuilt MPPT charge controller. It can be used in the Grid Interactive/Hybrid system. With the GSF Grid/Hybrid system, solar energy is made available 24 hours a day in the event of a utility outage, providing reliable power and peace-of-mind. At night, battery power, which is charged from the PV/AC, is your power source. With the design of isolated transformer, the inverter not only can take normal household appliance, but also communicating equipments.

Applications:

1.Household appliance
2.Communication station equipments
3.Computer peripheral equipments

Specifications:

Model	SI3000	SI5000	SI6000	SI8000
Power	3000W	5000W	6000W	8000W
Battery voltage	192Vdc
Working mode	PV(Photovoltaic priority) / AC(AC priority)Optional
PV
MPPT voltage range	192Vdc--400Vdc
PV Current	≤40A	≤60A	≤60A	≤80A
Max charge current	10A--40A	10A--40A
Conversion efficiency	≥98%
AC Status(option)
Input voltage range	220/230/240Vac±25%(customized)
Input frequency range	45-65 Hz(Auto transfer to inverter power when over frequency)
Output voltage range	220Vac±5%
Input PF.(AC/DC)	80%
Efficiency	≥90%
Charge current	12A Max
AC over load	110％ load, 225s transfer to bypass;120％ load ,60s transfer to bypass; 150% load,10s transfer to bypass
Short circuit	Circuit Breaker
Inverter Output
Output voltage	220/230/240Vac ± 5%
Output frequency	50 Hz / 60Hz ± 1％ Frequency Adaptive
Distortion	Line load≤ 5％
PV-AC transfer time	≤0s
Max efficiency	≥93%
Inverter overload	110％ load, 225s transfer to bypass;120％ load ,60s transfer to bypass; 150% load,10s transfer to bypass
No load off (Optional)	Load< 5％ after 1min , transfer to bypass mode
Short circuit	System Shut down automatically
Display
Display panel	LED+LCD
Alarm
AC abnormal	Beeping 1/4S, auto. Silence after 40s
Battery Low	5s
Over load	1s
Communication port (optional)	RS232 / USB / SNMP(Setup available for regular start/shutoff)
Mechanical Details
Output sockets	Terminals
Surge protection	Optional
IP class	IP20
Ambient temperature	0℃ ～ 40℃
Ambient humidity	10％～ 90％(Non Condensed)
Noise	≤ 50dB
Certificates	EN62040-2:2006;EA61000-3-2:2006; EA61000-3-3:2008 CE, RoHS
Warranty	Standard 3 years
Unit Weight	60	62	66	85
Shipping Weight	68	70	74	93
Inverter Dimensions (H x W x D)	560X562X725
Shipping Dimensions (H x W x D)	650X355X815

Competitive Advantage:

1. Wide input range; High-speed synchronous conversion; Online protection
2 Isolated and Pure Sine Wave technique
3.Intelligent No-load auto shutdown technology (optional)
4 Friendly alarm system; LCD+LED display mode
5 Adjustable Charging current
Charging current can be adjusted from 10Amp to 60Amp based on the configured capacity of the battery
6 Unmatched ability to utilize energy sources with solar , generator and AC.
7 The system can track the Mains phase automatically, and make sure the inverter output voltage is the completely same as the Mains voltage
8.Unattended and intelligent monitoring, It can communicate with the PC by RS232 or USB interface, It also can realize remote monitoring, testing and regular shutdown/ starting-up operation by SNMP network system.
