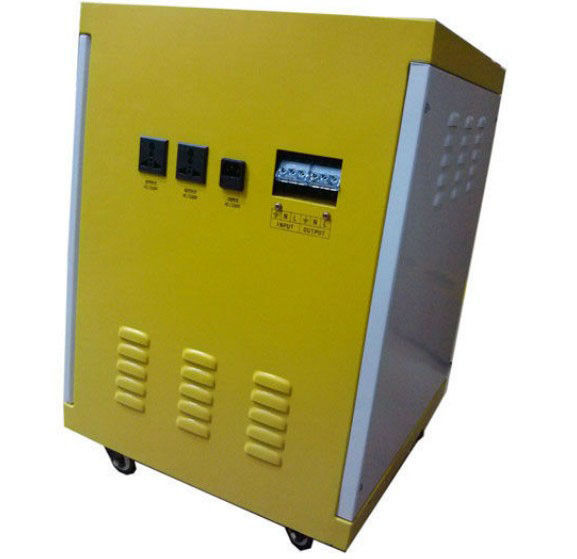

2KW 3KW 5KW 10KW Off Grid Solar Power Systems
Quick Details
|
Place of Origin: |
China (Mainland) |
Brand Name: |
OEM |
Model Number: |
TY-084B |
|
Specification: |
Normal |
Application: |
Home |
Output Voltage (V): |
12V |
|
Load Power (W): |
5000W |
Solar Power (W): |
1600W |
Work Time (h): |
8 |
|
solar panels: |
1600W |
controller: |
30A |
inverter: |
3000W |
|
battery: |
120AH*8PCS |
accessories: |
power box/cables/brackets/battery box
|
feature: |
battery outside power box |
|
daily power consumption: |
6400W-8000W |
warranty: |
full set 1 year |
solar panels warranty: |
5 years |
|
install: |
connect battery cables and fix brackets
|
Specifications
1.3000W Off Grid Solar Power System
2.Suitable family, office, camping events, as well as field works
3.Long lifetime
Introduction
1.1600W home solar power generator
2.home solar generator with low price
3.One year warrenty and good after-service
4.Solar panel:1600W;Lead-Acid battery:960AH/12V;Inverter:3000W;Controller:30A
5.Suitable family, office, camping events, as well as field works
Specification
|
load appliances
|
Specifications
|
Power(W)
|
Quantity(pcs)
|
daily wording time (hrs)
|
daily power
|
|
Lighting
|
|
11
|
8
|
6
|
528
|
|
Computer
|
|
150
|
3
|
5
|
2250
|
|
Refrigerator
|
|
150
|
1
|
24
|
1000
|
|
Color TV
|
19inch(led)
|
40
|
1
|
6
|
240
|
|
Satellite antenna
|
|
25
|
1
|
6
|
150
|
|
Washing machine
|
|
200
|
1
|
1
|
200
|
|
Printer
|
|
30
|
1
|
1
|
30
|
|
Electrograph
|
|
150
|
1
|
1
|
150
|
|
Pump
|
|
200
|
1
|
2
|
400
|
|
Total
|
|
|
|
|
4948
|
|
System Components
Solar panels:1600Wp; Battery: 960AH/12V; Inverter:3000W; Controller:30A.
Power box/brackets/cables
Note:put the battery out of power box
Volume(CBM):1.215 G.W(KG):547
Packing:20sets'CTN
|
Description
1.High conversion efficiency.The system use the high conversion efficiency solar panel, improve the efficiency
from solar power transfer to electricity.
2.The system choose the pure DC supply,reduce the consumption of output.
3.The system choose the pure DC supply,the leakage of electricity will not happen,the voltage is 12V,
the person safty
voltage is 36V,it's lower than the person safety voltage.
4.Choose the high lumen LED,the lumen of the 3w LED is more than 300,the luminance is better than the
40w tube.
5.The whole set is not exceed 10kg,it's very convenience for outside camp.
6.Simple to use,the system choose the terminal connection ,the solar panel use the air plug connection,
don't worry
the installation,you just need to insert the two terminals then it's ok(don't worry that you reverse the terminals.)
7.Hommization design,there is a button on the lamp holder ,which can turn on and turn off the light ,
solve the problem
that you have the turn off the system when you want to turn off the light.
8.Testing before we send the system,the system will be testing through several detections from the
every parts to the
finish products.The defective products will be returned once you find the defective products,and the related person
will make the detail check.
Please Note the Followed Information
1.total daily output power generation 5000W-6550W
2. it takes 1.5-2.2 days to charge a full 960AH battery
3.we have considered one rainny day
4.warranty a full set system 1 year; solar panels 5 years
5.complexed parts have been installed in power box, the only solar brackets, we will offer you direction.
It's the most important that the solar panels have to be fixed without the trees and buildings covered.
No matter the flat
